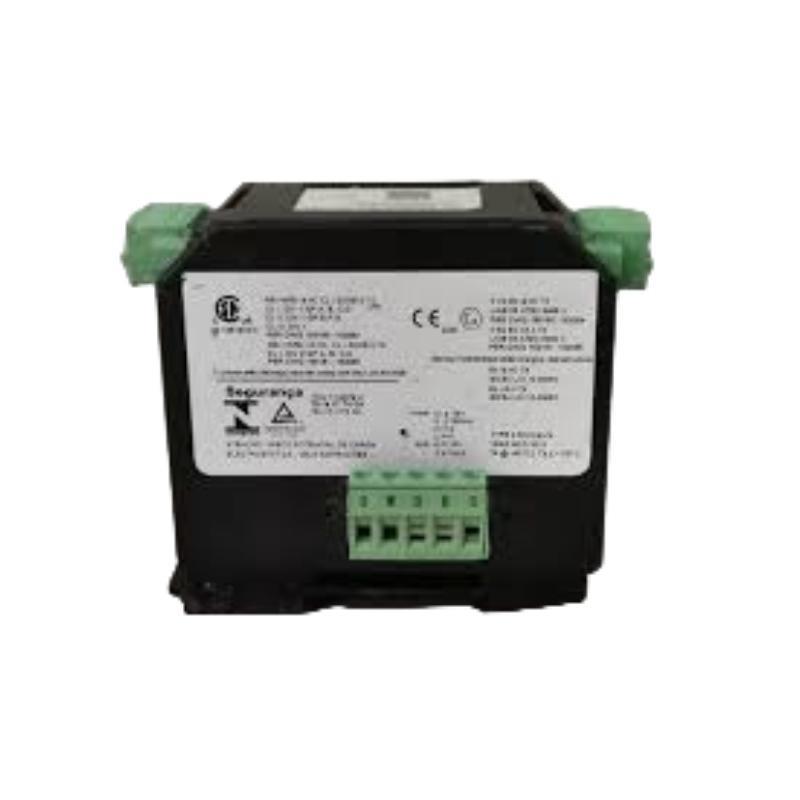

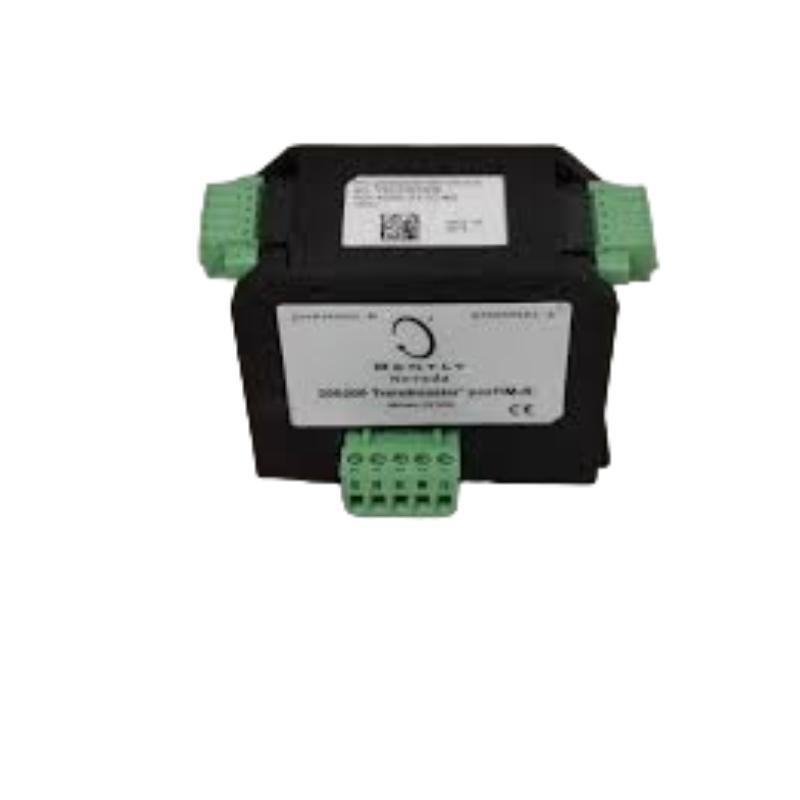

Bently Nevada 200200-01-01-05 Dual‑input condition monitor (DIN‑rail mounted) 30-Day Returns！

FAQ

What is the core function of the 200200‑01‑01‑05 ProTIM‑R?
It is a dual‑channel condition monitor that processes sensor signals (acceleration, velocity, displacement, temperature) and supplies conditioned outputs for analysis, trending or alarm logic.

What variety of input types does each channel accept?
Each channel supports multiple input modes including acceleration‑to‑velocity, low‑frequency A‑V, acceleration + enveloping (AE), thermocouples, RTDs, displacement, and Keyphasor signals.

What is the velocity range and resolution of the A‑V mode?
The velocity mode supports 0 to 50 mm/s peak, with over‑range to 63 mm/s. The resolution is 0.025 mm/s (0.001 in/s).

What frequency response is available in standard A‑V mode?
The standard A‑V channel operates from 10 Hz to 1 kHz, with ±20 % (±2 dB) tolerance.

What physical size and weight does the unit have?
It measures approximately 86.2 mm × 79.0 mm × 100.9 mm and weighs about 0.84 kg (1.85 lbs).

What are its environmental operating limits?
It functions from –20 °C to +70 °C ambient temperature.

What sort of electrical isolation and protection is included?
It provides electrical isolation between channels, is built to withstand up to 300 Vrms, and features engineered capacitance limits to maintain signal integrity.

In what types of systems is the ProTIM‑R module used?
It is used in industrial and rotating machinery condition monitoring systems (e.g. turbines, compressors, pumps), particularly where multi‑parameter monitoring (vibration, displacement, temperature) is required.
