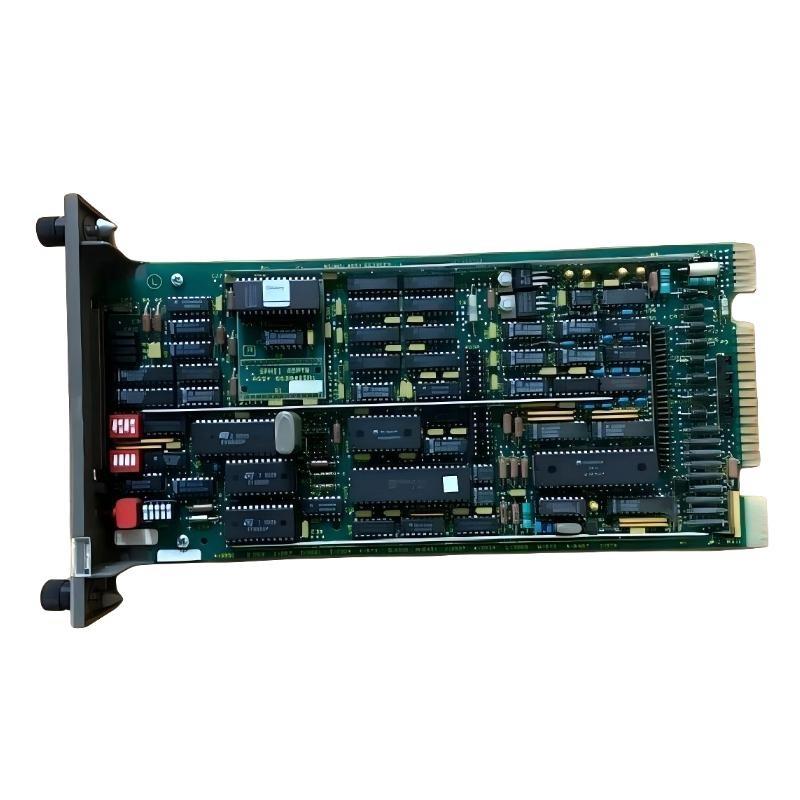

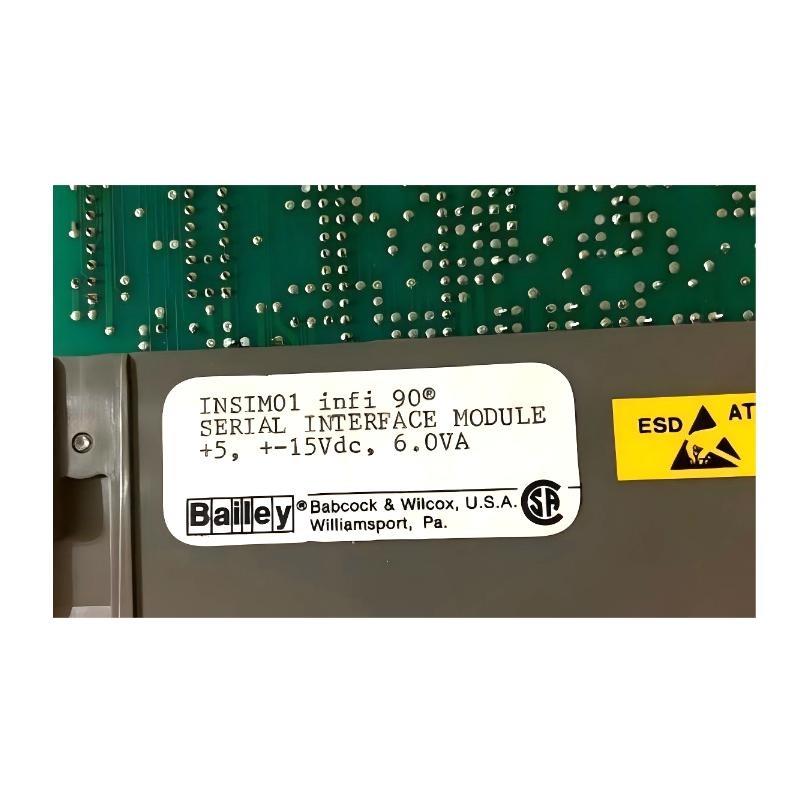

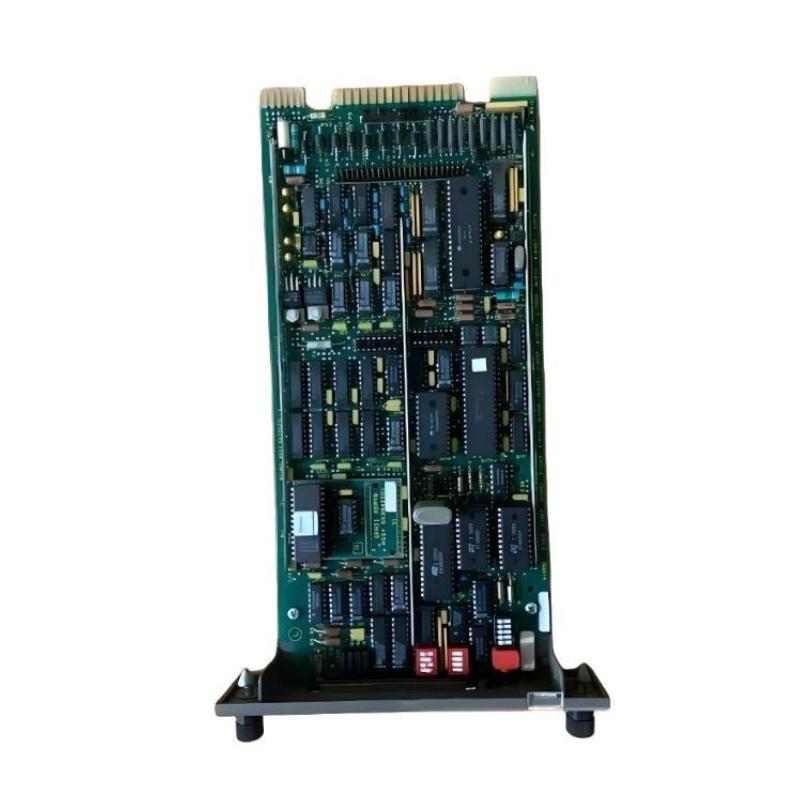

ABB Bailey INSIM01 Serial Interface Module 12-Month Warranty

FAQ

What is the main purpose of the INSIM01 module?
The INSIM01 serves as a serial interface module to connect ABB Bailey control systems with peripheral devices via standard serial communication protocols.

Which serial protocols are supported by the INSIM01?
It supports RS-232, RS-485, and Modbus RTU protocols for flexible device integration.

What is the range of baud rates available on the INSIM01?
The module supports baud rates from 1200 to 115200 bps.

How does the INSIM01 handle data formatting?
It allows configuration of 7 or 8 data bits, 1 or 2 stop bits, and parity options including None, Even, or Odd.

Does the INSIM01 provide electrical isolation?
Yes, it provides 500 V DC isolation between serial ports and the control bus for safe and noise-free operation.

Does the module include diagnostic features?
Yes, it includes error detection and link monitoring to ensure reliable communication.

What environmental conditions can the INSIM01 operate under?
It operates reliably between 0°C and 60°C and in humidity levels from 5% to 95% non-condensing.

What power supply does the INSIM01 require?
The module requires a 24 V DC power supply with an acceptable range of 18–32 V DC.
