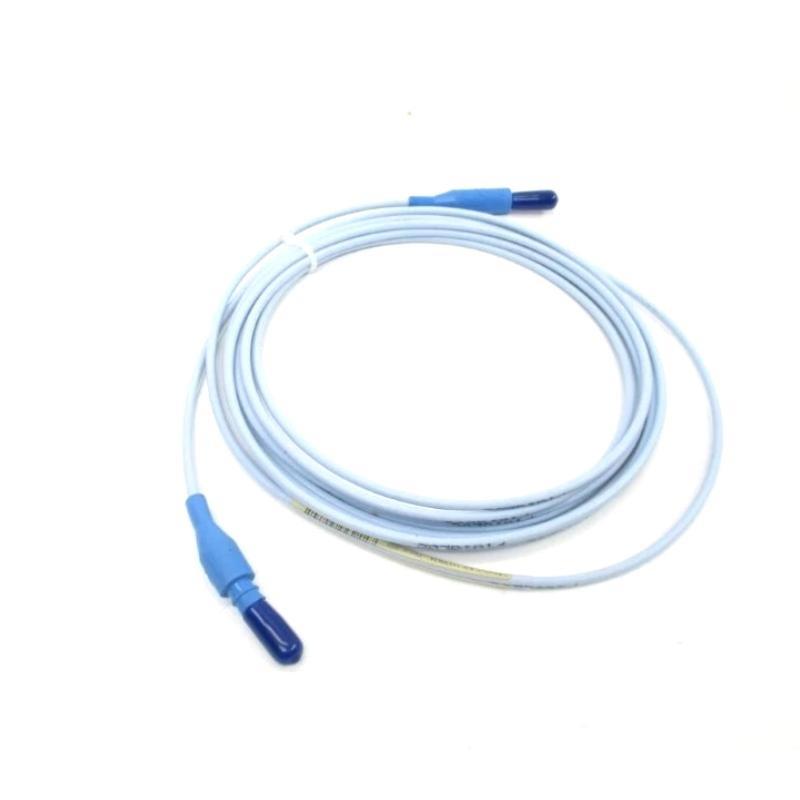

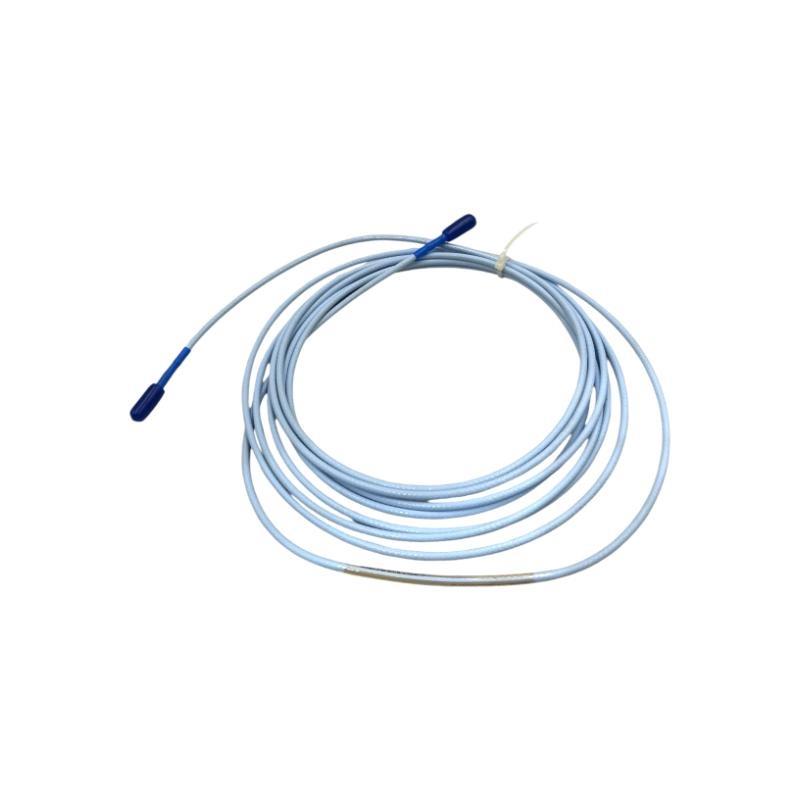

Bently Nevada 330130-075-02-05 3300 XL Standard Extension Cable Original

FAQ

What is the main function of the 330130‑075‑02‑05 extension cable?
It links a 3300 XL proximity probe or Proximitor sensor to the monitoring system, allowing flexible sensor placement and reliable signal transmission in industrial vibration and shaft displacement measurement systems.

What does the suffix “075‑02‑05” in the part number mean?
“075” denotes the cable length of 7.5 meters; “02” indicates the standard cable with connector protector option; “05” signifies CSA, ATEX, and IECEx approvals for hazardous environments.

Is this cable compatible with other Bently Nevada systems?
Yes, it is designed for the 3300 XL transducer system and works with 8 mm proximity probes and Proximitor sensors as part of condition monitoring systems.

What is the electrical capacitance of this cable?
The typical capacitance is about 69.9 pF per meter (21.3 pF per foot).

What voltage supply range does it require?
It functions with a DC supply roughly from -17.5 Vdc to -26 Vdc in non‑incendive applications.

What type of environments can this cable be used in?
With CSA, ATEX, and IECEx certifications, the cable is suitable for use in hazardous industrial areas with vibration and process monitoring demands.

How important is the cable weight for installation?
At around 0.618 kg assembled weight, it should be considered when planning routing and support, especially in constrained spaces or long‑run installations.

Can this extension cable support long field wiring runs?
Yes, it supports connection with shielded 16–24 AWG triad field wiring up to about 305 meters (1 000 feet) to maintain signal integrity.
