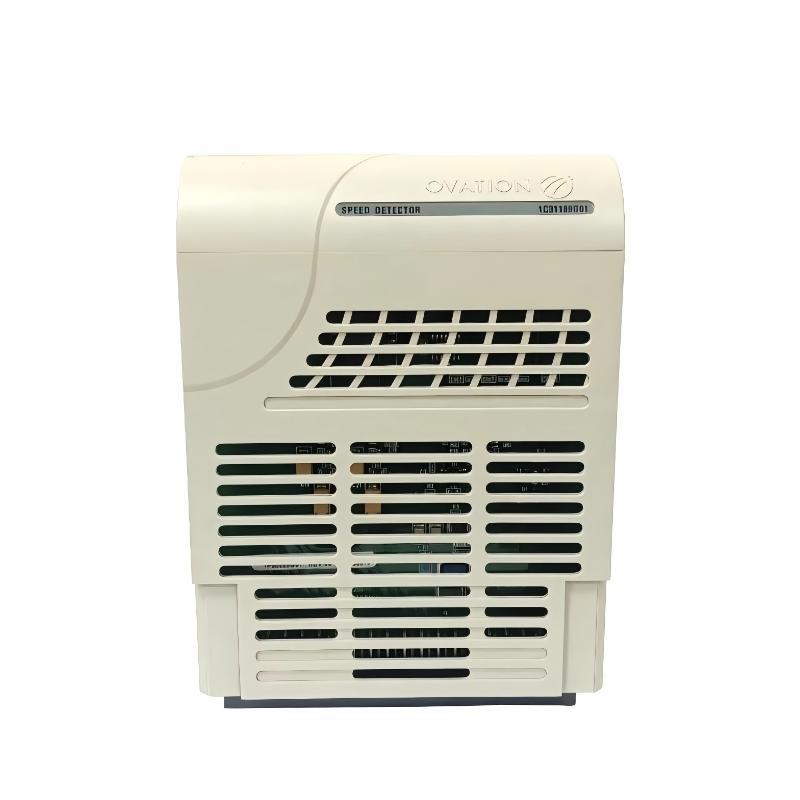

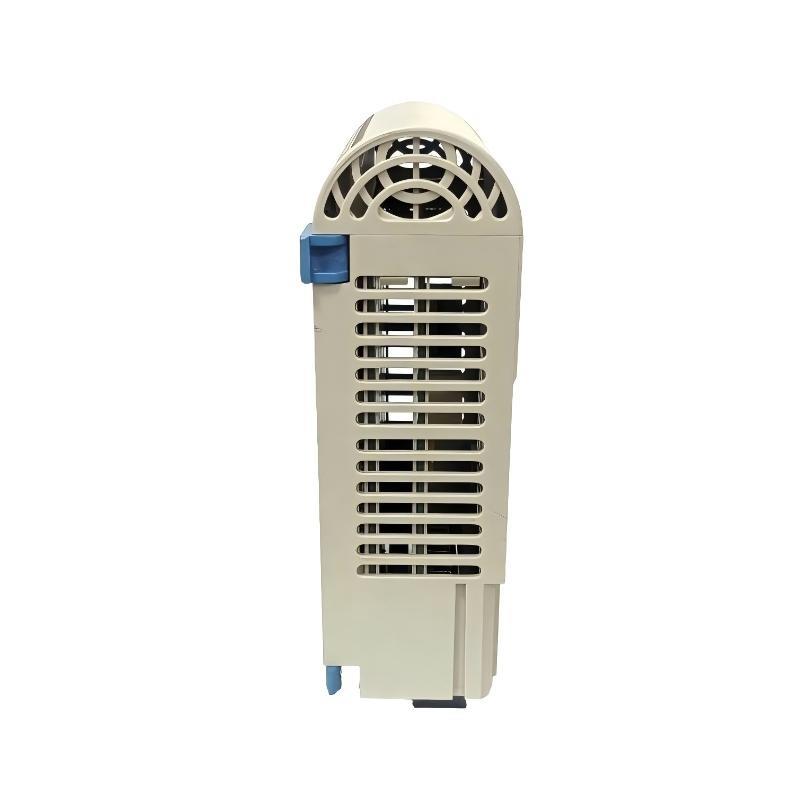

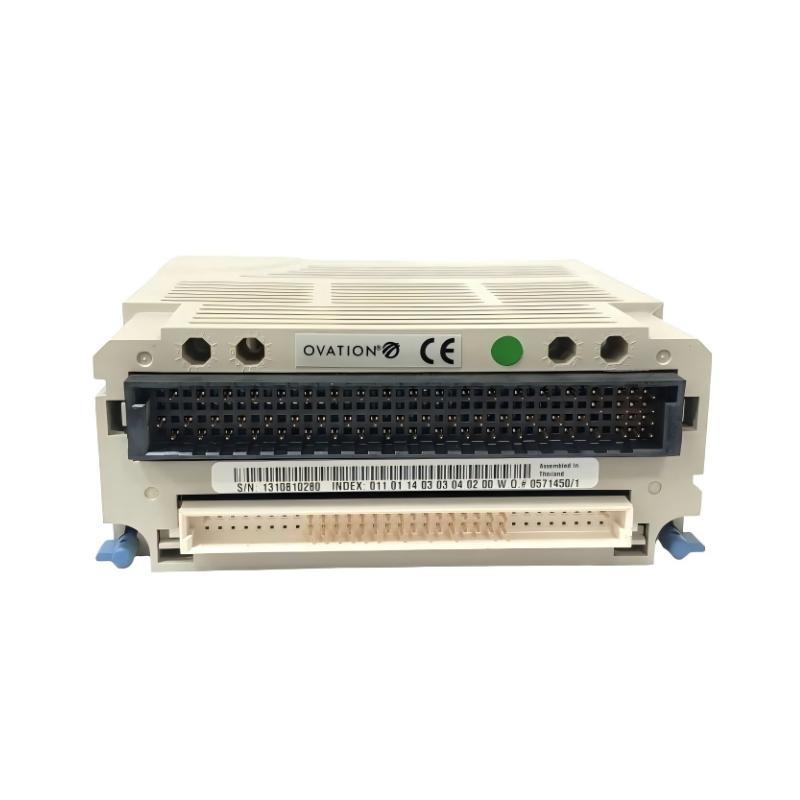

Ovation 1C31189G01 Speed Detector Interface Module 12-Month Warranty

FAQ

What is the main function of the Ovation 1C31189G01 module?
The 1C31189G01 interfaces with speed sensors, converting rotational signals into digital speed data for the Ovation control system to monitor and control rotating equipment.

What types of input signals does the module support?
It supports contact closure, TTL pulses, and 24 VDC pulse signals, providing flexibility for a variety of speed sensors.

How many speed channels are available on this module?
The module provides 2 independent speed sensor channels, allowing monitoring of multiple rotating devices simultaneously.

What is the maximum counting frequency the module can handle?
Each channel can process signals up to 20 kHz, making it suitable for high-speed applications.

How is the speed data represented digitally?
Each channel uses a 32-bit counter to accurately accumulate pulses and provide precise speed measurement for the control system.

Does the module include diagnostic features?
Yes, it provides sensor fault detection, signal integrity monitoring, and communication status to ensure reliable operation.

How does the module integrate with the Ovation control system?
It connects directly to the Ovation system backplane, transmitting processed speed data to the central controller for display and control.

What environmental conditions can the 1C31189G01 operate in?
The module is designed for industrial environments, functioning reliably between 0°C and +60°C with humidity up to 95% non-condensing.
