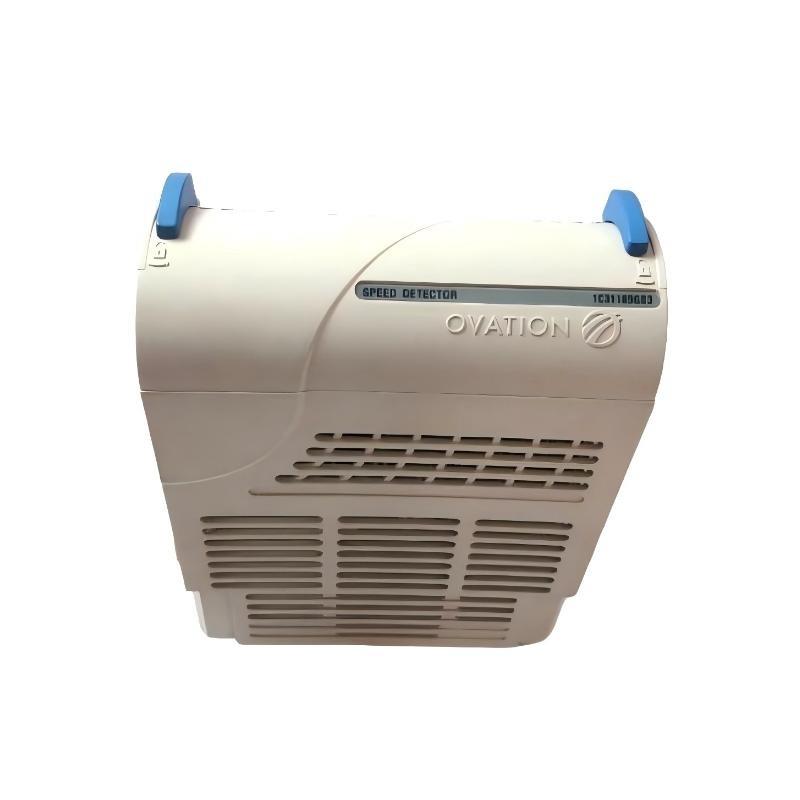

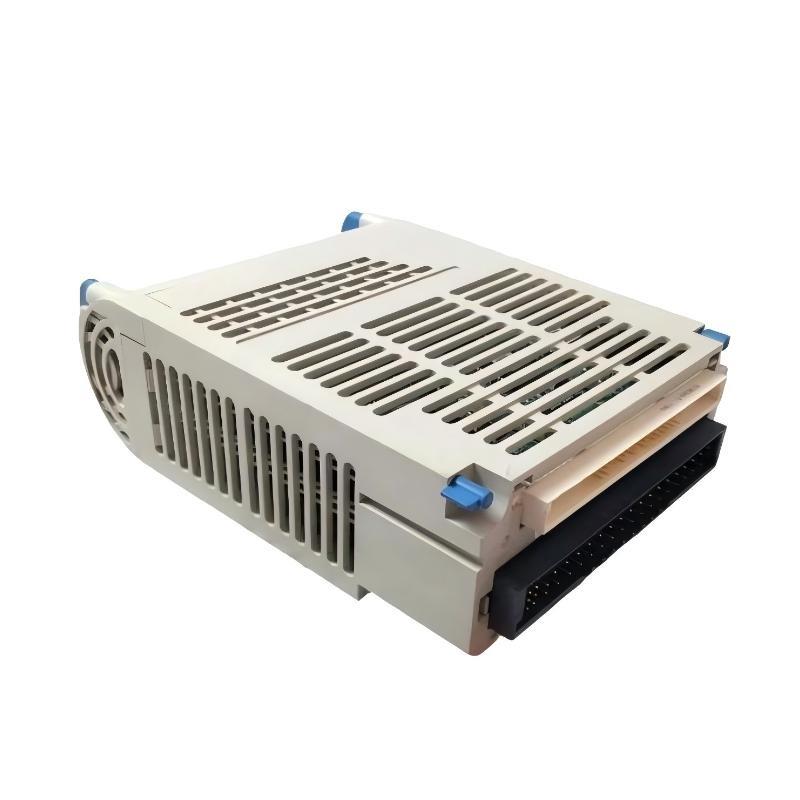

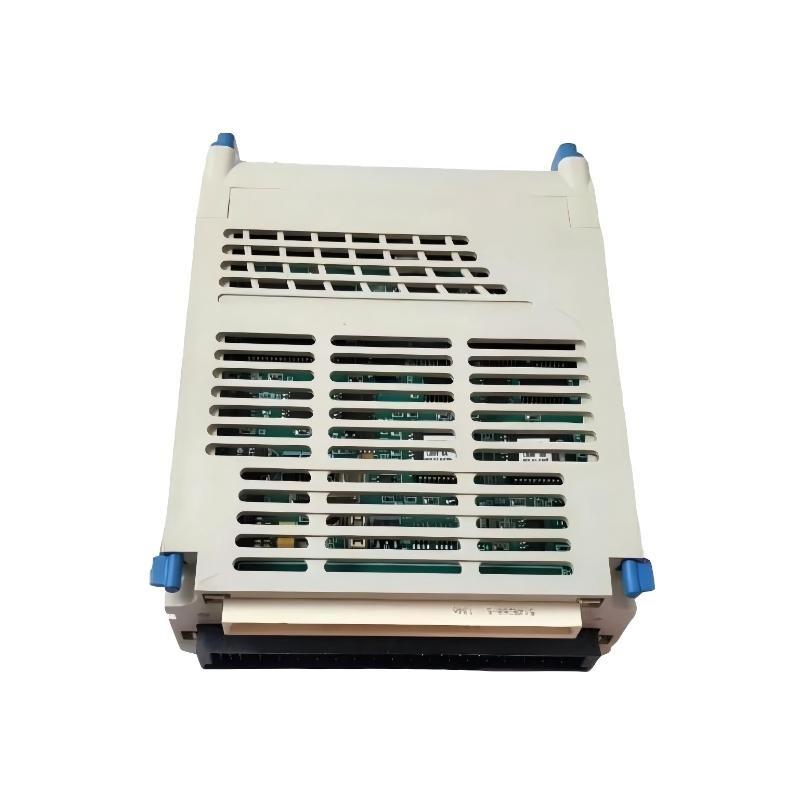

Ovation 1C31189G03 Speed Detector Module 12-Month Warranty

FAQ

What is the main function of the Ovation 1C31189G03 module?
The 1C31189G03 detects rotational speed from field sensors and converts these signals into digital data for the Ovation control system to monitor and control rotating machinery.

What types of input signals are supported by this module?
It supports contact closure, TTL pulses, and 24 VDC pulse signals, accommodating a wide range of industrial speed sensors.

How many speed channels does the module provide?
The module offers 2 independent speed sensor channels, enabling monitoring of multiple rotating devices simultaneously.

What is the maximum counting frequency the module can handle?
Each channel can handle input signals up to 20 kHz, suitable for high-speed machinery applications.

How is speed data represented digitally in this module?
Each channel uses a 32-bit counter to accumulate pulses, providing precise and reliable digital speed data for the control system.

Does the module include diagnostics?
Yes, it provides sensor fault detection, signal integrity monitoring, and communication status reporting to ensure reliable operation.

How does the 1C31189G03 interface with the Ovation system?
The module connects directly to the Ovation system backplane, transmitting processed speed data to the central controller for monitoring and control.

In what environmental conditions can the 1C31189G03 operate?
The module is designed for industrial environments, operating reliably within 0°C to +60°C and tolerating humidity up to 95% non-condensing.
