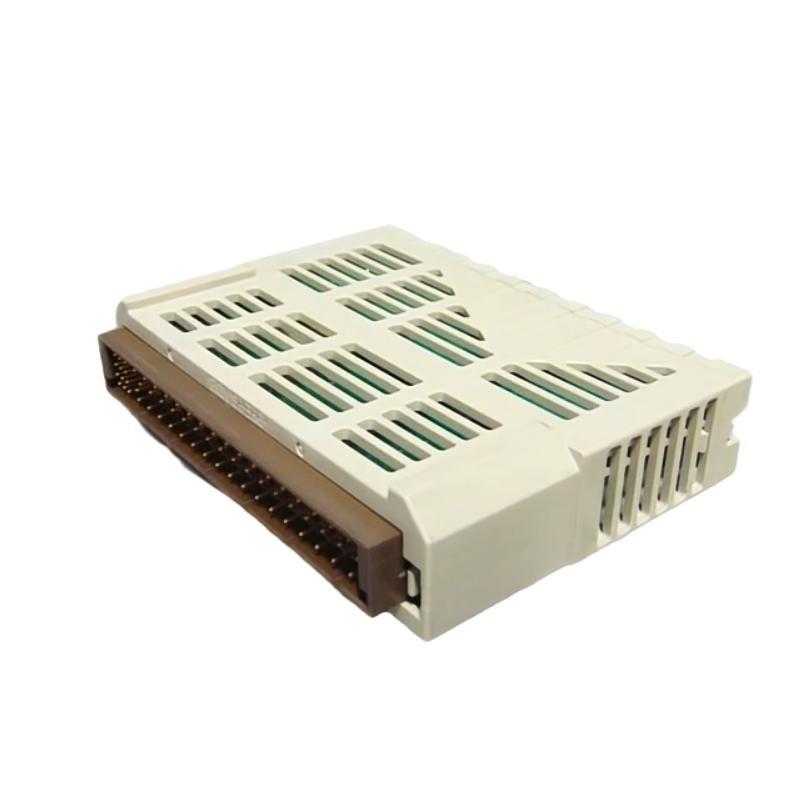

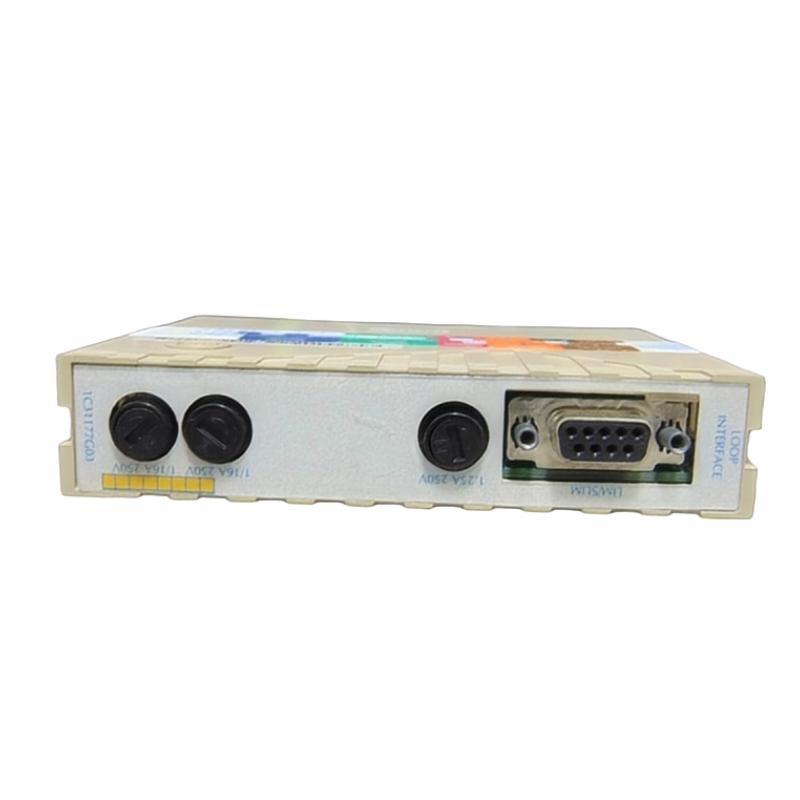

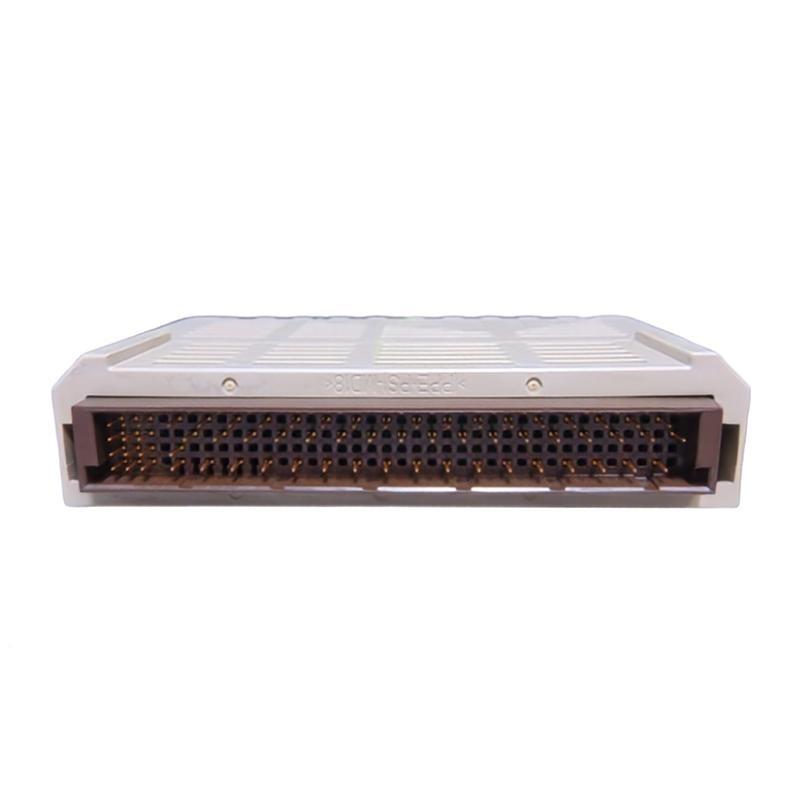

Ovation 1C31177G03 Loop Interface Module Original

FAQ

What is the primary function of the Ovation 1C31177G03 module?
The 1C31177G03 serves as a loop interface, connecting analog control loops from field devices to the Ovation control system and converting signals for proper communication.

How many input and output channels are provided by this module?
The module provides 4 analog input channels and 4 analog output channels, enabling integration of multiple control loops.

What types of analog signals does the module support?
It supports both current (4–20 mA) and voltage (0–10 VDC) signals for inputs and outputs, allowing flexibility for various field devices.

How accurate is the signal conversion in the 1C31177G03?
The module provides high accuracy of ±0.1% of full scale, ensuring reliable signal transmission between the field devices and the control system.

Does the module provide electrical isolation?
Yes, each channel is isolated up to 1500 V RMS from other channels and the system bus, reducing interference and enhancing operational safety.

Are there diagnostic features included in this module?
Yes, the module monitors loop integrity, detects channel faults, and provides communication status to support reliable operation and maintenance.

How does the 1C31177G03 integrate with the Ovation system?
It connects directly to the Ovation system backplane, allowing seamless data exchange between analog loops and the control system.

In what environmental conditions can the 1C31177G03 operate?
The module is designed for industrial environments, operating reliably from 0°C to +60°C with humidity up to 95% non-condensing.
