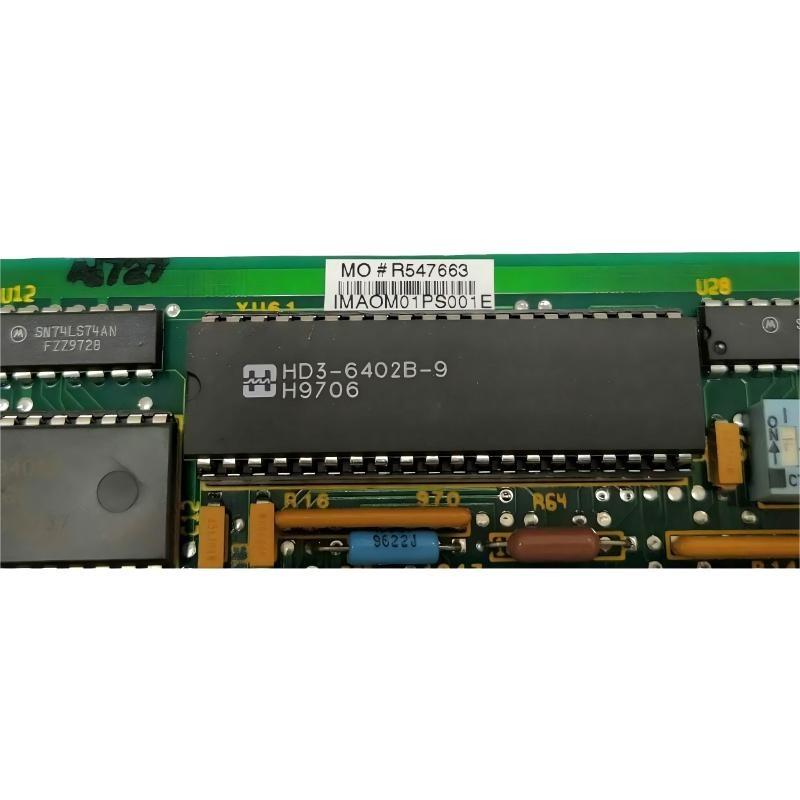

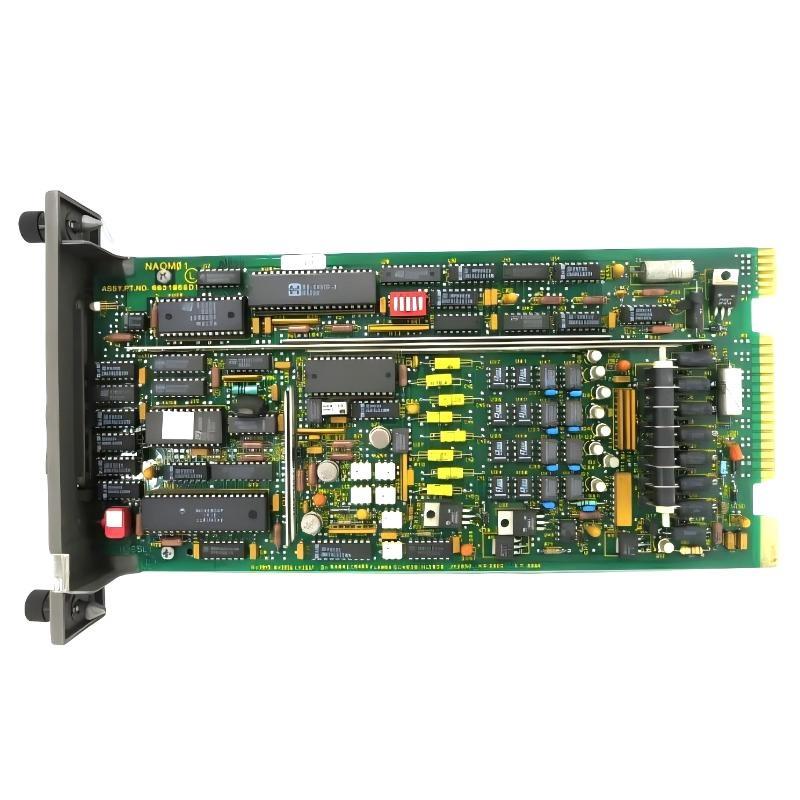

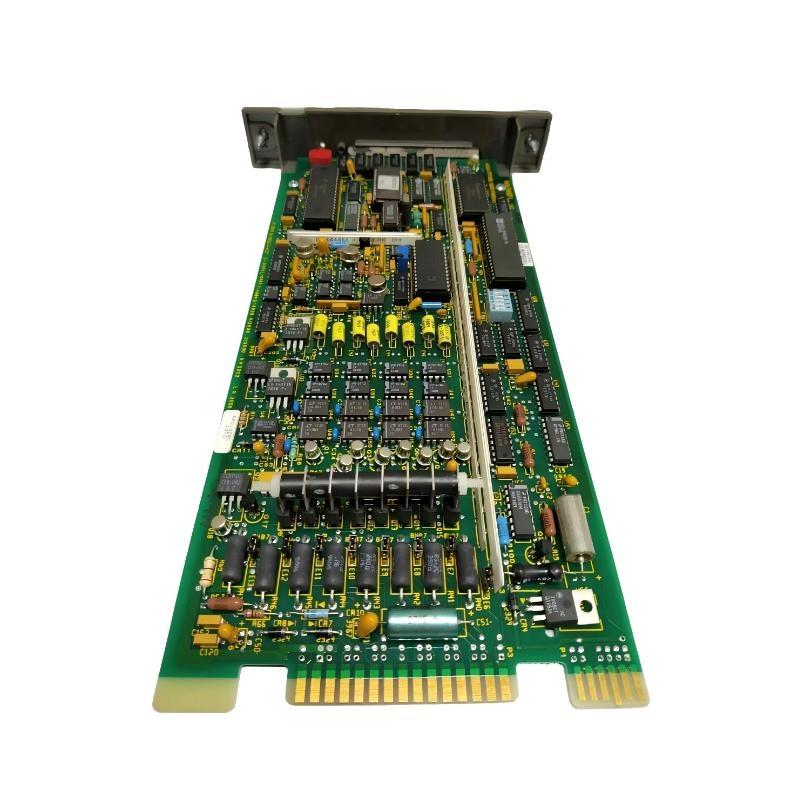

ABB Bailey IMAOM01 Analog Output Module Trusted supplier

FAQ

What is the primary function of the ABB Bailey IMAOM01 module?
The IMAOM01 converts digital control signals into precise analog outputs, enabling accurate control of field devices such as valves, actuators, and transmitters.

What types of analog outputs are supported by the IMAOM01?
The module supports both voltage (0–10 VDC) and current (4–20 mA) outputs, which can be selected via software configuration.

How many output channels does the IMAOM01 provide?
It provides 8 independent and isolated analog output channels, allowing control of multiple devices simultaneously.

What level of accuracy can be expected from the IMAOM01 outputs?
The module offers a high accuracy of ±0.1% of full scale, ensuring reliable analog signal delivery for precise process control.

How does the IMAOM01 handle electrical isolation?
Each channel is isolated up to 1500 V RMS from other channels and the system bus, providing safety and preventing interference between outputs.

Does the IMAOM01 include diagnostic features?
Yes, the module provides fault detection for each channel, monitors output signals, and checks bus communication status to ensure proper operation.

Can the IMAOM01 be integrated with both analog and digital I/O systems?
Yes, it interfaces with the ABB INFI 90/Network 90 system bus, allowing it to work seamlessly with both analog and digital control modules.

What environmental conditions can the IMAOM01 operate under?
The module is designed for industrial conditions, functioning reliably in temperatures from 0°C to +60°C and in humidity up to 95% non-condensing.
