Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

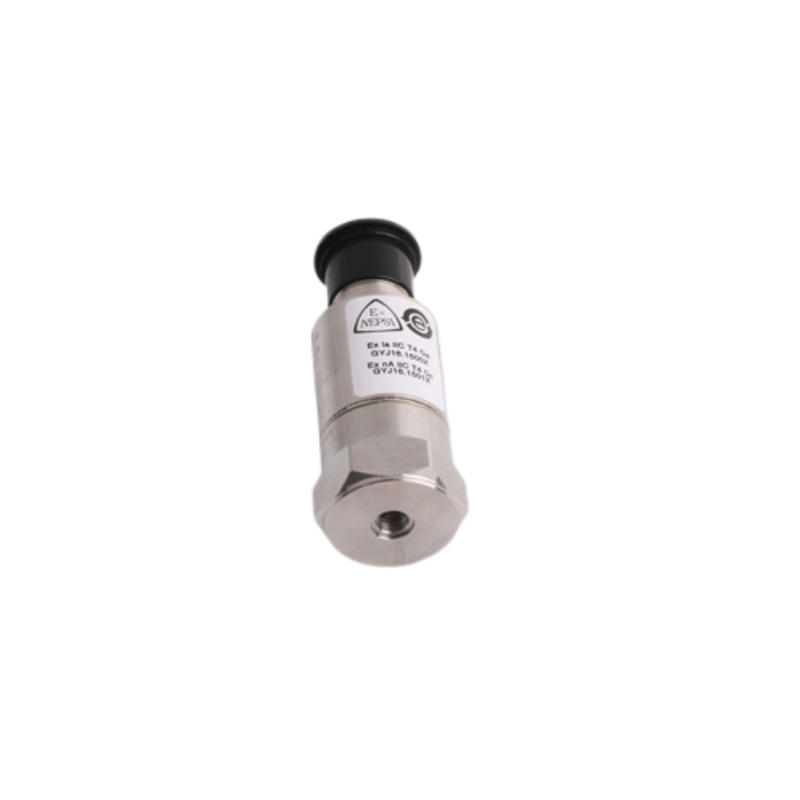

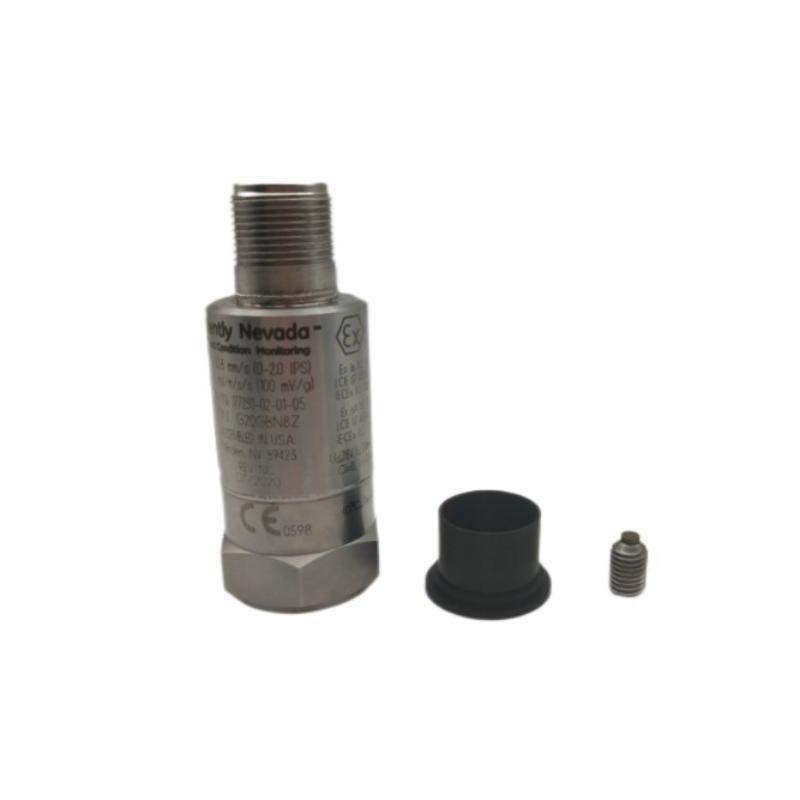

Bently Nevada 177230-02-01-CN Loop-powered Seismic Original

Brand：Bently Nevada

Item No.：177230-02-01-CN

Product Type：Loop-powered Seismic

Product Origin：USA

Dimensions：25.4 mm (1.00 in) diameter; 66.0 mm (2.60 in) height

Weight：0.131 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

Ten thousand models in stock, quick matching needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the purpose of the 177230-02-01-CN transmitter?
It is a seismic transmitter that measures machine vibration and converts it into a 4–20 mA current signal for PLC, DCS, or SCADA system monitoring.

What is the velocity measurement range?
It measures vibration velocity from 0 to 50.8 mm/s RMS (0 to 2.0 in/s), suitable for a wide range of industrial machinery.

Does it provide an acceleration output?
Yes, it provides an unbuffered acceleration signal through a voltage output for diagnostic or dynamic analysis.

What power supply is required?
The device operates from 12 to 30 V DC with current limited to a maximum of 40 mA.

What are its physical dimensions and weight?
The transmitter measures 25.4 mm in diameter and 66 mm in height, weighing approximately 0.131 kg.

What are the environmental operating conditions?
It can operate in temperatures from –40 °C to +85 °C and withstand up to 100% humidity in non-submerged applications.

How is it mounted and connected?
It uses a ¼-28 UNF threaded mounting stud and a 3-pin MIL-C-5015 connector for signal and power connections.

What does the “CN” suffix mean?
The “CN” suffix denotes that this version meets specific regional standards or certifications required for installation in China or similar regulatory environments.
