Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

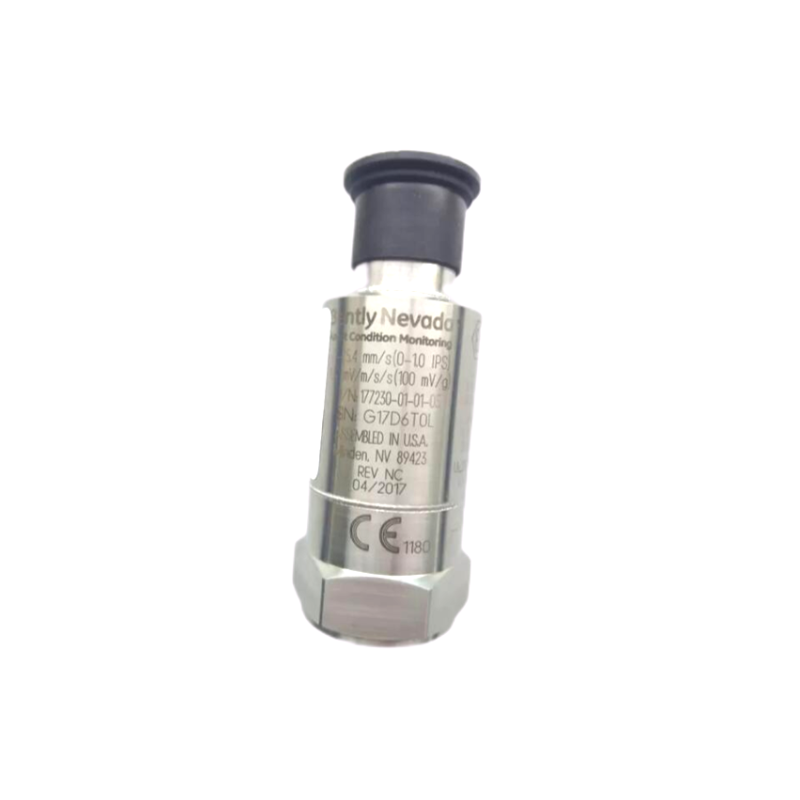

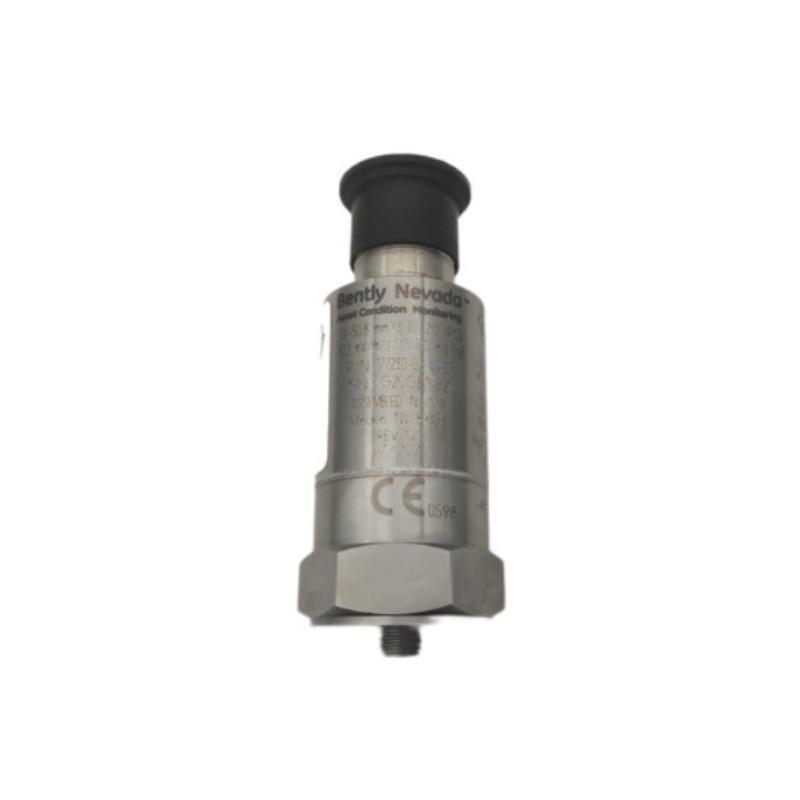

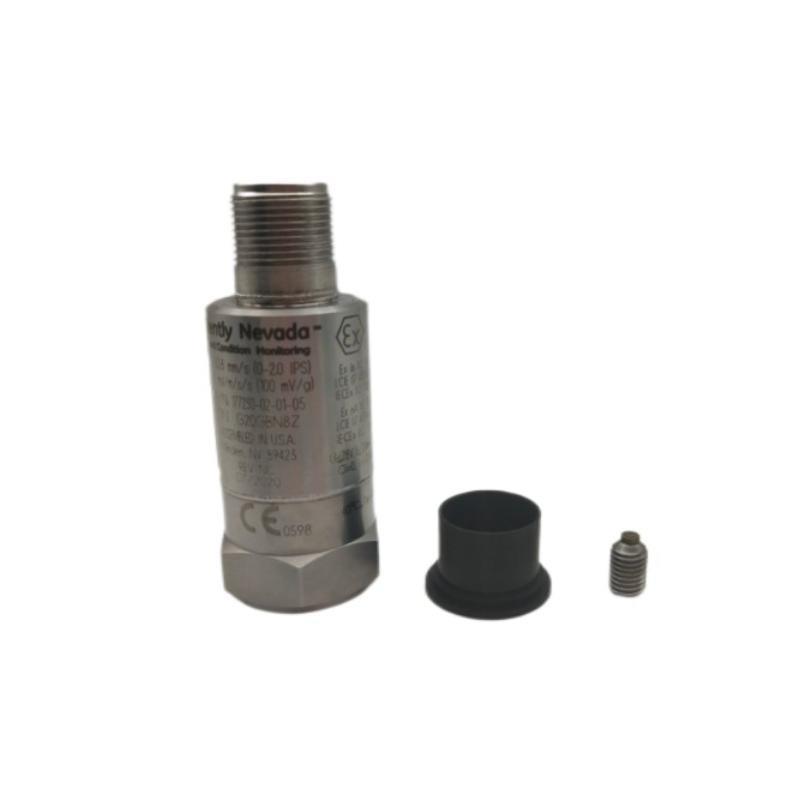

Bently Nevada 177230-01-01-00 Loop‑powered Seismic Transmitter 12-Month Warranty

Brand：Bently Nevada

Item No.：177230-01-01-00

Product Type：Loop‑powered Seismic Transmitter

Product Origin：USA

Dimensions：Diameter: 25.4 mm (1.00 in); Height: 66.0 mm (2.60 in)

Weight：0.131 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original overseas introduction, test assistance instructions support, stable and reliable service

There are abundant spot models, supporting quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the purpose of the 177230‑01‑01‑00 transmitter?
It is a seismic transmitter that converts vibration (velocity) from rotating machinery into a 4–20 mA signal for use in PLC, DCS or SCADA systems.

What measurement ranges are supported?
The standard range is 0 to 12.7 mm/s RMS, with optional ranges up to 25.4 mm/s or 50.8 mm/s depending on variant.

What is the frequency response of the device?
It operates across 10 Hz to 1 kHz with ±10 % accuracy over that band.

What output signals does it provide?
It provides a 4–20 mA loop output for velocity plus an unbuffered voltage output for acceleration (via Pin C).

What physical size and weight does the transmitter have?
It is 25.4 mm in diameter, 66.0 mm tall, and weighs approximately 0.131 kg.

What is the required supply voltage?
The device requires 12 to 30 V DC, with current limited to 40 mA max.

How does the transmitter handle signal faults or overloads?
Its built-in isolation and protected interface help prevent ground faults; the dynamic signal (Pin C) must remain isolated from loop return or it can short.

What environmental limits and certifications apply?
It operates from –40 °C to +85 °C, tolerates 100 % humidity (non‑submerged), and is built for industrial use with standard isolation and reliability features.

If you need the precise variant’s calibration, hazardous area certification, or wiring details, I can extract those from the datasheet for you.
