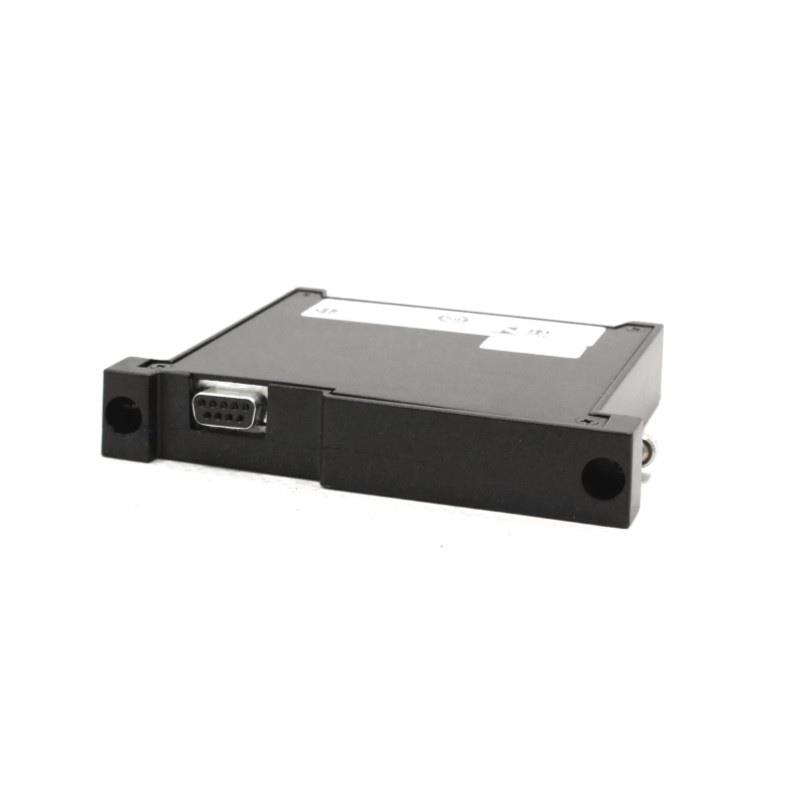

Bently Nevada 170133-XXX-00 Dual internal Proximitor / proximity signal conditioning module 12-Month Warranty

FAQ

What does “170133‑XXX‑00” represent?
The “XXX” is a placeholder for the system length option (e.g. 050, 090, 140), thus 170133‑XXX‑00 refers to variants of the same internal Proximitor module with different internal probe/extension lengths.

What is the module’s role in a proximity measurement system?
It replaces external Proximitor sensors by embedding two proximity signal conditioning channels internally, enabling direct connection to probes and extension cables.

What scale factor is used for displacement?
The module typically uses 7.87 mV per micrometer (≈ 200 mV per mil) over its linear range.

What is the usable calibration range?
The calibration (linear) range is from 250 µm up to 2250 µm (10–90 mil).

What is the bandwidth capability?
It is expressed up to 12.5 kHz (–3 dB point at 50 mil gap), enabling high‑speed measurements.

What are the physical size and weight?
The module’s approximate housing is 125 × 21 × 105 mm, and it weighs about 320 g.

How does fault detection work?
If a probe or cable has an open or short, the output shifts close to 1 V above common, signaling a fault to the monitoring system.

What environmental limits does it support?
Operating –34 °C to +85 °C, storage –40 °C to +85 °C, and it is designed for full humidity (100 % condensing) non‑submerged when connectors are sealed.
