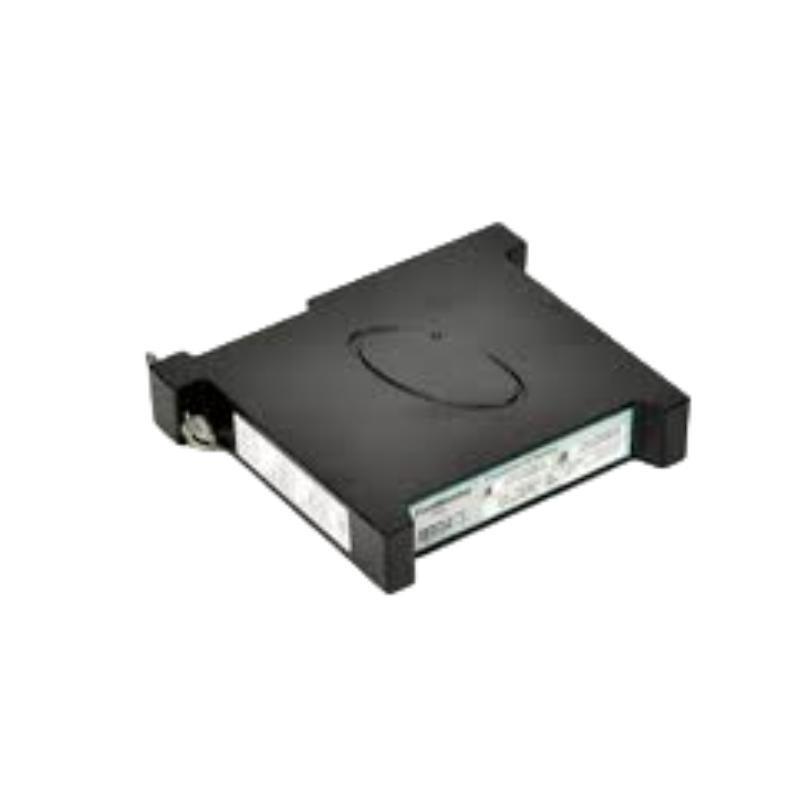

Bently Nevada 1701/15 1034549-20 FieldMonitor Proximitor Input Monit Unbelievable Prices!

FAQ

What is the function of the 1701/15 module?
It accepts signals from proximity probes, processes them into meaningful vibration and gap measurements, compares to alarm thresholds, and outputs status for monitoring systems.

How many probes can it monitor?
It supports two channels, each handling one probe input (radial vibration or thrust/gap).

Can this module measure both vibration and shaft position (gap) simultaneously?
Yes — it can produce both direct (vibration) and gap (gap voltage / position) measurements from the same probe channel, though only Alarm 1 is typically allowed on gap.

What filtering options are available?
The module features selectable high-pass corners (1 Hz, 4 Hz) and low-pass corners (600 Hz, 4000 Hz) for signal bandwidth control.

What are the physical dimensions and weight?
The module measures 127 mm × 21.6 mm × 105 mm and weighs approximately 0.314 kg.

What are the environmental operating limits?
It operates from –20 °C to +70 °C and can be stored in –40 °C to +85 °C, with humidity tolerated up to 95 % non‑condensing.

Is it self‑diagnostic?
Yes — embedded self-tests monitor internal integrity and connected transducer health, causing a “NOT OK” if issues are detected.

What installation considerations should be noted?
The internal barrier version requires a 1701/06 Isolator Terminal Base. External barrier schemes can also be used. Ensure proper configuration of alarm setpoints, channel type (vibration or gap), and matching Flexbus communication.
