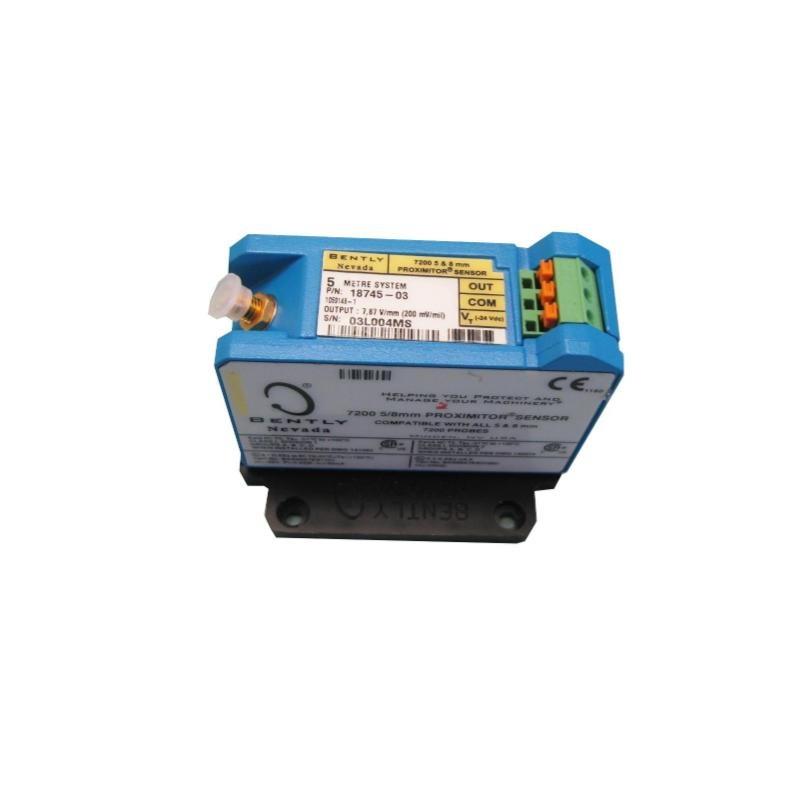

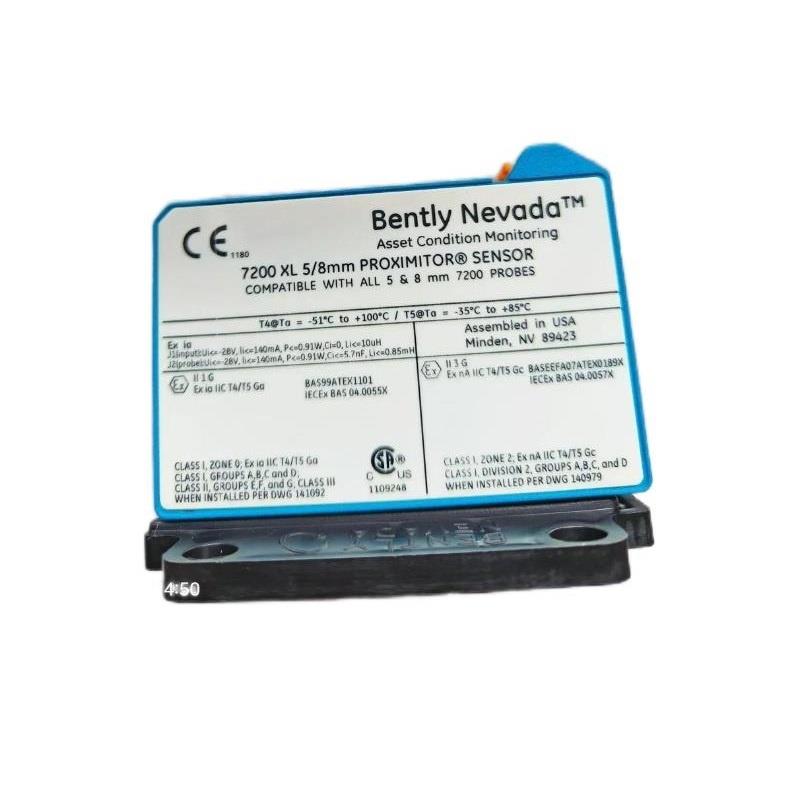

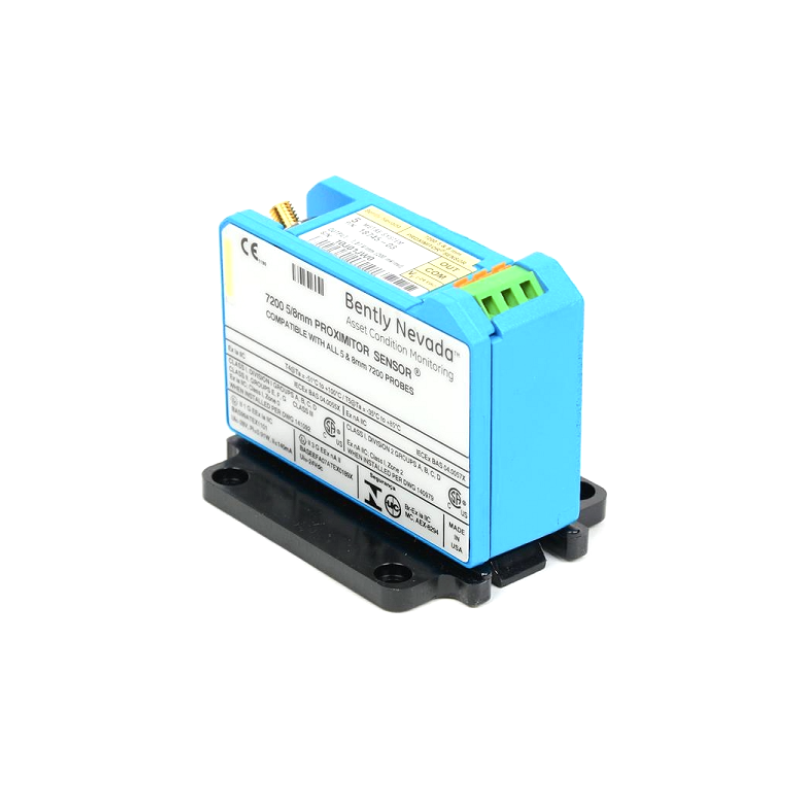

Bently Nevada 18745-03-05 7200 Series Proximitor Sensor Unbelievable Prices!

FAQ

What is the primary use of the 18745-03-05 sensor?
It is designed for accurate non-contact measurement of static and dynamic shaft position (gap) or vibration in rotating machinery via a proximity probe and Proximitor system.

What probe diameters does this model support?
It supports either 5 mm or 8 mm diameter probes, depending on the system configuration.

What is the measurement range of this sensor system?
The system covers a linear measurement range of up to approximately 80 mils (~2 mm) of target displacement.

What is the bandwidth of the device?
It operates from DC (0 Hz) up to about 10 kHz, making it suitable for both slow position changes and high-frequency vibration.

What scale factor does the output provide?
The output is typically around 200 mV per mil of gap (~7.9 mV per micrometer), providing a linear voltage representation of target displacement.

In what temperature range can this sensor be used?
It is rated for operation from –40 °C up to +125 °C, accommodating a wide range of industrial environments.

What are the physical size and weight of the module?
The sensor module roughly measures 102 mm by 114 mm by 132 mm and weighs about 0.23 kg.

What kinds of applications is this sensor particularly suited for?
It’s ideal for monitoring shaft position or vibration in turbines, compressors, pumps and other rotating equipment where reliable gap or displacement measurement is required.
