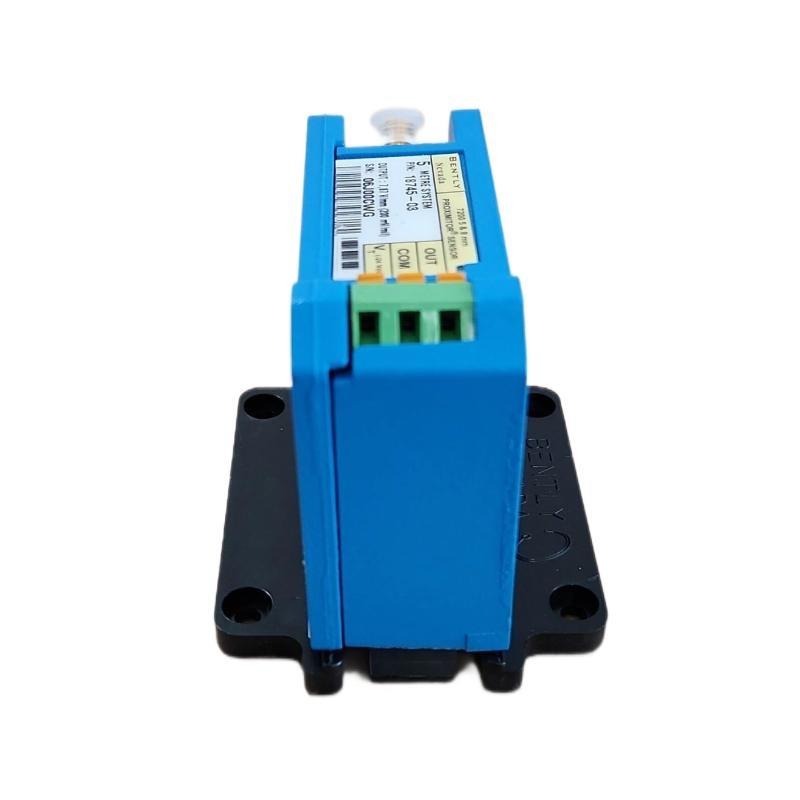

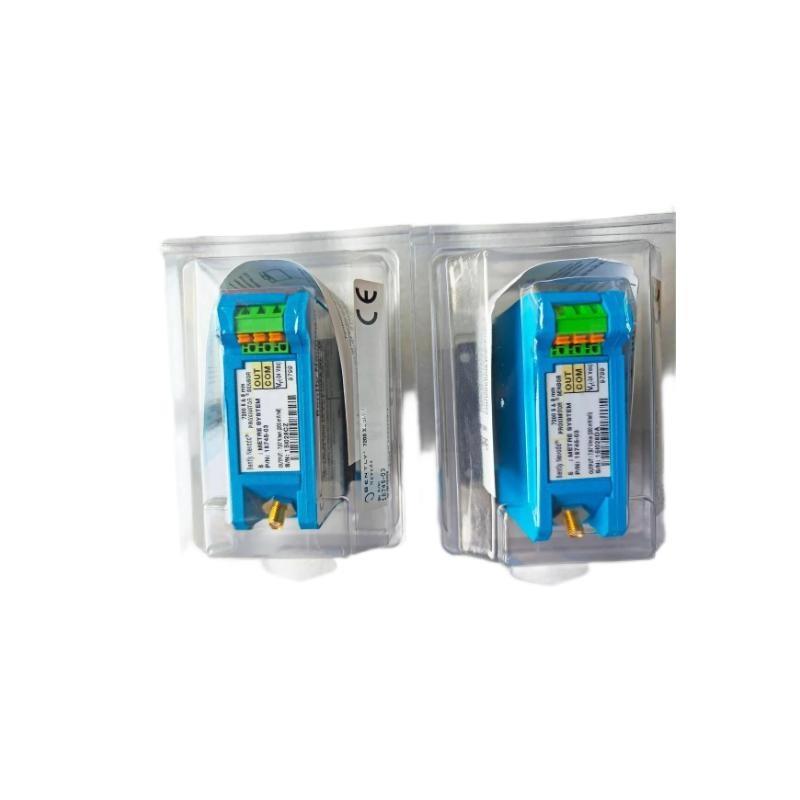

Bently Nevada 18745-01 Proximitor Sensor (7200 Series, either 5 mm or 8 mm probe variant) Fast Shipping!

Bently Nevada 18745-01 Proximitor Sensor (7200 Series, either 5 mm or 8 mm probe variant) Fast Shipping!

0.0

Points

100% Original and Authentic.
100% Brand New, Ready to ship.
Support Refund, 7X24h Service.
1-Year Warranty on All Products.

Today's Discount: 90% 00 : 00 : 00

Low stock: 143 left

95%

Add to cart

Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

Bently Nevada 18745-01 Proximitor Sensor (7200 Series, either 5 mm or 8 mm probe variant) Fast Shipping!

Brand：Bently Nevada

Item No.：18745-01

Product Type：Proximitor Sensor (7200 Series, either 5 mm or 8 mm probe variant)

Product Origin：USA

Dimensions：81.3 mm × 61.2 mm × 63.5 mm

Weight：0.1 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal source, test instructions can be coordinated, and after-sales service continues to follow up

Complete models, inventory is updated in real time, welcome to get the latest list!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the purpose of the 18745-01 Proximitor sensor?
It is used to measure static and dynamic distances (gap) between a probe tip and a target, typically for shaft position and vibration monitoring in rotating machinery.

What probe diameter does this model use?
The “-01” variant typically uses a 5 mm diameter probe.

What is the supply voltage for this sensor?
The sensor is powered by –18 V to –24 V DC.

What is the scale factor (output sensitivity) of the sensor?
The output is 200 mV per mil of gap, which is approximately 7.87 mV per micrometer.

What is the linear measurement range?
The sensor has a linear response over approximately 10 to 15 mils (≈ 250 to 380 µm) of gap.

What is the frequency response of the sensor?
It covers from direct current (0 Hz) up to about 10 kHz.

What are the physical size and weight of the unit?
Dimensions are circa 81.3 mm × 61.2 mm × 63.5 mm, and the weight is approximately 0.10 kg.

In what temperature range can the sensor operate?
It is rated for operation from –50 °C to +100 °C, making it suitable for a wide range of industrial environments.
