Product Introduction

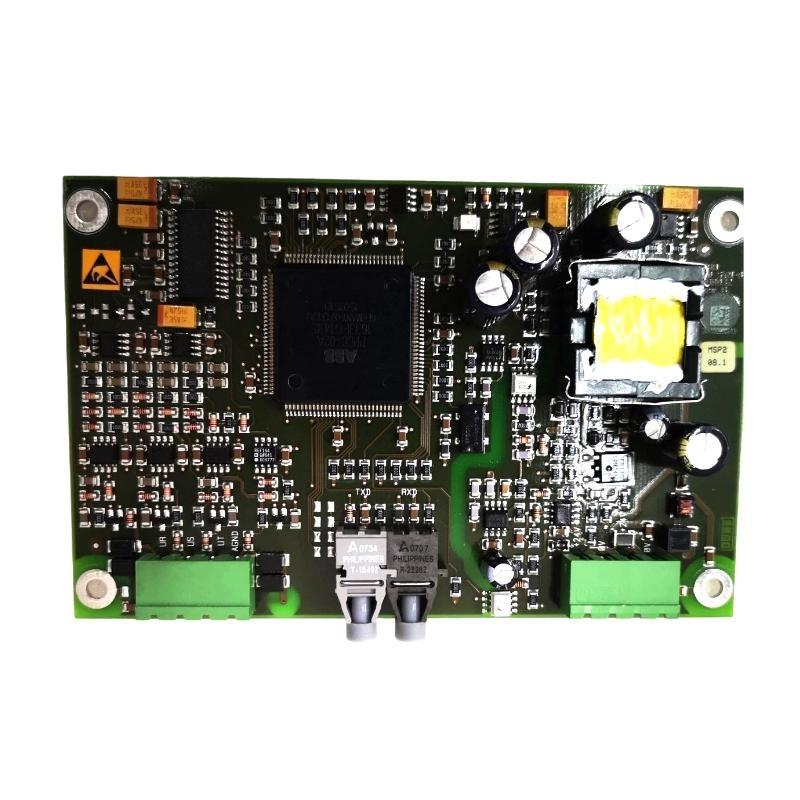

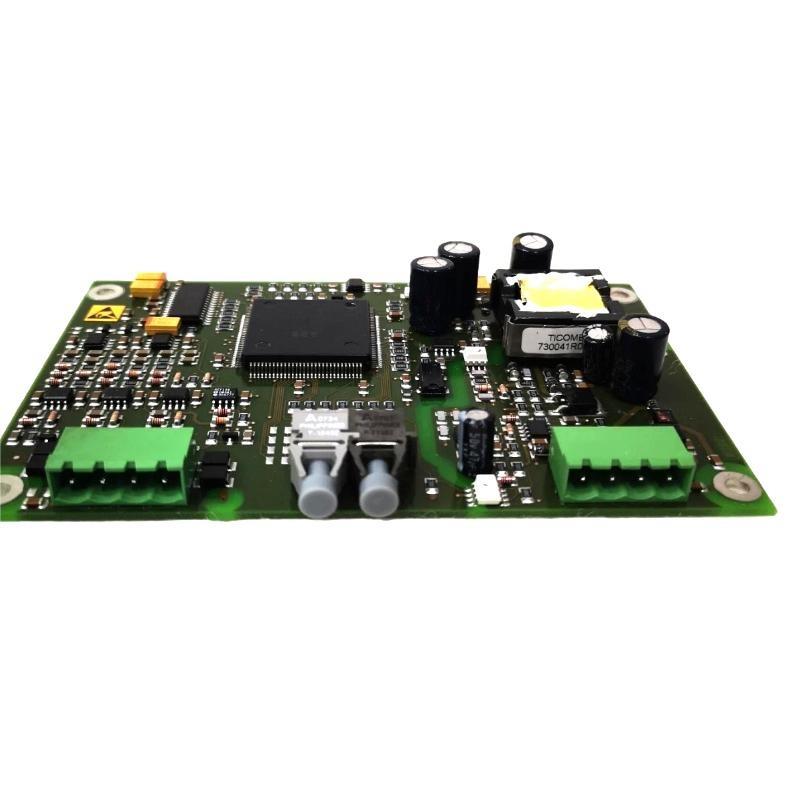

ABB XV C768 AE117 3BHB007211R0117 PC Board 12-Month Warranty

Brand：ABB

Item No.：XV C768 AE117 3BHB007211R0117

Product Type：PC Board

Product Origin：Sweden (SE)

Dimensions：100 × 120 × 50 mm

Weight：0.45 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channel supply, complete information can be checked, and supporting service guarantee

There are rich models in stock, which support quick docking of procurement needs. Welcome to inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the maximum current measurement range of the XV C768 AE117 module?
The module can measure currents up to ±4,500 A.

Can the XV C768 AE117 handle continuous high-current operation in ACS6000 drives?
Yes, it is rated for continuous operation corresponding to the inverter rated current of 1,648 A.

What type of signal does this board provide to the ACS6000 control system?
It provides scaled current measurement signals for precise drive feedback.

What is the peak power handling capacity of the XV C768 AE117?
The module supports up to 11 MVA peak.

How critical is the installation orientation for this subprint board?
Correct orientation ensures accurate current scaling and avoids signal distortion.

Is the XV C768 AE117 compatible with all ACS6000 series models?
It is compatible with specific ACS6000 models; verification against the drive model is required before installation.

What are the environmental limitations for operating this module?
It must operate within the temperature and humidity ranges specified for ACS6000 drives to ensure reliable performance.

What are the dimensions and weight of the XV C768 AE117 board?
Dimensions are 100 × 120 × 50 mm and weight is 0.45 kg.
