Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

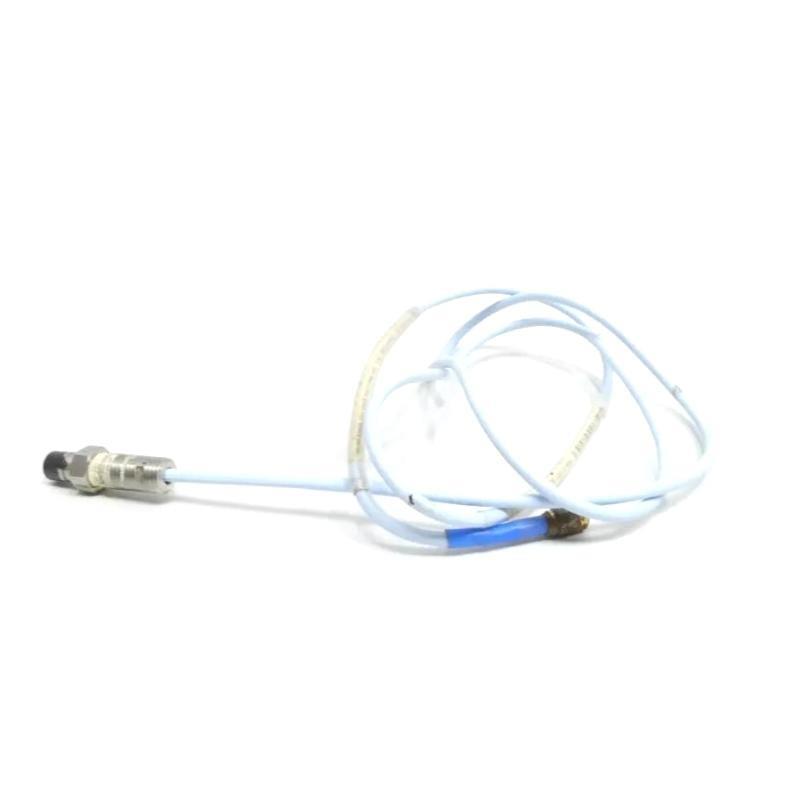

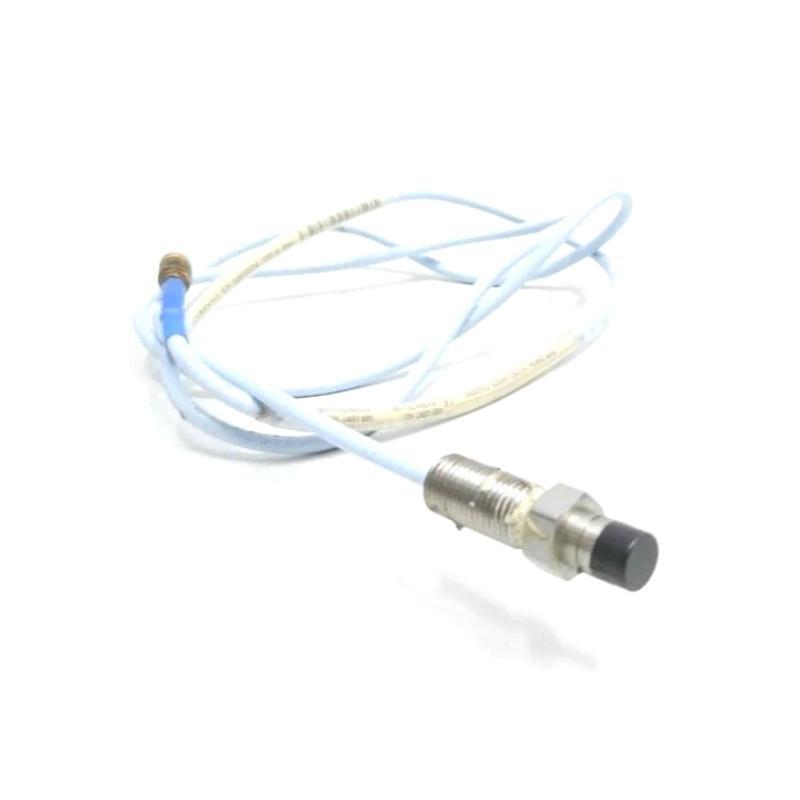

Bently Nevada 330105-02-12-15-02-05 3300 XL 8 mm Reverse Mount Probe 12-Month Warranty

Brand：Bently Nevada

Item No.：330105-02-12-15-02-05

Product Type：3300 XL 8 mm Reverse Mount Probe

Product Origin：USA

Dimensions：1.5 meter

Weight：0.485 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Standardized import process, support for testing, and guaranteed after-sales

Complete models, inventory is updated in real time, welcome to get the latest list!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What thread type is supported by this probe model?
The 330105-02-12-15-02-05 probe supports 3/8-24 UNF reverse-mount threads.

What is the supported operating temperature range?
The standard probe operates from -52°C to +177°C. The extended temperature range (ETR) version supports up to +218°C at the tip and +260°C at the cable.

What is the linear measurement range of this probe?
The linear range is 2 mm (80 mils), with output voltage ranging from -1 VDC to -17 VDC.

Can this probe be mixed with non-XL 3300 series components?
Yes, the 3300 XL 8 mm probe is electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.

Does this probe comply with the API 670 standard?
Yes, the complete 3300 XL 8 mm system meets the mechanical, linear range, and temperature stability requirements of the API 670 standard.

What is the recommended mounting torque for this reverse mount probe?
The recommended mounting torque is 7.5 N·m (66 in·lbf); the maximum allowed is 22.6 N·m (200 in·lbf).

What is the recommended shaft diameter for optimal performance?
A shaft diameter of at least 76.2 mm (3 inches) is recommended to minimize cross-talk and maintain measurement accuracy.

Is field calibration or matching of components required for this model?
No. All components in the 3300 XL system are factory pre-calibrated and fully interchangeable. Field calibration is not required.
