Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

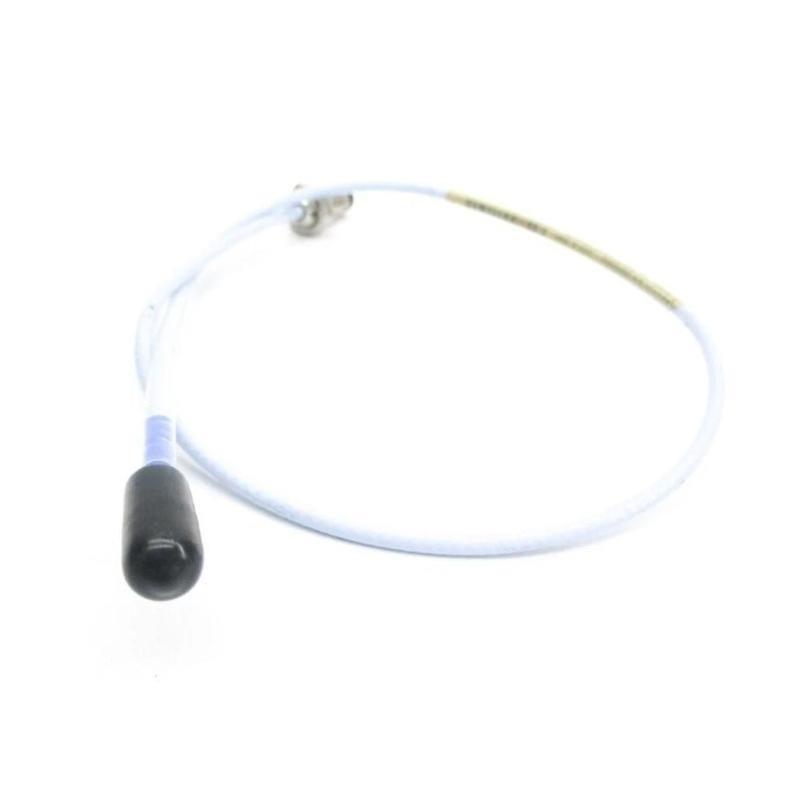

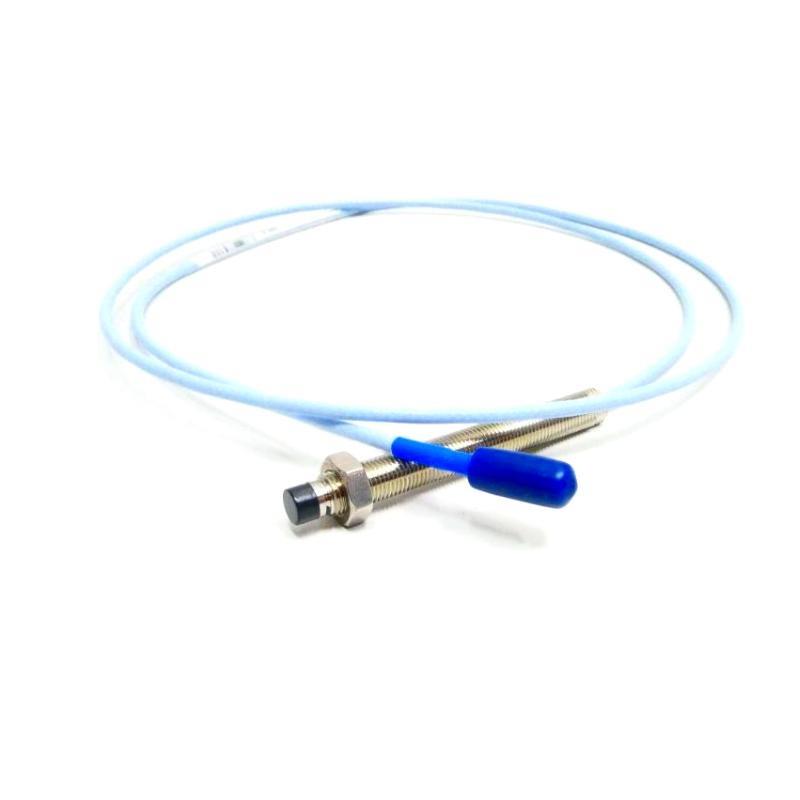

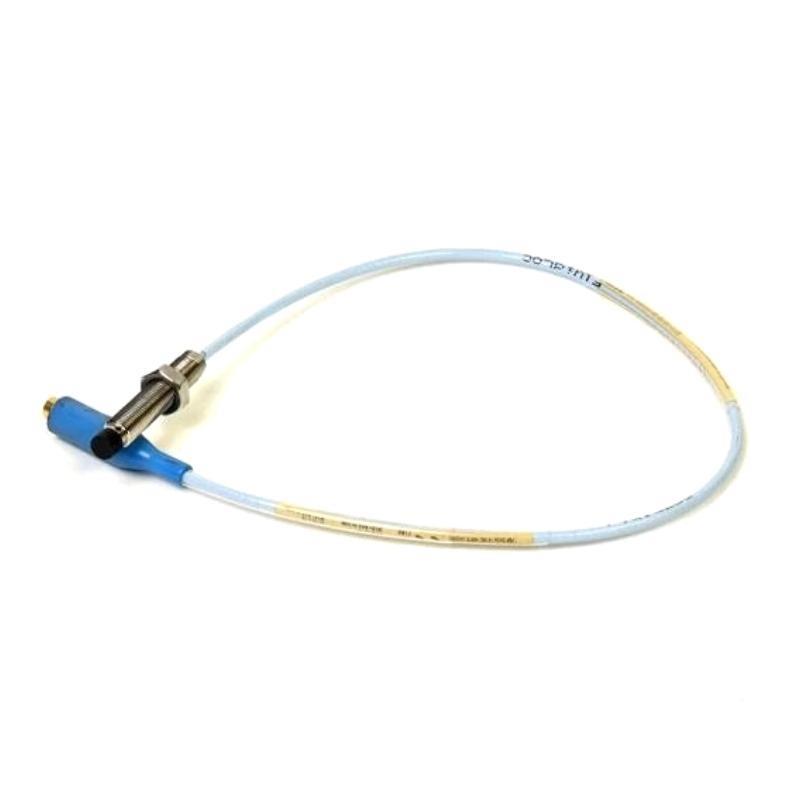

Bently Nevada 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe 30-Day Returns！

Brand：Bently Nevada

Item No.：330101-00-68-10-12-05

Product Type：3300 XL 8 mm Proximity Probe

Product Origin：USA

Dimensions：1.0 meter

Weight：0.323 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular supply, testing instructions can be coordinated, and after-sales service continues to follow up

A wide range of spot models, support for quick docking of purchasing needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main application of this probe?
It is primarily used for vibration and displacement measurement on fluid-film bearing machines, and also for Keyphasor reference and speed monitoring.

Is the 330101 series compatible with older 3300 series?
Yes, it is electrically and mechanically interchangeable with non-XL 3300 5 mm and 8 mm components.

What temperature environments can this probe withstand?
Standard probe operates from -52°C to +177°C, while ETR probe can withstand up to +218°C.

What is the linear measurement range?
The linear range is 0.25 mm to 2.3 mm, with a recommended gap setting of approximately 1.27 mm.

Does the cable prevent oil leakage?
Yes, with the optional FluidLoc cable, it effectively prevents oil or liquid ingress.

Are special tools required for installation?
No special tools are needed. The ClickLoc connectors can be installed by hand until they click.

Are connector protectors mandatory?
They are not mandatory but strongly recommended for enhanced environmental protection.

What is the minimum target size for reliable operation?
A minimum flat target diameter of 15.2 mm is required, and a shaft diameter of at least 50.8 mm is recommended to minimize cross-talk.
