Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

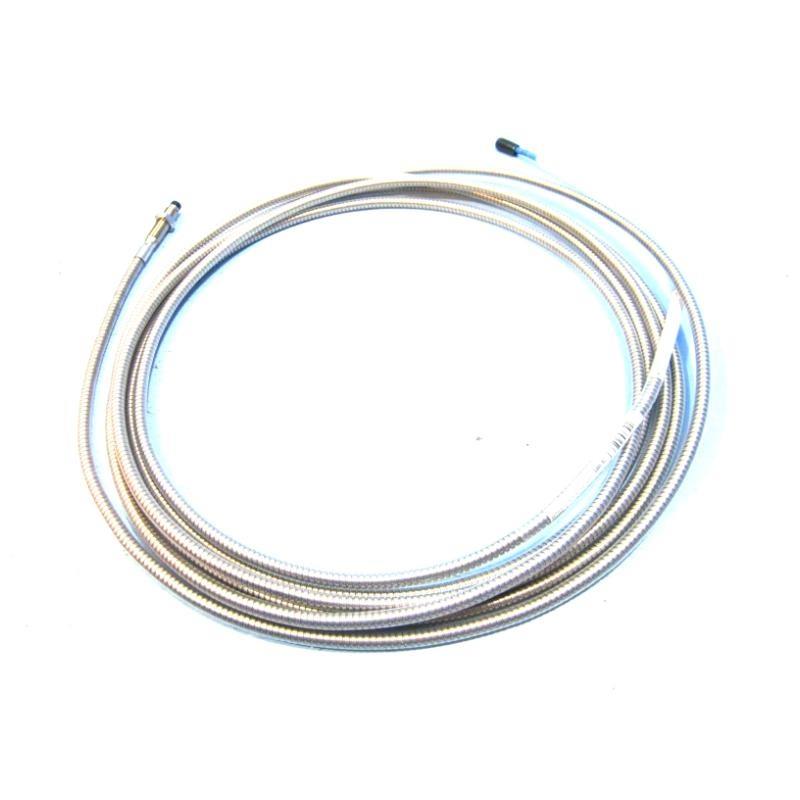

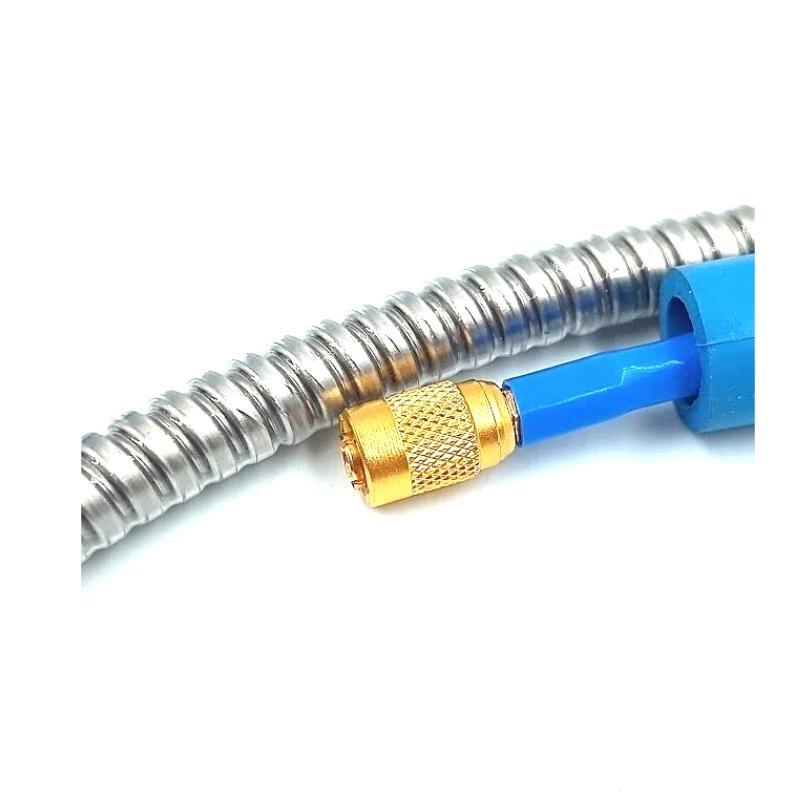

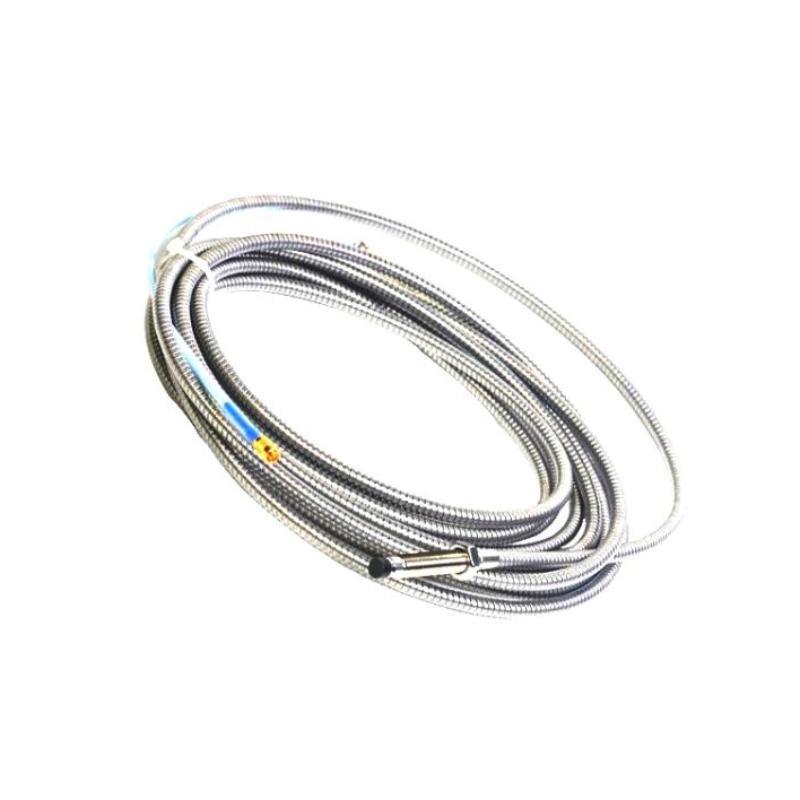

Bently Nevada 330102-24-10-02-05 3300 XL 8 mm Proximity Probe Original

Brand：Bently Nevada

Item No.：330102-24-10-02-05

Product Type：3300 XL 8 mm Proximity Probe

Product Origin：USA

Dimensions：1.0 meter

Weight：0.323 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

Large stock, diverse series, adapt to different working conditions, welcome to consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What are the main applications of the 330102-24-10-02-05 probe?
It is mainly used for vibration and position monitoring of fluid-film bearing machines and as a Keyphasor reference and speed measurement.

Does the 330102 probe comply with API 670 standard?
Yes, the product fully complies with API 670 for mechanical configuration, linear range, accuracy, and temperature stability.

What is the linear measurement range of this probe?
The linear measurement range is 0.25 mm to 2.3 mm.

What is the operating temperature range of the probe?
The standard operating temperature is -52°C to +177°C, and the ETR version can reach up to +218°C (probe tip).

What is the recommended minimum shaft diameter?
The recommended minimum shaft diameter is 76.2 mm for optimal accuracy.

Does the 330102 probe require special tools for installation?
No special tools are required. The ClickLoc connector allows easy installation with finger-tight or minimal wrench assistance.

Are the probe and extension cables interchangeable?
Yes, the 3300 XL series probes, extension cables, and Proximitor sensors are fully interchangeable without recalibration.

Is the product certified for hazardous areas?
Yes, CSA, ATEX, and IECEx certifications are available, supporting Zone 0/1/2 and Class I/II/III environments.
