Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

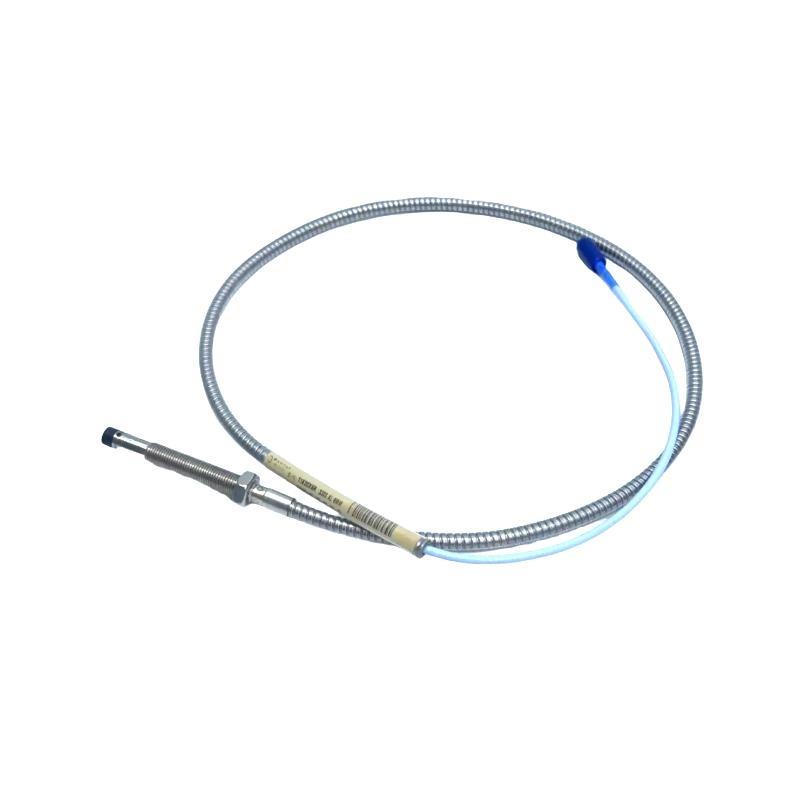

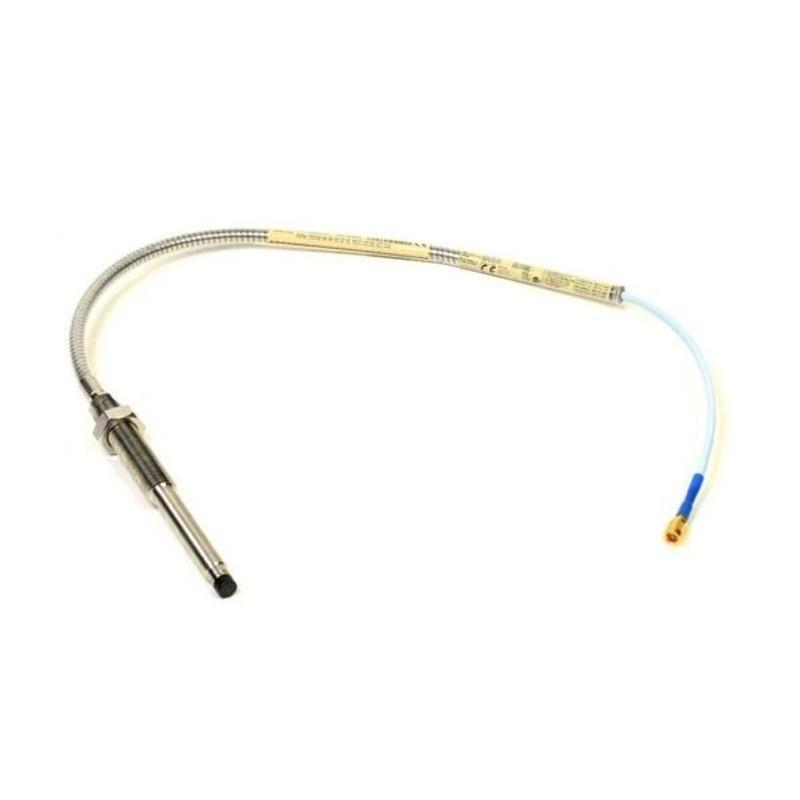

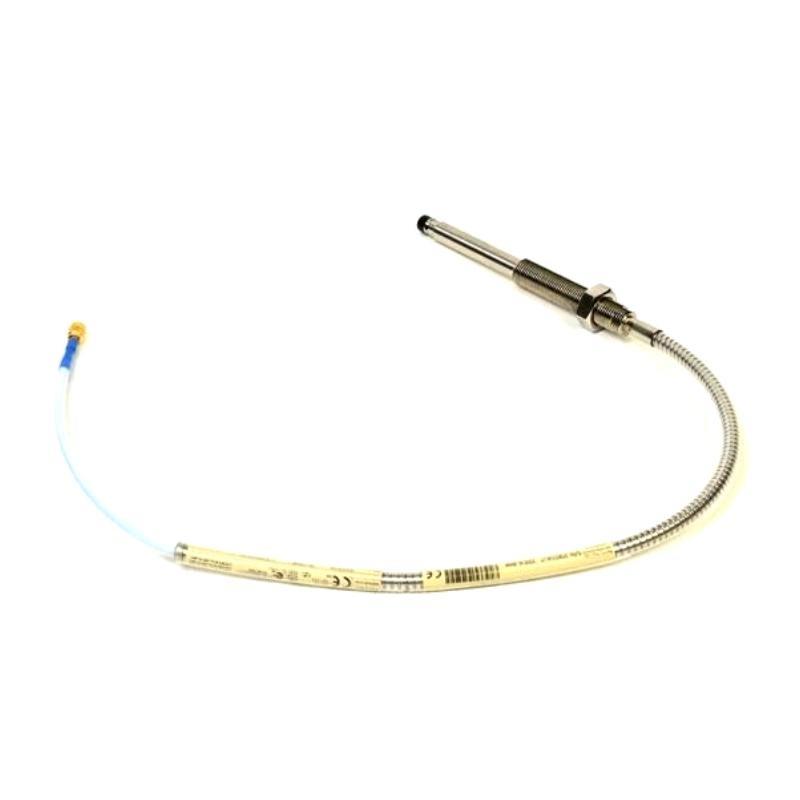

Bently Nevada 330102-00-30-50-02-05 3300 XL 8 mm Proximity Probe Fast Shipping!

Brand：Bently Nevada

Item No.：330102-00-30-50-02-05

Product Type：3300 XL 8 mm Proximity Probe

Product Origin：USA

Dimensions：5.0 meters

Weight：1.615 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original import channel supply, support for testing instructions, worry-free after-sales

Wide coverage of models, efficient delivery, welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the linear measurement range of the 330102-00-30-50-02-05 probe?
The linear range is 2 mm (80 mils), starting from approximately 0.25 mm to 2.3 mm from the target surface.

What is the recommended gap voltage setting for radial vibration measurements?
The recommended gap is approximately 1.27 mm (50 mils), corresponding to about -9 Vdc.

Can this probe operate in high-temperature environments?
Yes, the standard probe can withstand up to +177°C (350°F), and the extended temperature version can handle up to +218°C (425°F) at the probe tip and up to +260°C (500°F) for the cable.

What is the minimum shaft diameter this probe can measure accurately?
The minimum shaft diameter recommended is 50.8 mm (2 inches), although ≥76.2 mm (3 inches) is preferred for optimal accuracy.

Does this probe require calibration for different materials?
Yes, the probe is factory calibrated for AISI 4140 steel. Calibration for other materials can be requested to ensure accurate measurement.

Is the probe compatible with older 3300 series components?
Yes, it is backward compatible and interchangeable with non-XL 3300 5 mm and 8 mm series components, but system performance will be limited to the lowest rated component.

What type of connector is used on this probe?
The probe uses a corrosion-resistant, gold-plated miniature coaxial ClickLoc connector, which locks with a click when properly tightened.

Does the product comply with industry standards?
Yes, it meets API 670 mechanical and performance standards, and holds certifications including CSA, ATEX, IECEx, RoHS, and is rated for SIL2/SIL3 functional safety.
