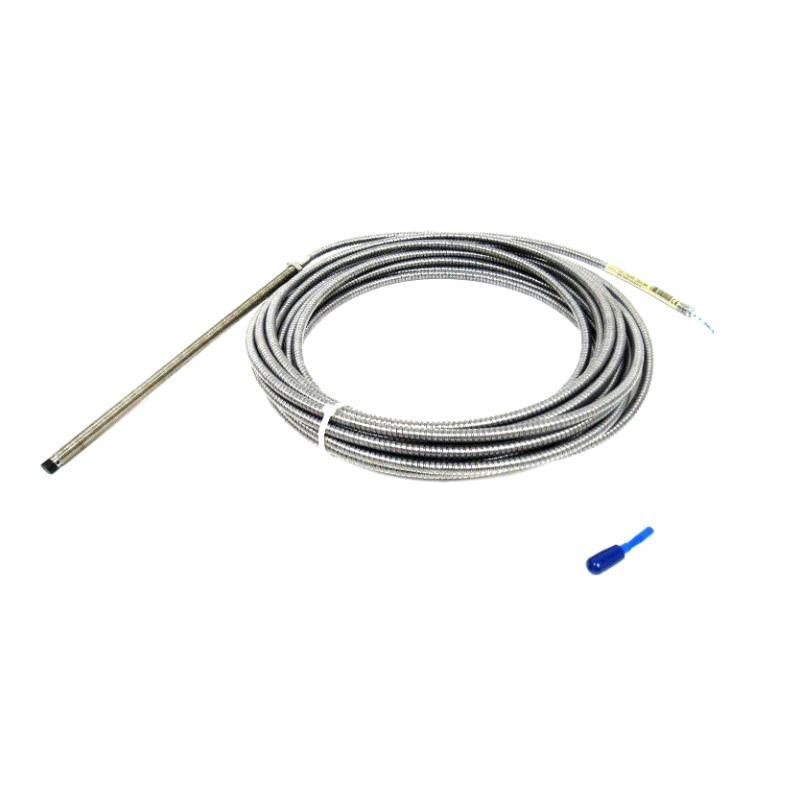

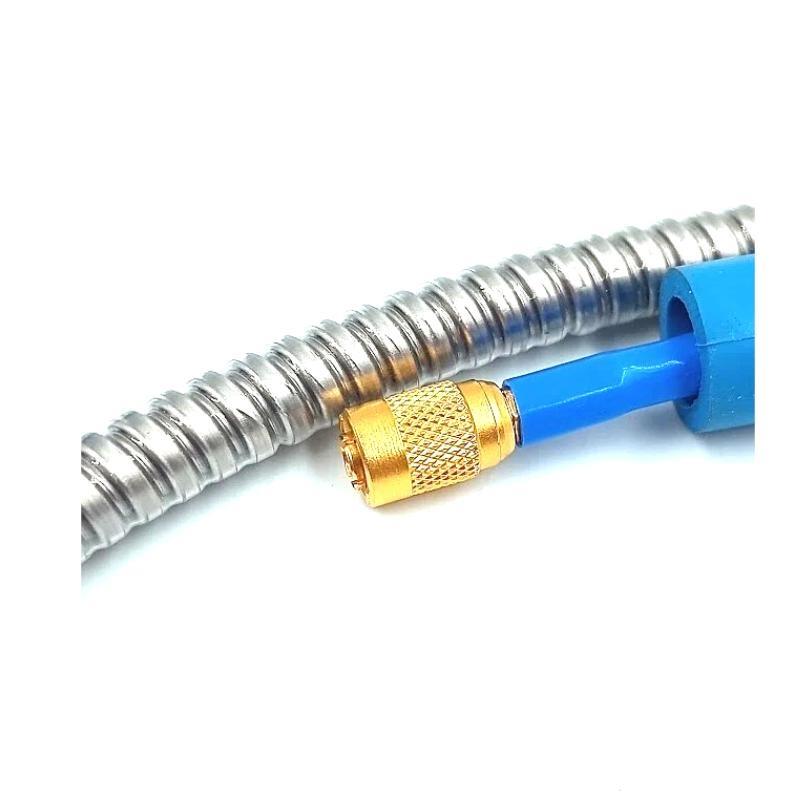

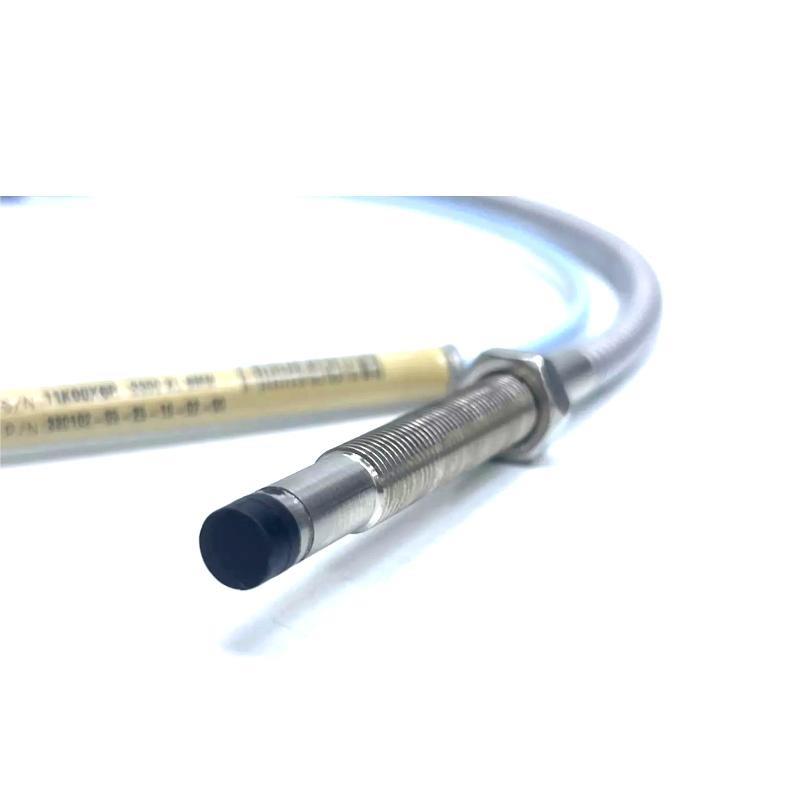

Bently Nevada 330102-00-24-10-02-00 3300 XL 8 mm Proximity Probe Original

FAQ

What are the main applications of the Bently Nevada 330102-00-24-10-02-00 probe?
It is mainly used for shaft vibration and axial position monitoring in fluid-film bearing machines, as well as for Keyphasor phase reference and speed measurements.

Does this probe comply with API 670 standards?
Yes, this model fully complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.

What is the output voltage proportional to?
The output voltage is directly proportional to the distance between the probe tip and the observed conductive surface.

Is this probe compatible with older non-XL 3300 series components?
Yes, the 330102 probe is both electrically and physically interchangeable with non-XL 3300 series 5 mm and 8 mm components.

What is the maximum operating temperature supported by the probe?
The standard probe supports up to +177°C; the Extended Temperature Range version supports up to +218°C.

What is the recommended minimum spacing for installation?
Recommended spacing is ≥40 mm for axial and ≥38 mm for radial measurements to limit crosstalk to ≤50 mV.

What installation torque is recommended for the probe?
Recommended torque is 11.2 N•m (100 in•lbf), not to exceed 33.9 N•m (300 in•lbf).

Does the probe require matched components for proper operation?
No, all 3300 XL 8 mm components are fully interchangeable, eliminating the need for matched pairs or field calibration.
