Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

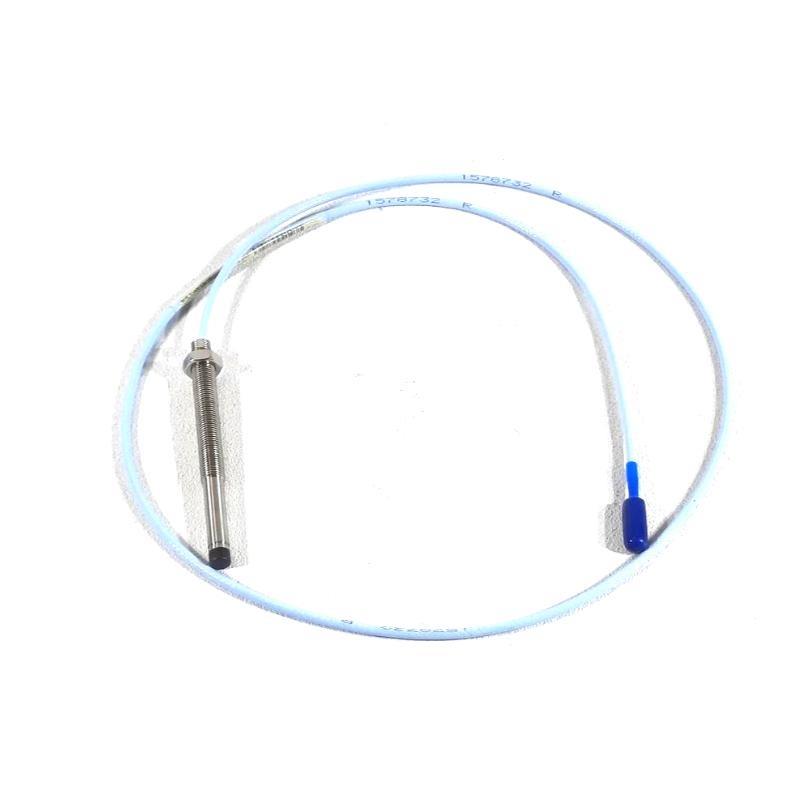

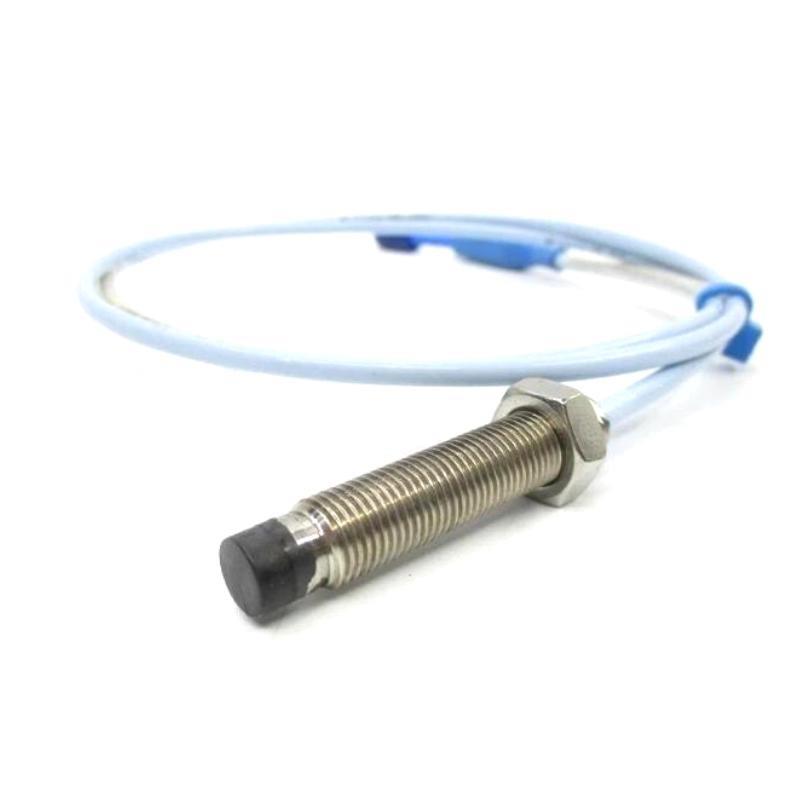

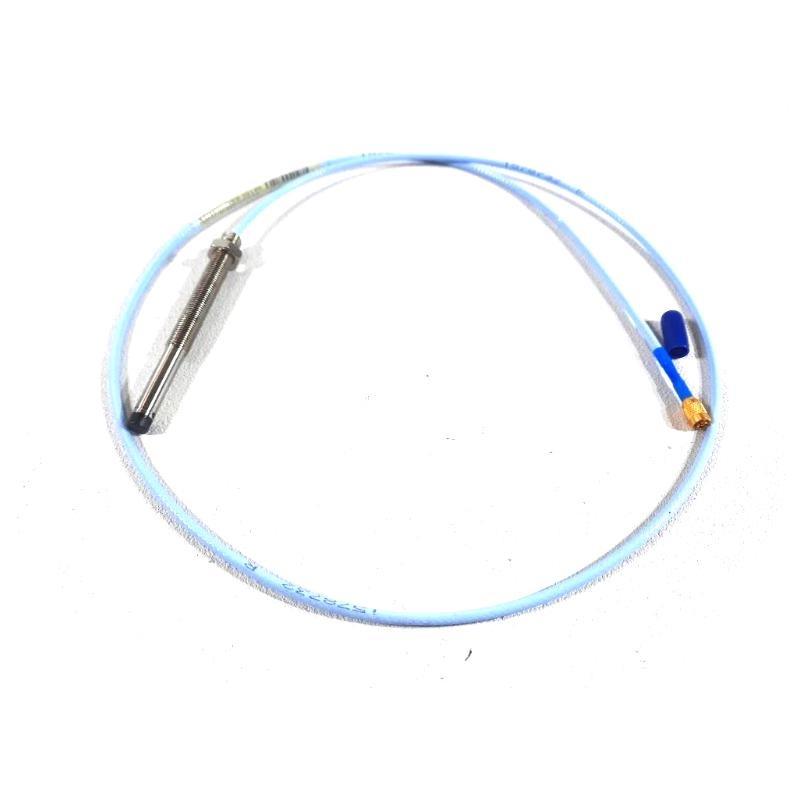

Bently Nevada 330101-16-28-10-12-05 3300 XL 8 mm Proximity Probe Unbelievable Prices!

Brand：Bently Nevada

Item No.：330101-16-28-10-12-05

Product Type：3300 XL 8 mm Proximity Probe

Product Origin：USA

Dimensions：1.0 meter

Weight：0.323 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The model covers a wide range and the delivery is efficient. Please contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What types of measurements does this probe support?
It supports non-contact displacement, vibration, Keyphasor reference, and speed measurements.

What is the recommended installation gap?
The recommended gap is 1.27 mm (50 mils), producing approximately -9 VDC output.

What is the maximum operating temperature?
Standard probes operate up to 177°C; Extended Temperature Range (ETR) probes up to 218°C, and ETR cables up to 260°C.

Is this model compatible with non-XL 3300 series components?
Yes, it is electrically and physically interchangeable, but overall system performance will be limited to the non-XL specifications.

Does the probe and cable require specific length matching?
Yes, the total length of the probe and extension cable must match the Proximitor Sensor system length.

Is the output linear?
Yes, the output voltage is linear over the range of 0.25 mm to 2.3 mm (10 to 90 mils).

Are special tools needed for connector installation?
No special tools are required. The ClickLoc connectors lock with finger-tight torque and a “click” sound.

What environments is this probe suitable for?
It is designed for high EMI/RFI resistance, high temperature, and high humidity environments—suitable for power generation, petrochemical, and heavy industries.
