Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

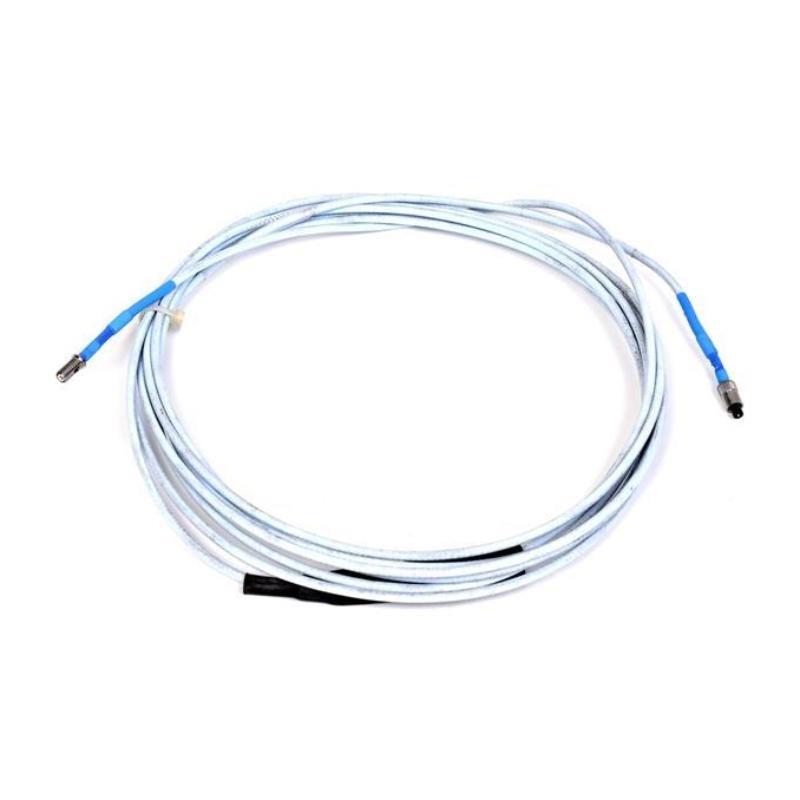

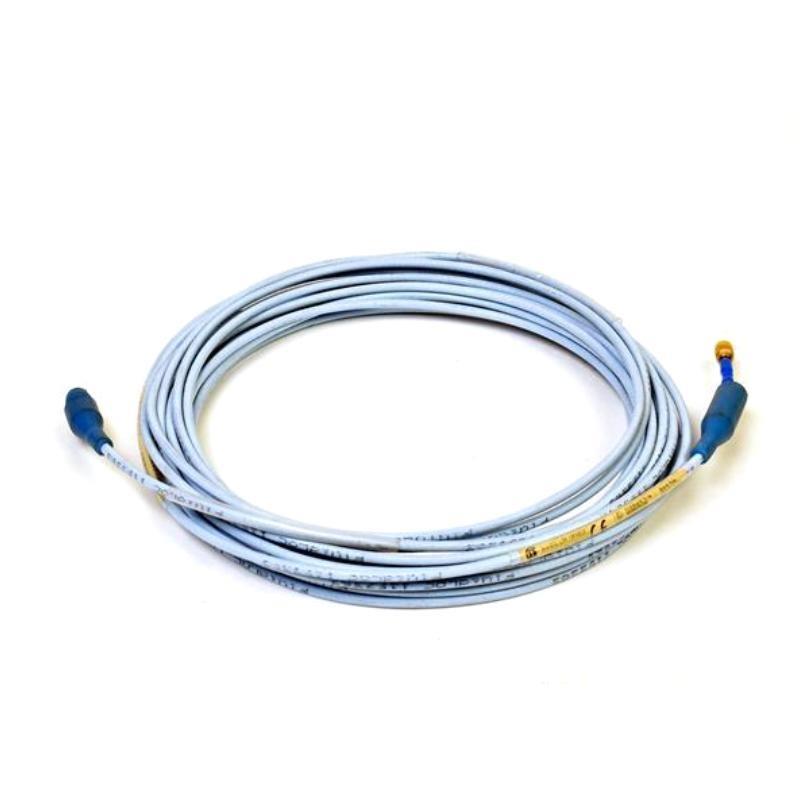

Bently Nevada 330130-005-00-00 Keyphasor Proximity Probe (5 mm System) 12-Month Warranty

Brand：Bently Nevada

Item No.：330130-005-00-00

Product Type：Keyphasor Proximity Probe (5 mm System)

Product Origin：USA

Dimensions：Probe tip diameter 5 mm; standard case length for the 330130 series

Weight：Approx. 0.10–0.15 kg (typical for 0.5 m cable probe module)

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The channel is formal, the test instructions are complete, and the service is responsive

Regular models are in stock for a long time, and the inventory is stable. Please inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the main purpose of the 330130-005-00-00 probe?
It is used as a Keyphasor probe to measure rotational speed and provide a once-per-revolution reference signal.

What does “005” indicate in the model number?
It represents a 0.5-meter integral probe cable.

Is this probe suitable for harsh industrial environments?
Yes, the stainless-steel housing and IP67 sealing allow reliable performance in oil, dust, and vibration-heavy conditions.

Which proximitor sensor should be used with this probe?
It is designed to match the 3300 XL 5 mm Proximitor Sensor.

Can it be used for vibration measurement?
Its primary function is Keyphasor phase reference, but it uses the same displacement measurement technology as vibration probes.

What is the typical sensitivity of this probe?
The system sensitivity is approximately 7.87 mV/µm, standard for 5 mm eddy-current systems.

Is the probe armored?
No, this model is an unarmored probe designed for standard mounting conditions.

What are the physical dimensions and weight of the probe?
It has a 5 mm tip diameter, standard 330130 probe case length, and weighs around 0.10–0.15 kg, depending on cable length.
