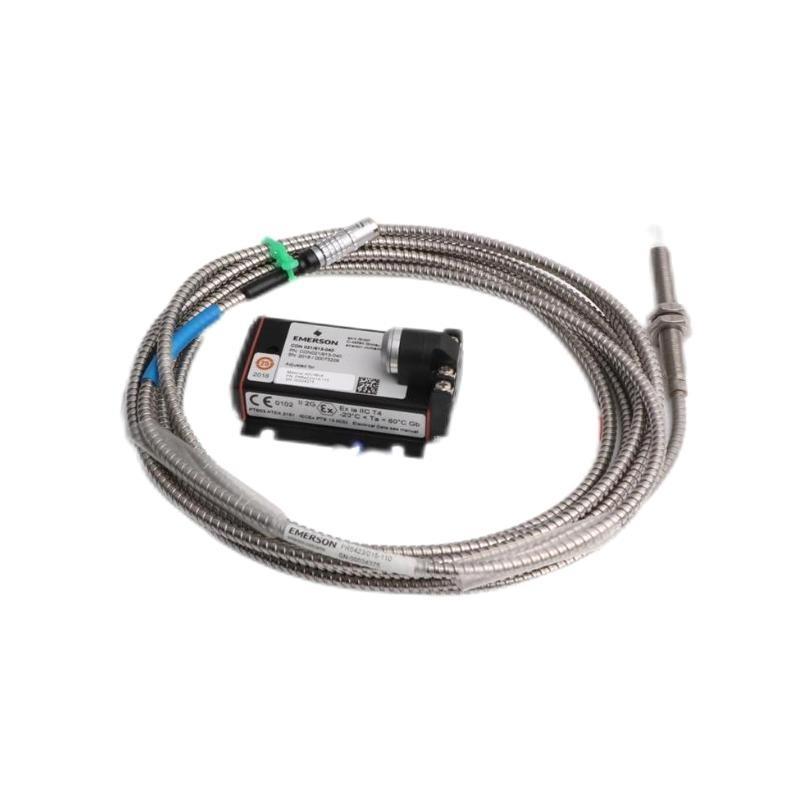

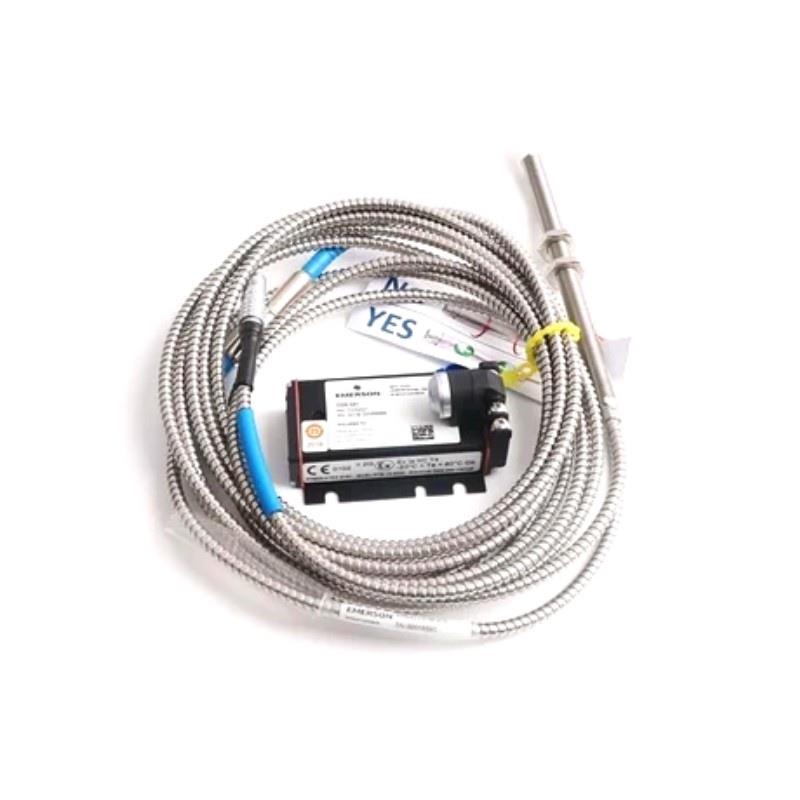

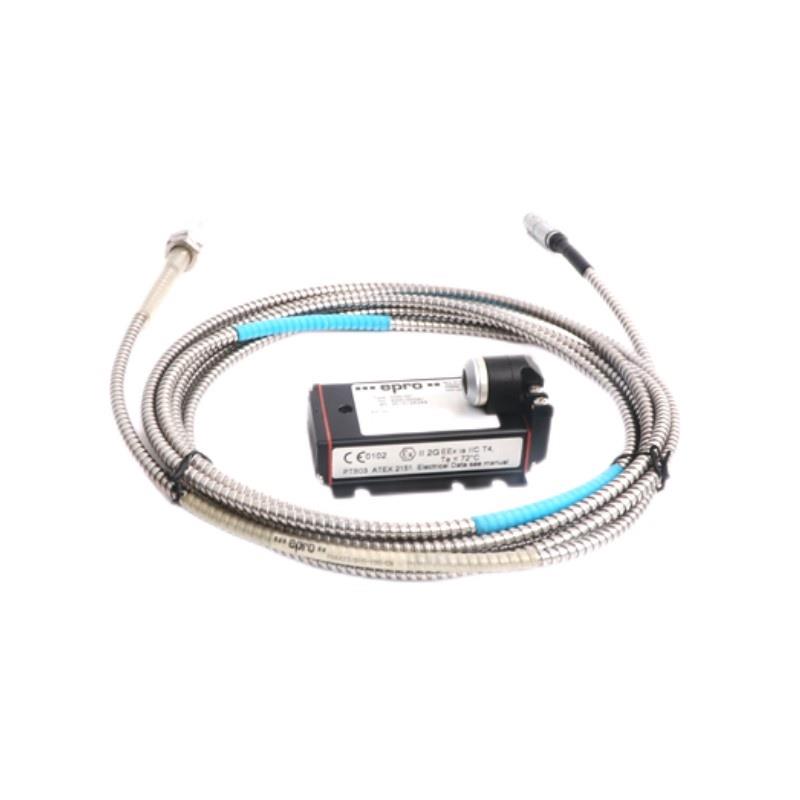

Epro PR6423/011-110+CON021 8mm Eddy Current Sensor+Signal Converter 12-Month Warranty

FAQ

What applications is the PR6423/011-110 sensor designed for?
It is designed for critical rotating machinery such as turbines, compressors, pumps, gearboxes, and fans to measure shaft displacement and eccentricity.

What installation precautions are required for the PR6423 sensor?
Ensure a clean mounting surface, proper alignment, and set the initial gap to approximately 0.5 mm for optimal performance.

Is the CON021 converter hot-swappable?
No, hot-swapping is not supported. Always connect or disconnect under power-off conditions to avoid equipment damage.

Can the sensor operate in high-temperature environments?
Yes, the PR6423 can function reliably in temperatures up to 180°C, making it suitable for most industrial applications.

Which converters are compatible with PR6423?
It is compatible with CON021 series converters, especially those configured for 2 mm standard range.

How do I choose the correct PR6423 model?
Selection depends on installation conditions including thread type (M10 or 3/8-24UNF), armored cable needs, mounting orientation, and cable length.

Is the output voltage range adjustable?
No, the output range is fixed based on the supply voltage and cannot be externally adjusted.

What shaft materials are recommended?
Use ferromagnetic materials such as 42CrMo4 (AISI 4140). Non-standard materials may impact accuracy.
