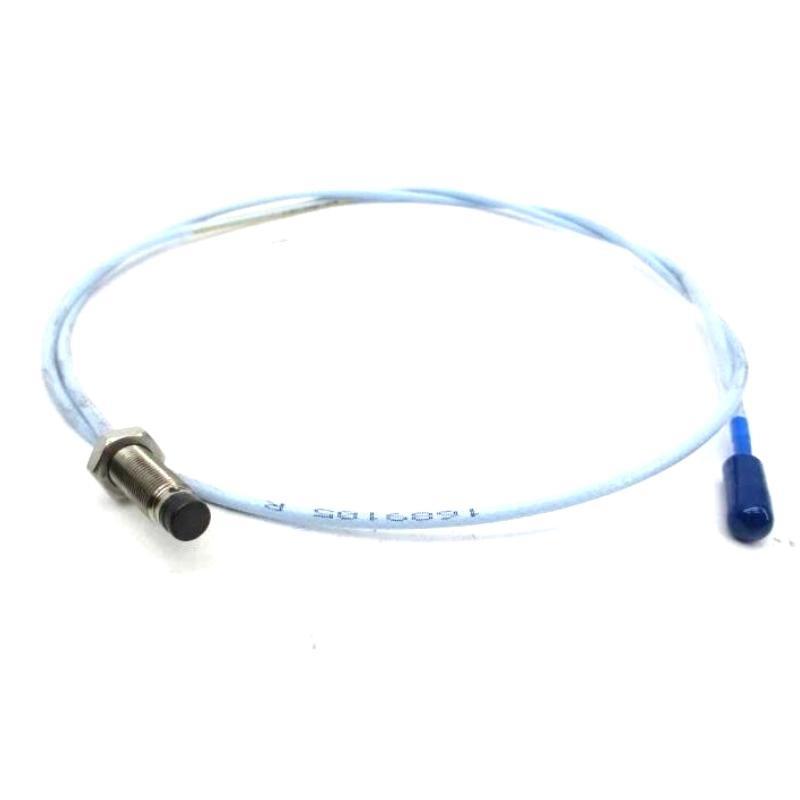

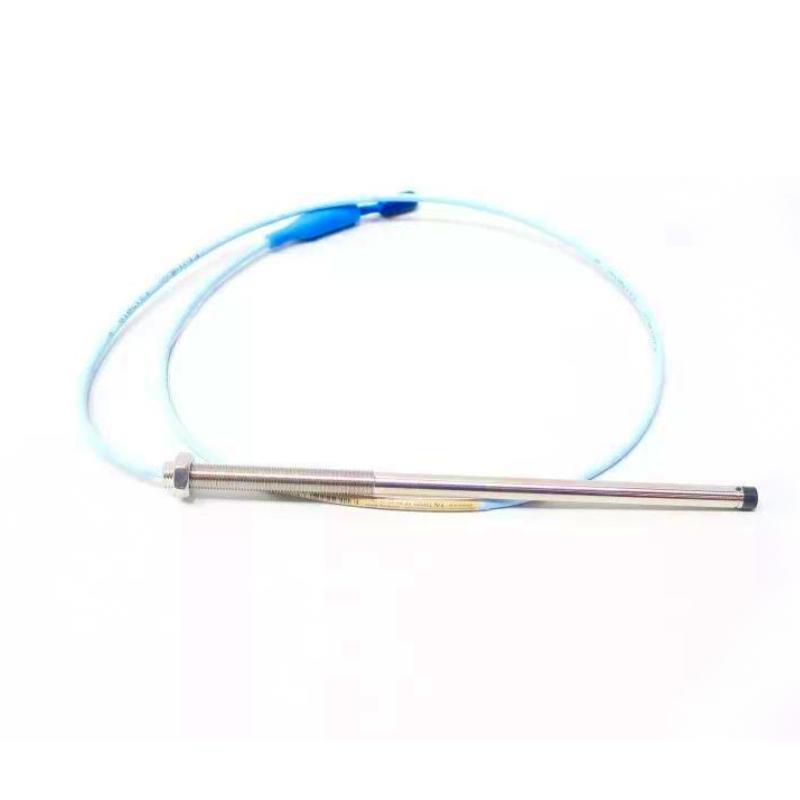

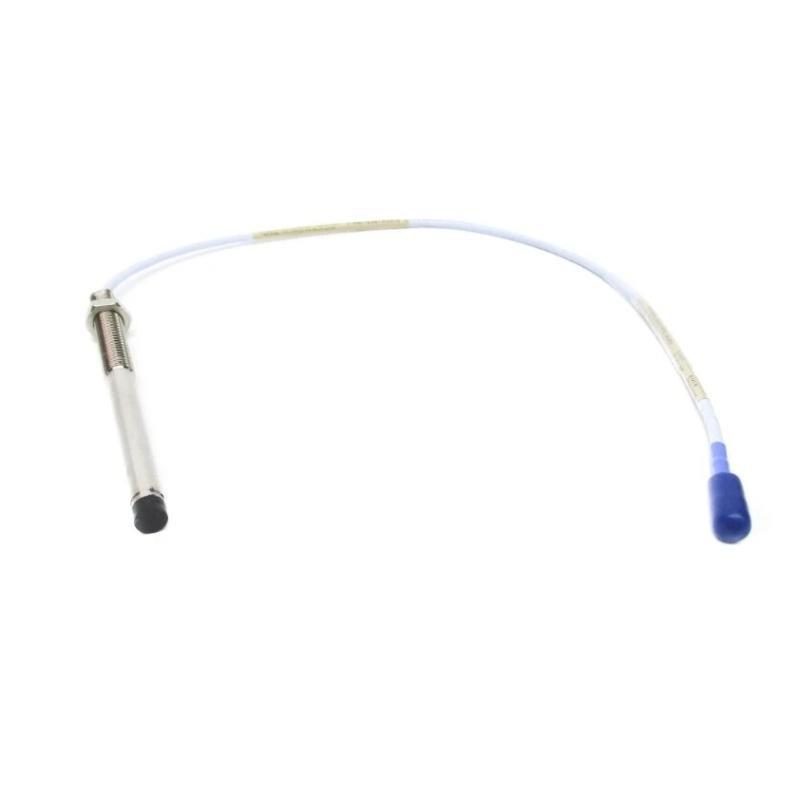

Bently Nevada 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe Fast Shipping!

FAQ

What types of measurements is this proximity probe suitable for?
It is suitable for both static (position) and dynamic (vibration) measurements, especially on fluid-film bearing machines such as turbines and compressors.

Is the 330101-00-63-20-12-05 model interchangeable with other probe models?
Yes, it is electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm system components.

What is the recommended minimum shaft diameter for installation?
The minimum shaft diameter is 50.8 mm (2 inches), with a recommended minimum of 76.2 mm (3 inches) to reduce signal cross-talk.

Is the total length of the probe fixed?
This specific model has a total length of 2.0 meters, but other lengths from 0.5 to 9 meters are available depending on the configuration.

Can this model be used in high-temperature environments?
Yes. The standard probe supports up to +177°C, and the Extended Temperature Range (ETR) version can operate up to +218°C for the tip and +260°C for the cable.

Does this product meet the API 670 standard?
Yes, the 3300 XL 8 mm system complies with the API 670 standard in terms of mechanical design, linear range, accuracy, and temperature stability.

Do I need to calibrate the probe and extension cable together?
No, all components in the 3300 XL system are fully interchangeable and factory calibrated, eliminating the need for matching or bench calibration.

What are the power supply requirements for the Proximitor Sensor?
It requires a -17.5 VDC to -26 VDC power supply with a maximum current consumption of 12 mA.
