Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

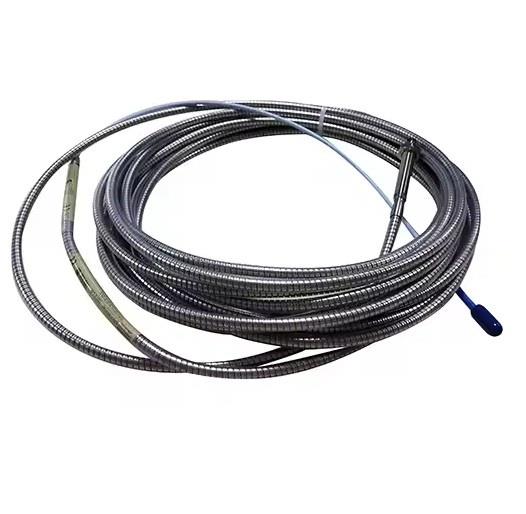

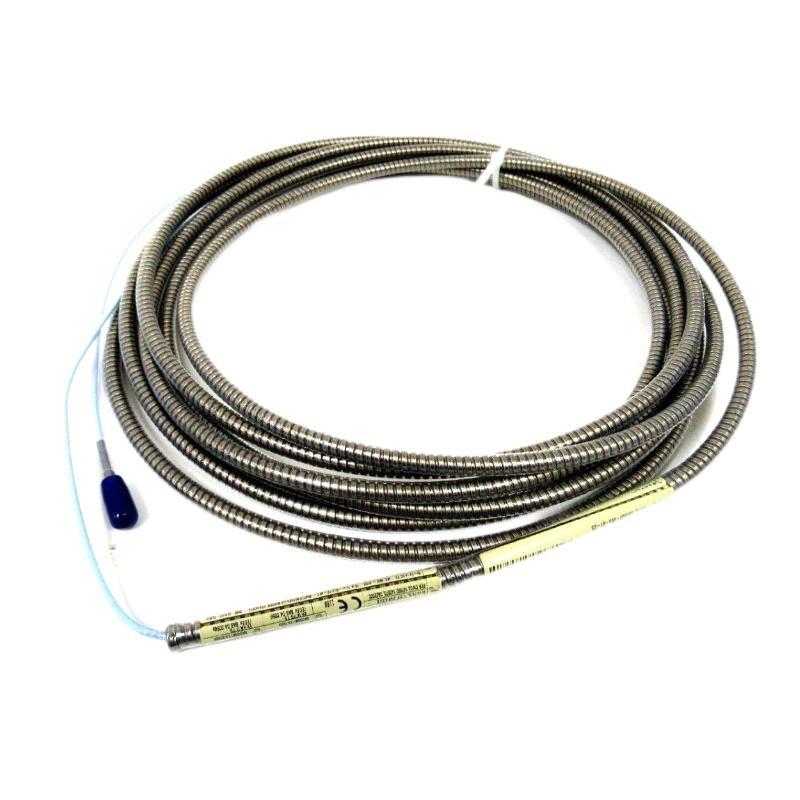

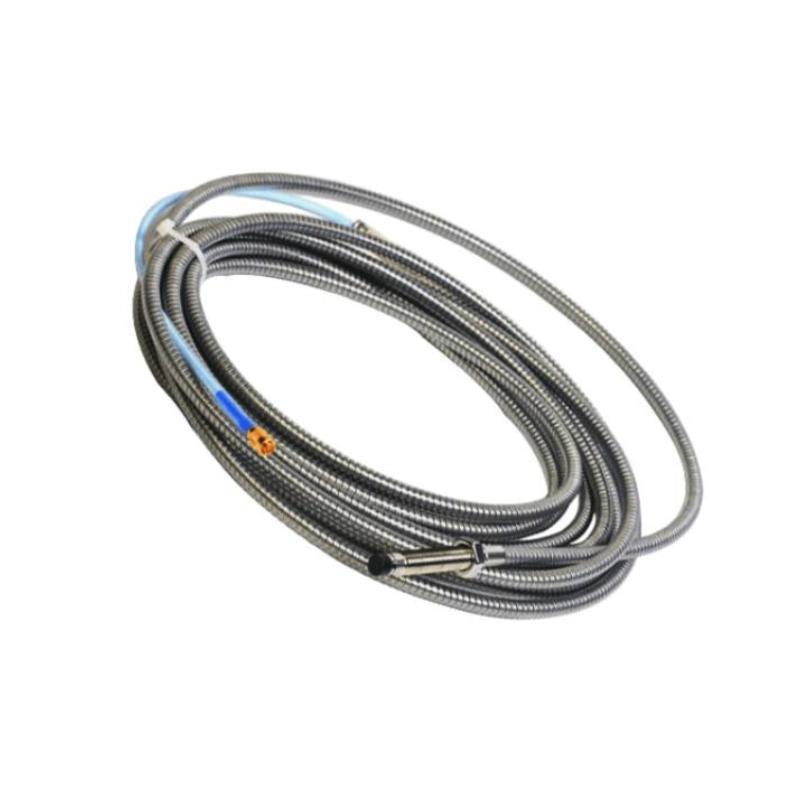

Bently Nevada 330930-040-02-00 3300 NSv Extension Cable 30-Day Returns！

Brand：Bently Nevada

Item No.：330930-040-02-00

Product Type：3300 NSv Extension Cable

Product Origin：USA

Dimensions：4.0 meters

Weight：0.256 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal source, test instructions can be coordinated, and after-sales service continues to follow up

Complete models, inventory is updated in real time, welcome to get the latest list!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What systems is the 330930-040-02-00 extension cable compatible with?
It is designed for use with the Bently Nevada 3300 XL NSv Proximity Transducer System, typically in compressors and bearing-equipped machinery with tight installation space.

What is the standard length of this cable?
This model has a length of 4.0 meters. Other lengths such as 4.5 m and 6.0 m are also available.

Is the cable resistant to chemicals?
Yes, the FEP insulation provides excellent chemical resistance for demanding environments.

Is stainless steel armor mandatory?
No, it is optional. Users can select armored or non-armored versions based on installation needs.

Does the connector feature a locking mechanism?
Yes, it uses ClickLoc gold-plated brass connectors that securely lock into place to prevent loosening.

What is the maximum tensile strength of the cable?
The cable can withstand up to 220 N (50 lb) of pull force at key connection points.

Is the cable waterproof?
It is not fully waterproof, but when used with connector protectors, it is resistant to most fluid ingress. Not recommended for submersion.

What is the cable’s operating temperature range?
The cable operates and can be stored in temperatures ranging from -52°C to +177°C.
