Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

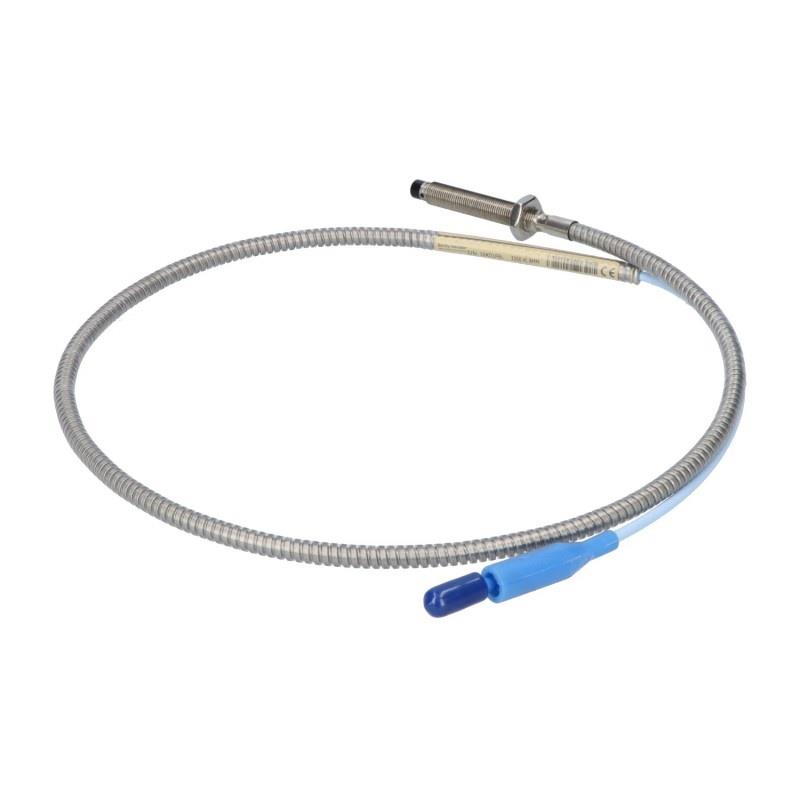

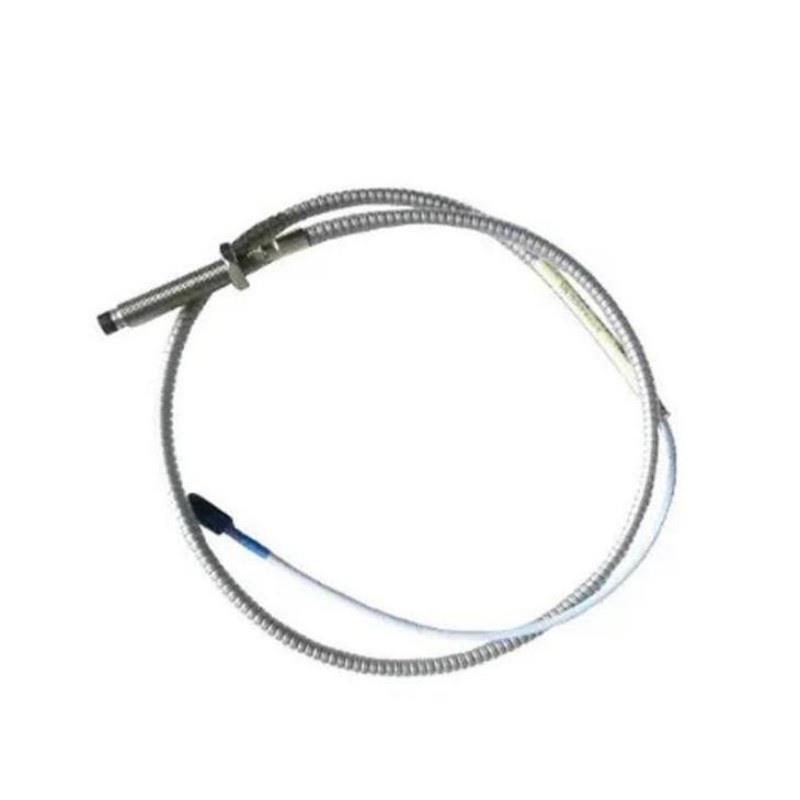

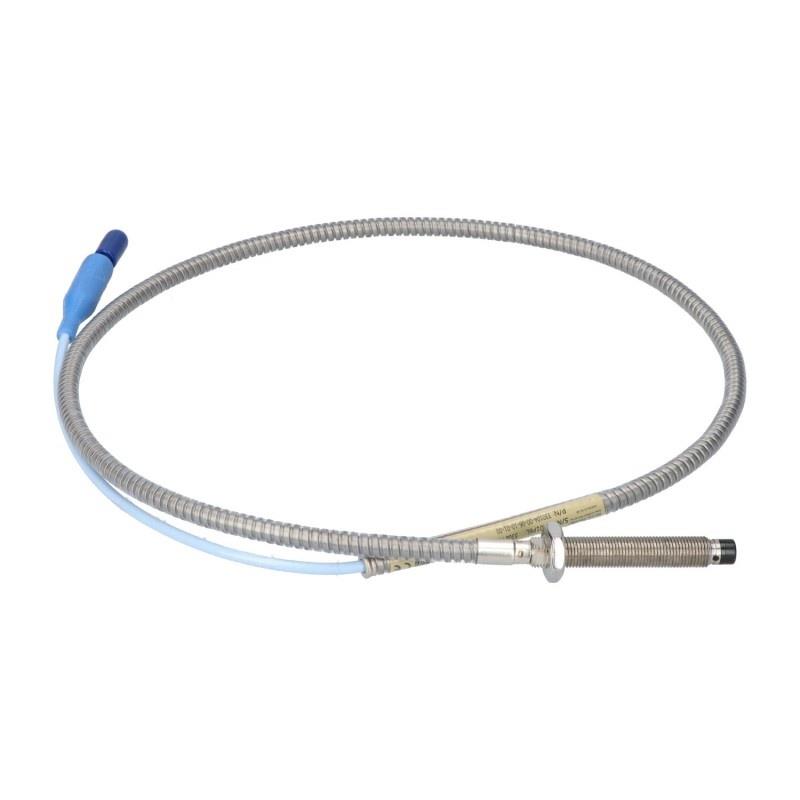

Bently Nevada 330104-00-15-10-01-05 3300 XL 8 mm Proximity Probe Original

Brand：Bently Nevada

Item No.：330104-00-15-10-01-05

Product Type：3300 XL 8 mm Proximity Probe

Product Origin：USA

Dimensions：1.0 meter

Weight：0.323 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What applications is this probe designed for?
It is primarily used for vibration and position monitoring in fluid-film bearing machines and also supports Keyphasor reference and speed measurements.

What is the supported operating temperature range?
The standard probe supports –52°C to +177°C. The Extended Temperature Range (ETR) version supports up to +218°C (probe tip) and +260°C (cable).

Does this model comply with API 670 standards?
Yes, the standard 5-meter system fully meets API 670 specifications for mechanical configuration, linear range, accuracy, and thermal stability.

Is it compatible with older 3300 series components?
Yes, the 3300 XL 8 mm system is electrically and mechanically interchangeable with legacy 3300 5 mm and 8 mm components.

What is the recommended gap setting for proper operation?
The recommended gap is approximately 1.27 mm (50 mils), corresponding to –9 Vdc output.

What is the minimum allowed cable bend radius?
The minimum cable bend radius is 25.4 mm (1.0 inch).

Does the connector require any tools for installation?
No, the ClickLoc connectors are finger-tight and designed for tool-free installation with a built-in locking mechanism.

What is the probe’s linear measurement range?
The linear range is from 0.25 mm to 2.3 mm (10 to 90 mils), ensuring precise displacement and vibration measurements.
