Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

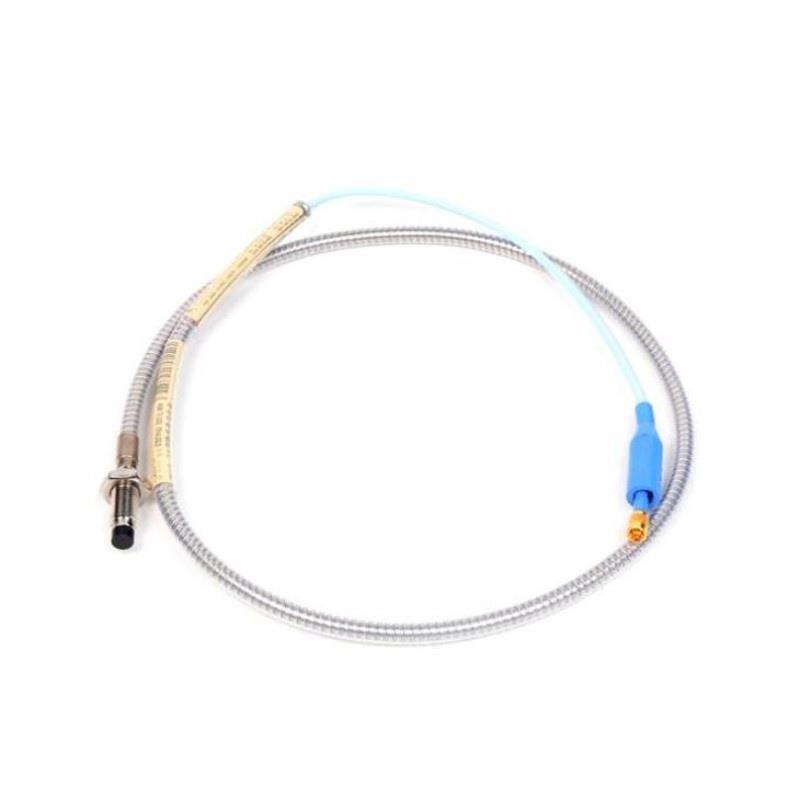

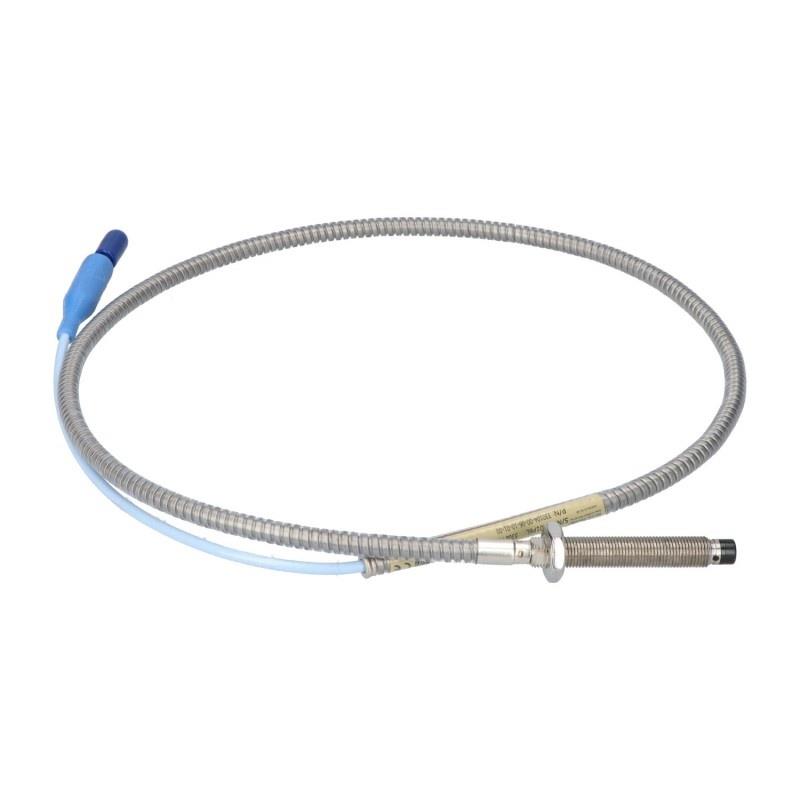

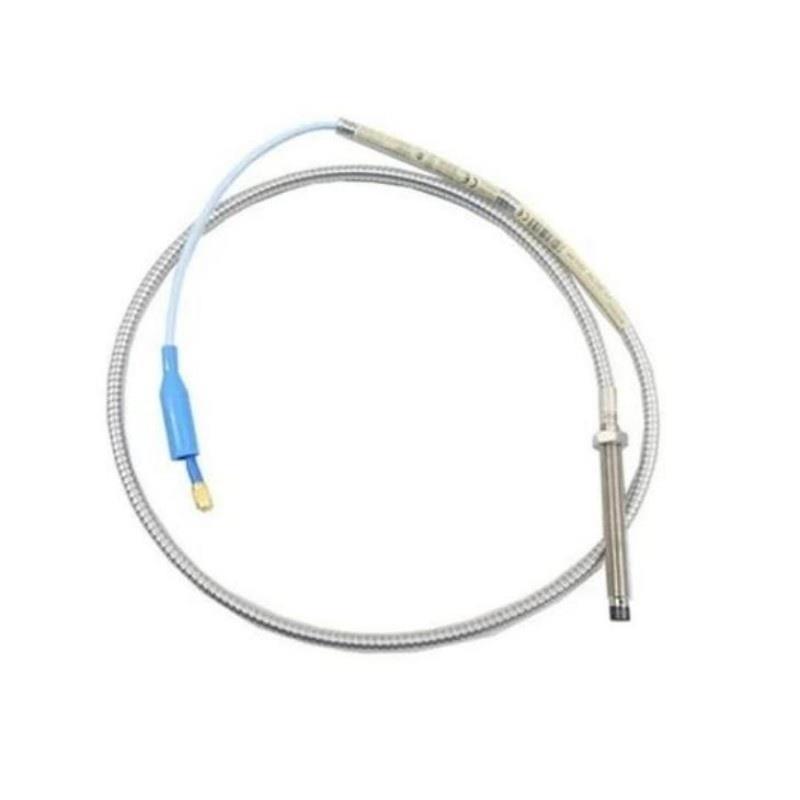

Bently Nevada 330104-00-15-10-02-CN 3300 XL 8 mm Proximity Probe Fast Shipping!

Brand：Bently Nevada

Item No.：330104-00-15-10-02-CN

Product Type：3300 XL 8 mm Proximity Probe

Product Origin：USA

Dimensions：1.0 meter

Weight：0.323 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular source, test instructions can be coordinated, and after-sales service continues to follow up

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What does the “330104-00-15-10-02-CN” part number mean?
It identifies a 3300 XL 8 mm probe with M10×1 thread, 1.5m case, 1.0m cable length, standard cable with ClickLoc connector, and CSA/ATEX/IECEx certification for China.

Can the 330104 probe be used with older 3300 series components?
Yes, it is both physically and electrically interchangeable with non-XL 3300 8 mm components.

Is calibration needed when replacing only the probe?
No. The 3300 XL system allows full interchangeability without the need for field calibration.

What is the impact of high temperature on measurement accuracy?
For standard probes, accuracy holds within ±10% ISF and ±3 mils DSL from -35°C to +120°C. For ETR probes, ±18% ISF and ±6 mils DSL up to 260°C.

How should the probe be installed to ensure proper sealing?
Follow Bently Nevada’s torque recommendations. For M10×1 reverse-mount, max torque is 22.6 N•m, recommended 7.5 N•m.

Does the probe require specific environmental protection?
Yes, use connector protectors especially in oily or harsh environments to prevent ingress and ensure long-term reliability.

What is the function of the ClickLoc connector?
It ensures a secure, finger-tight connection with an audible “click” and requires no tools.

What is the recommended minimum shaft diameter for accurate radial vibration measurements?
For optimal accuracy, the recommended minimum shaft diameter is 76.2 mm (3 inches). Smaller diameters may affect the scale factor and increase cross-talk between probes.
