Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

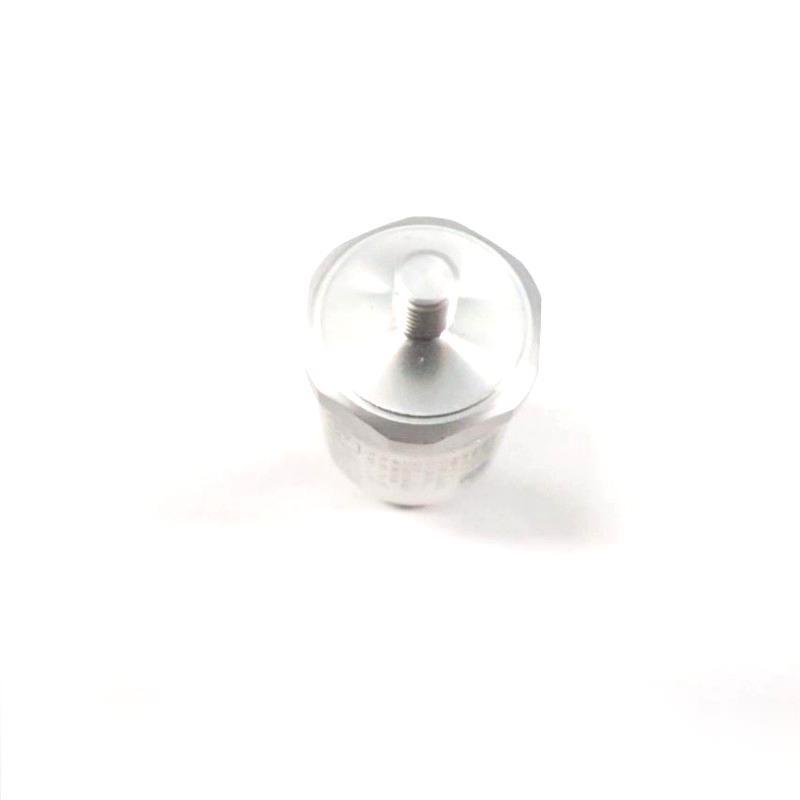

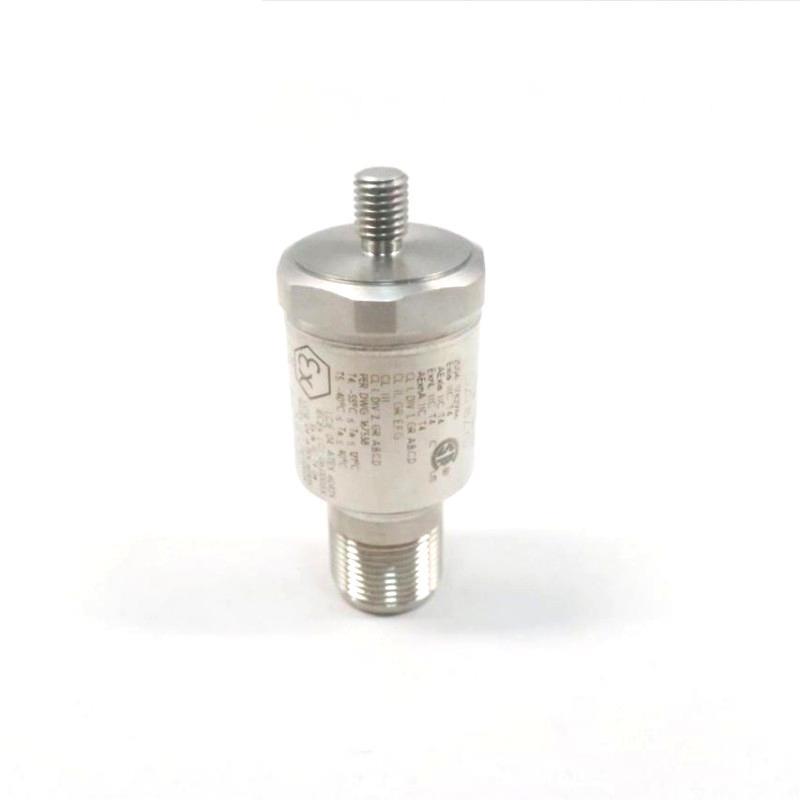

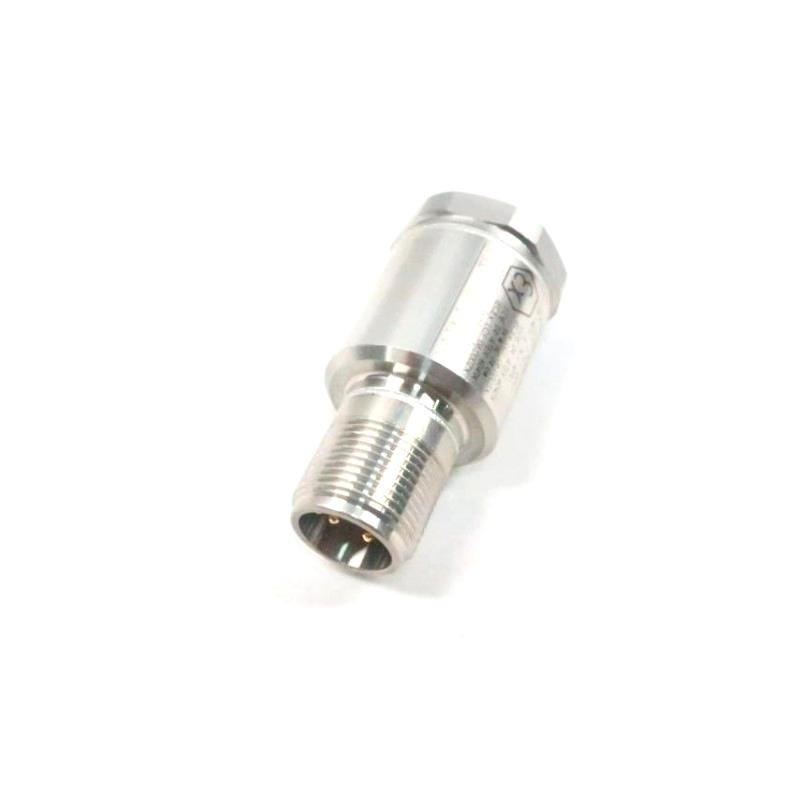

Bently Nevada 330400-01-05 Accelerometer Acceleration Transducer 100% New

Brand：Bently Nevada

Item No.：330400-01-05

Product Type：Accelerometer Acceleration Transducer

Product Origin：USA

Dimensions：23 mm

Weight：0.1kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channel supply, complete information can be checked, and supporting service guarantee

There are rich models in stock, which support quick docking of procurement needs. Welcome to inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ – Bently Nevada 330400-01-05

What is the primary use of the 330400-01-05 accelerometer?
It is designed for casing acceleration measurement in machinery condition monitoring, especially for critical applications like gear mesh monitoring.

What is the sensitivity of the 330400-01-05 transducer?
It has a sensitivity of 100 mV/g (10.2 mV/m/s²) ±5%.

What is the maximum acceleration the sensor can measure?
It can measure up to 490 m/s² (50 g) peak within the 10 Hz to 15 kHz frequency range.

What type of environments is the 330400-01-05 suitable for?
It is hermetically sealed and rated IP68, making it suitable for harsh and wet environments.

How should the sensor be mounted to ensure accuracy?
It should be mounted on bearing housing or machine casing using proper torque and mounting base to minimize strain sensitivity.

What is the temperature operating range of the sensor?
-55°C to +121°C (-67°F to +250°F).

What certifications does the 330400-01-05 have?
It has CSA, ATEX, and IECEx approvals for use in hazardous environments, including intrinsic safety standards.

What type of connector does the sensor use?
It uses a 3-pin MIL-C-5015 receptacle.
