Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

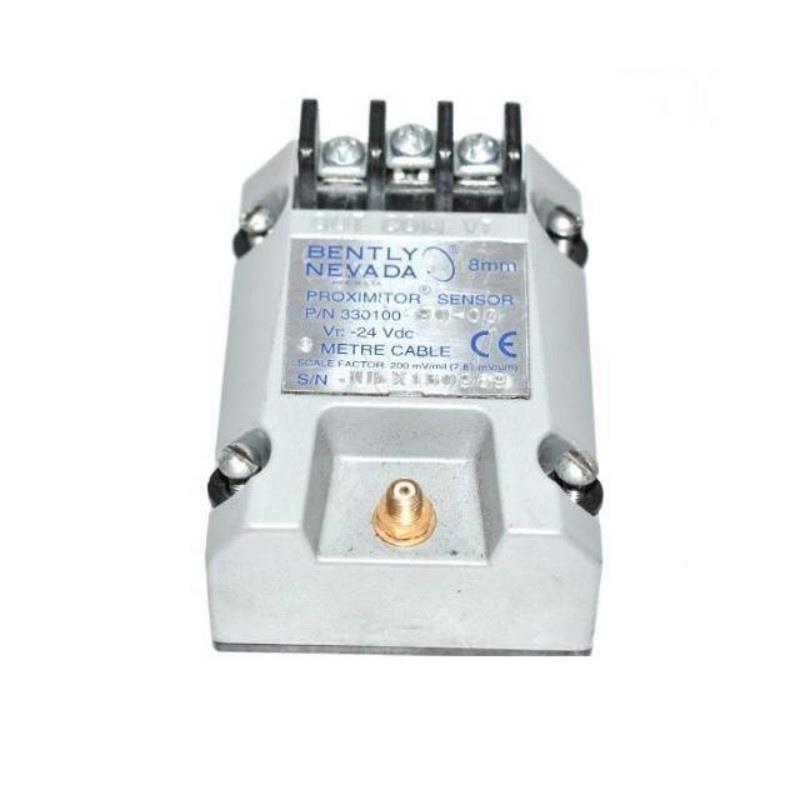

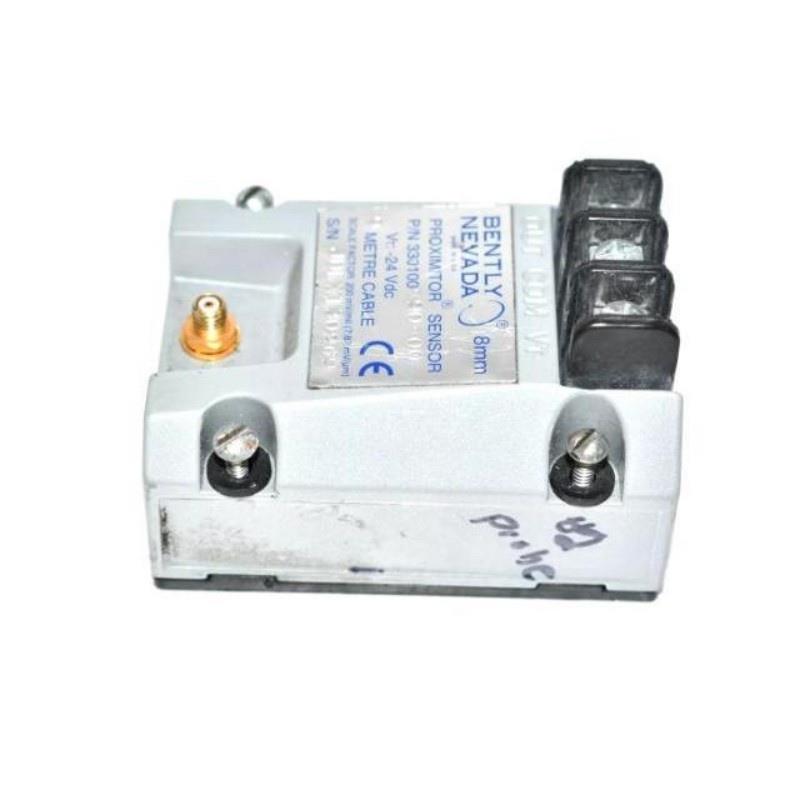

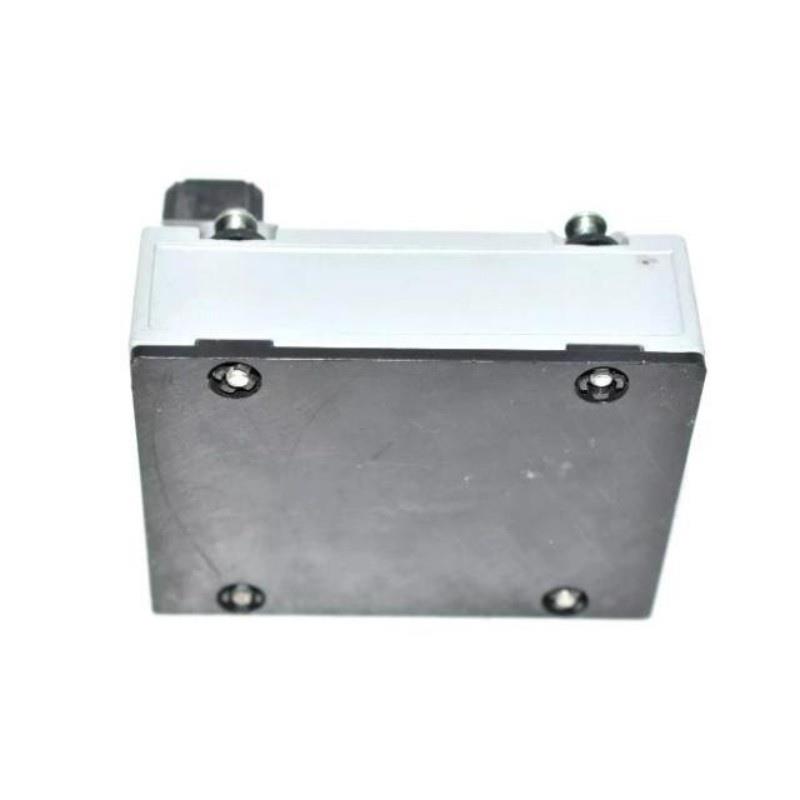

Bently Nevada 330100-90-00 3300 Proximitor Sensor 12-Month Warranty

Brand：Bently Nevada

Item No.：330100-90-00

Product Type：3300 Proximitor Sensor

Product Origin：USA

Dimensions：9.0 meters

Weight：0.25 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the function of the 330100-90-00 Proximitor Sensor?
It measures both static position and dynamic vibration of rotating machinery using eddy current technology.

What is the recommended gap setting?
The recommended gap between the probe and target is 1.27 mm (50 mils).

Is the system suitable for high-temperature environments?
Yes. The probe can withstand up to 177°C, and the sensor operates up to 100°C.

Can the components be interchanged without recalibration?
Yes. The system allows full interchangeability of probe, cable, and sensor without the need for recalibration.

What is the minimum shaft diameter recommended for reliable measurement?
While the absolute minimum is 50.8 mm, 76.2 mm or larger is recommended for accuracy.

What certifications does this product hold?
It meets CSA, BASEEFA, and CENELEC certifications for hazardous areas (Zones 0, 1, 2).

Does the system support long-distance wiring?
Yes, up to 305 meters (1000 feet) of field wiring is supported with shielded triad cables.

What materials are used in the probe construction?
The probe is made of 304 stainless steel with a polyphenylene sulfide (PPS) molded tip.
