Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

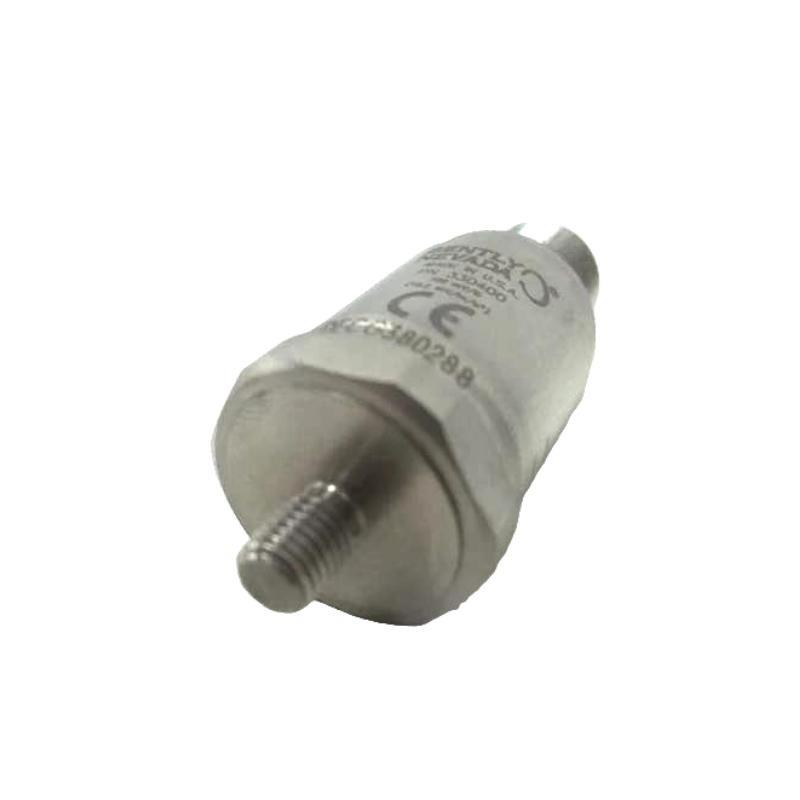

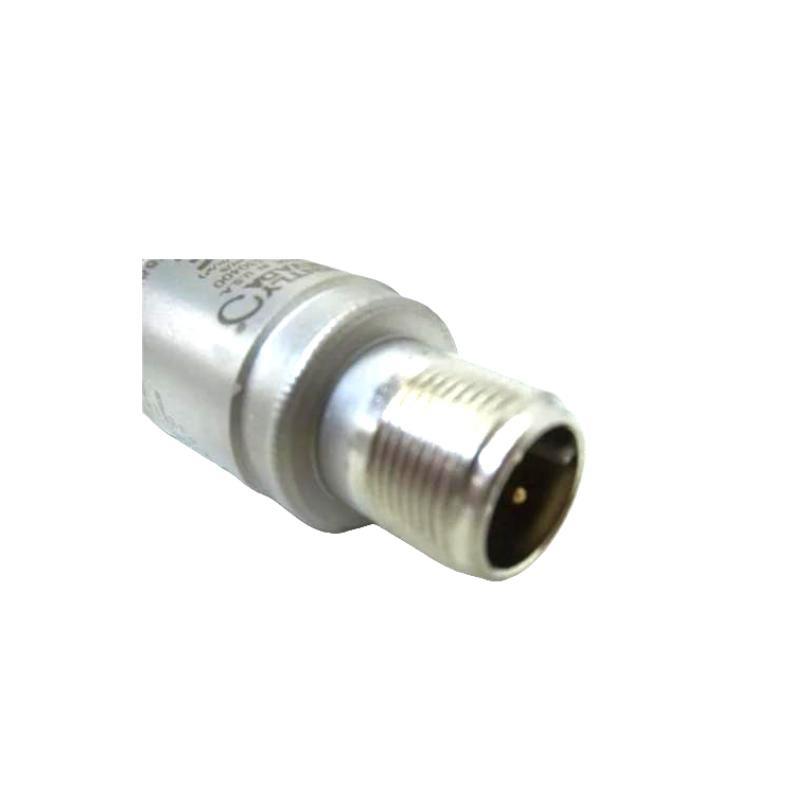

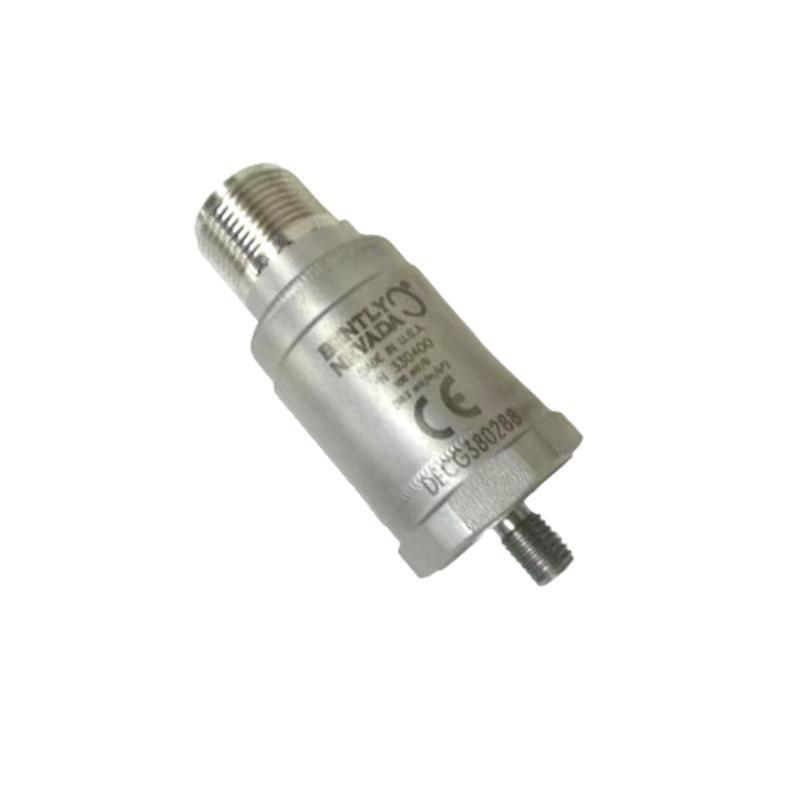

Bently Nevada 330400-01-00 Accelerometer Acceleration Transducer Fast Shipping!

Brand：Bently Nevada

Item No.：330400-01-00

Product Type：Accelerometer Acceleration Transducer

Product Origin：USA

Dimensions：23 mm

Weight：0.1kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

The model covers a wide range, and the delivery is efficient. Welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ（Q&A）

What are the primary application areas of the 330400-01-00 sensor?
It is primarily used for casing acceleration measurements in critical machinery such as gear mesh monitoring and bearing housing vibration detection.

What is the maximum cable length supported?
Up to 305 meters (1000 feet) with no signal degradation.

What output signal does this transducer provide?
It outputs a voltage signal with a sensitivity of 100 mV/g and bias voltage around -8.5 VDC.

Is it suitable for use in high humidity or submerged environments?
It can operate in 100% condensing humidity. The sensor itself is IP68 sealed, but the cable is not.

Are there any specific mounting surface requirements?
A surface finish of 32 microinch rms is recommended for optimal performance.

Does it have hazardous area certifications?
Yes, it is certified for use in hazardous areas (ATEX, IECEx, CSA, etc.).

Are there orientation restrictions for mounting?
No, it can be mounted in any orientation, allowing flexible integration.

What is the difference between 330400 and 330425?
330400 has a sensitivity of 100 mV/g and 50 g peak range, while 330425 offers 25 mV/g sensitivity and 75 g peak range.
