Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

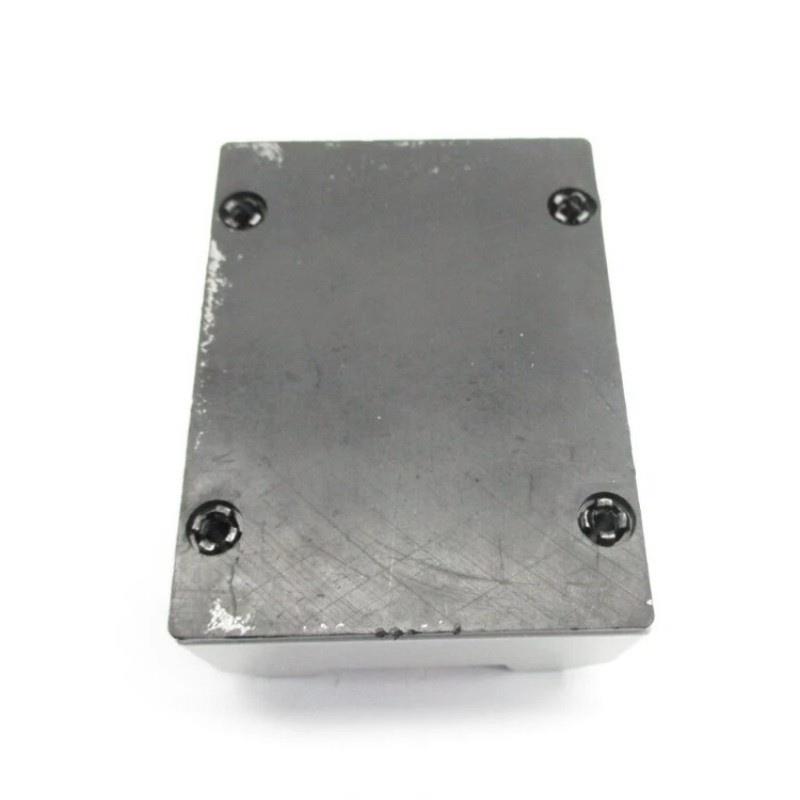

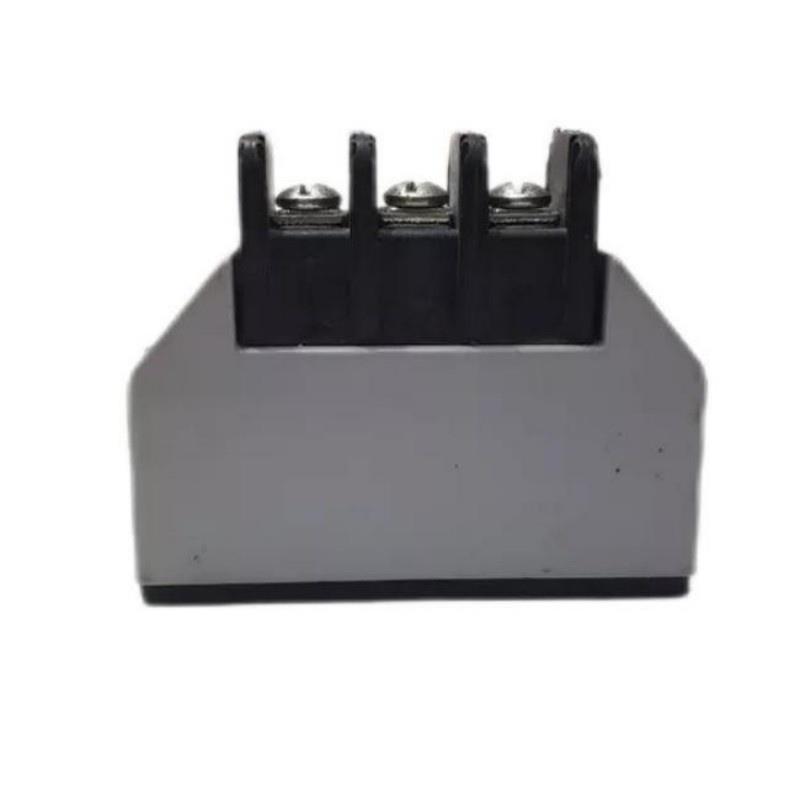

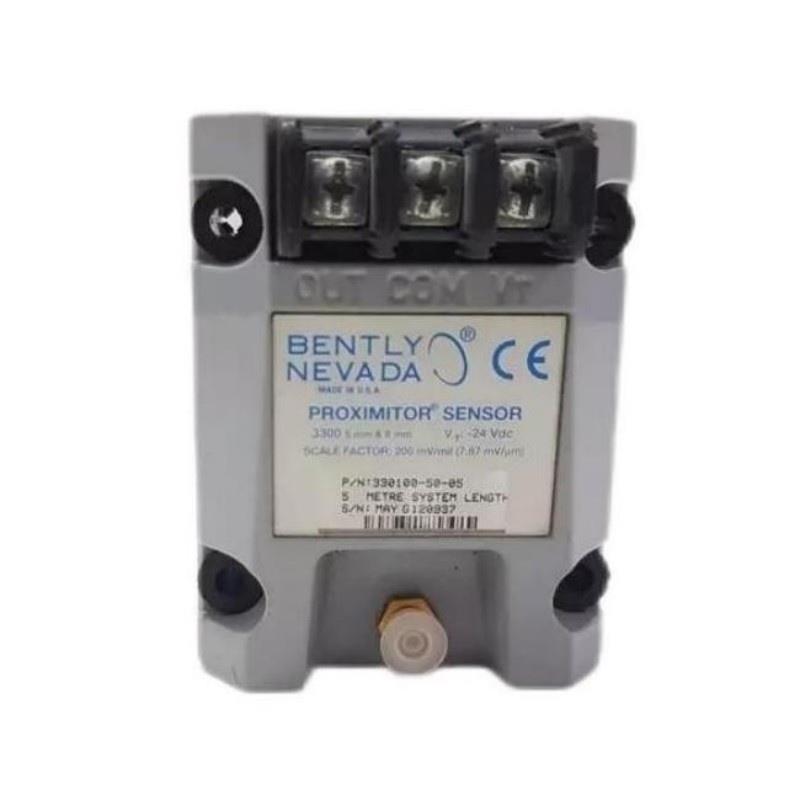

Bently Nevada 330100-50-05 3300 Proximitor Sensor Original

Brand：Bently Nevada

Item No.：330100-50-05

Product Type：3300 Proximitor Sensor

Product Origin：USA

Dimensions：5.0 meters

Weight：0.25 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original imported channel supply, support for testing instructions, worry-free after-sales

Ten thousand models in stock, quick matching needs, welcome to call for cooperation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the operating voltage range of the 330100-50-05 sensor?
It operates from -17.5 Vdc to -26 Vdc. Operating above -23.5 Vdc may reduce the linear range.

What is the total system length supported?
The system is designed for a total length of 5.0 meters, combining probe and extension cable.

What is the recommended gap for installation?
A 1.27 mm (50 mils) gap is recommended for optimal linear response.

What is the minimum shaft diameter for proper operation?
The recommended minimum is 76.2 mm. Smaller diameters can cause signal interference.

How stable is the sensor over temperature changes?
Within -35°C to +177°C, the scale factor deviation remains within ±10%.

What certifications does this model carry?
It complies with CE mark, CSA/NRTL/C, BASEEFA, and CENELEC hazardous area approvals.

What materials are used in the probe construction?
The probe uses AISI 304 stainless steel housing and PPS tip, ensuring durability and chemical resistance.

Does the system require matched calibration between components?
No individual matching or calibration is required; all parts are fully interchangeable.
