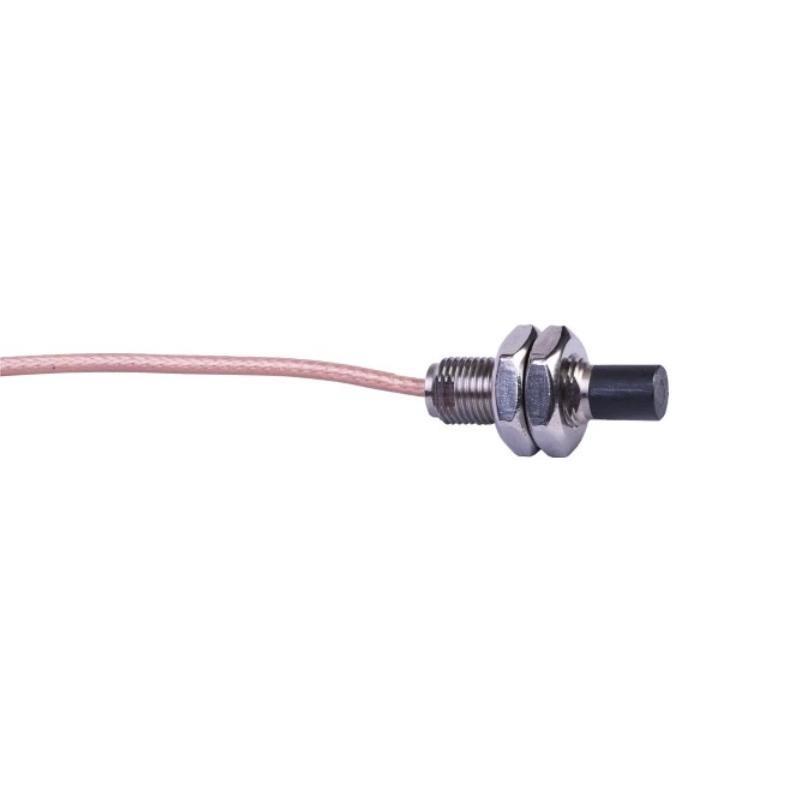

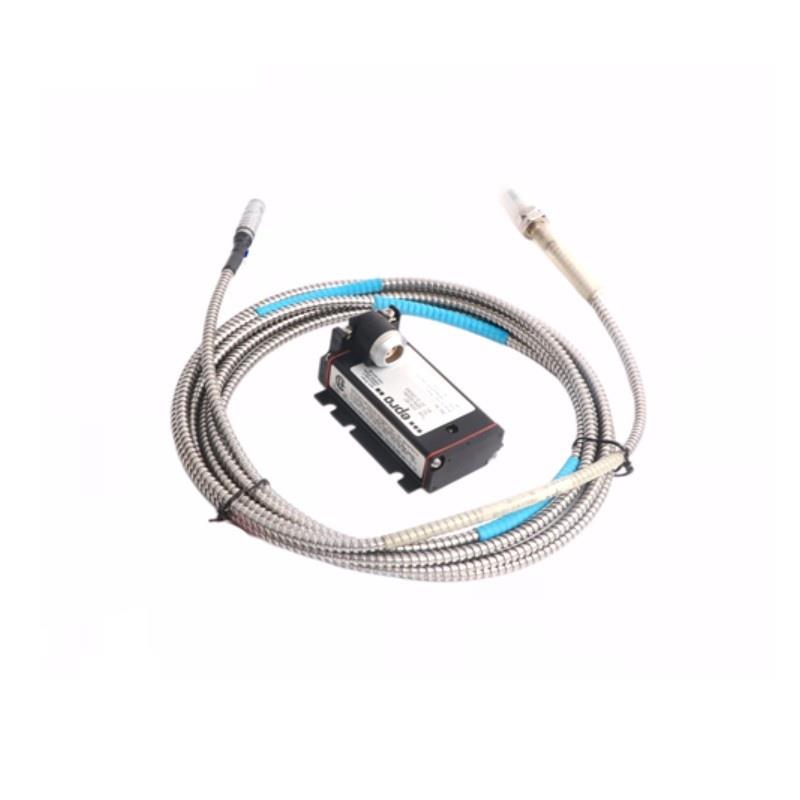

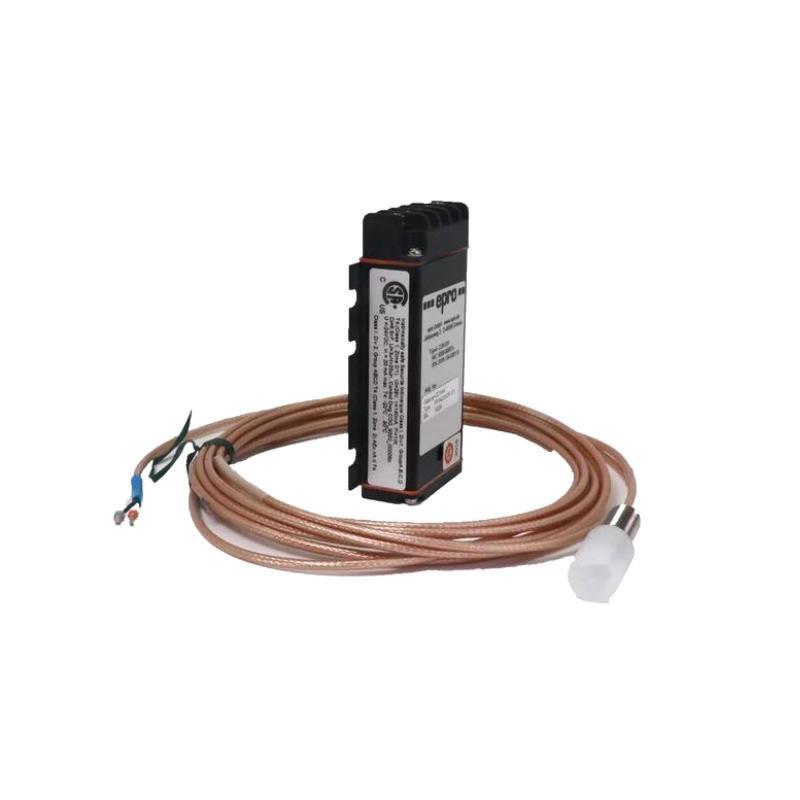

Epro PR6423/10R-040 8mm Eddy Current Sensor 12-Month Warranty

Frequently Asked Questions (FAQ)

What are the typical applications of PR6423/10R-040?
It is typically used for dynamic shaft displacement, position, eccentricity, and speed monitoring in turbines, compressors, gearboxes, pumps, and fans.

Does this sensor have hazardous area approvals?
Yes, it is certified for ATEX, IECEx, and CSA intrinsic safety and non-sparking applications, depending on the converter used.

Can it operate in high-temperature environments?
Yes, the sensor can withstand up to +180°C, and the cable/connector up to +150°C.

What is the minimum shaft diameter the sensor can detect?
The minimum detectable shaft diameter is 25 mm.

Is the cable length customizable?
Yes, options include 4m, 5m, 8m, 9m, and 10m cable lengths based on the ordering code.

Is there a radiation-hardened version available?
Yes, the PR6423/xxx-xxx-RAD version is designed for radiation environments.

Is the output signal linear and standardized?
Yes, it offers a linear output of 8 V/mm with ±5% accuracy.

Is the material suitable for harsh industrial environments?
Yes, the stainless-steel casing offers corrosion resistance for industrial use.
