Product Introduction

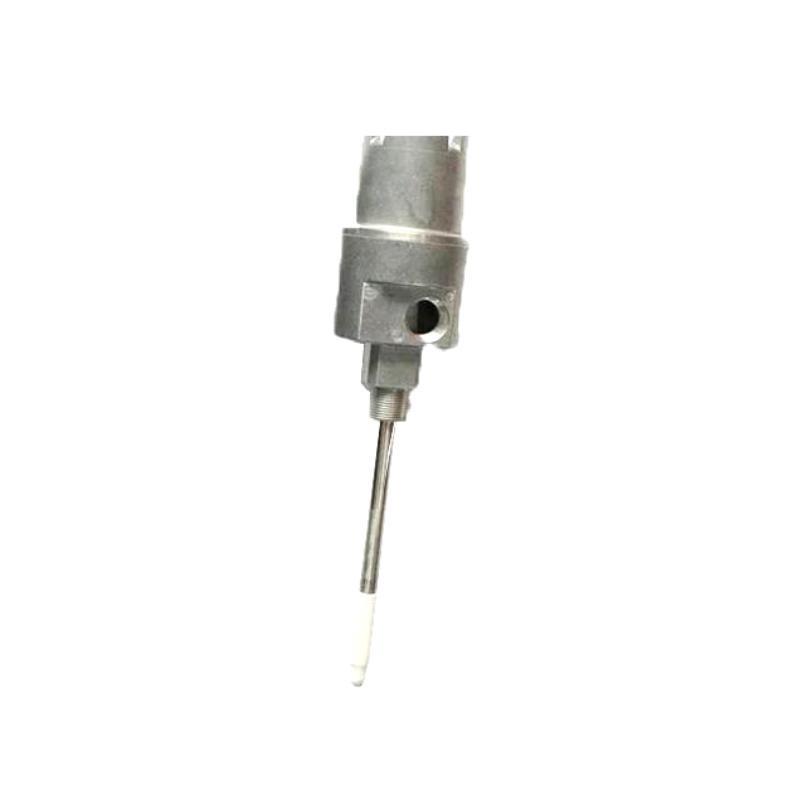

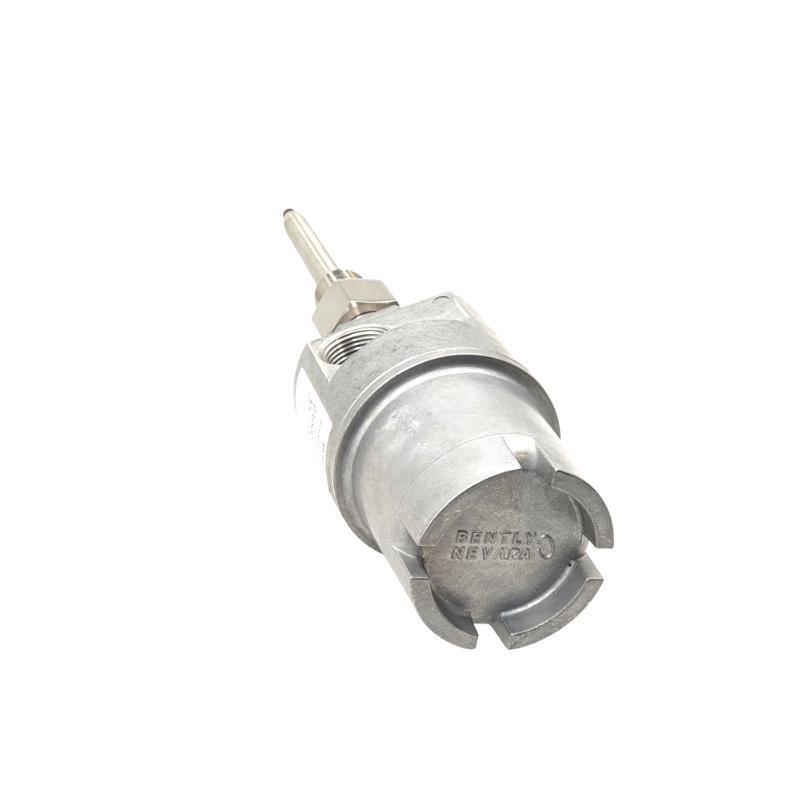

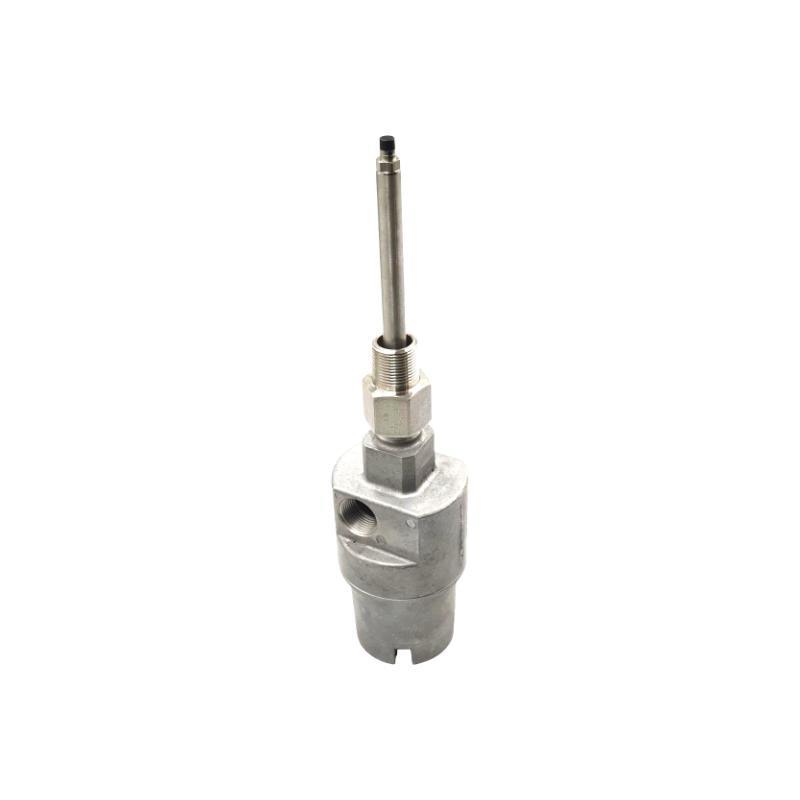

Bently Nevada 21000-16-10-15-085-03-02 Proximity Probe Housing Assemblies Unbelievable Prices!

Brand：Bently Nevada

Item No.：21000-16-10-15-085-03-02

Product Type：Proximity Probe Housing Assemblies

Product Origin：USA

Dimensions：83.3 mm

Weight：1.1 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Regular channels, complete test instructions, and responsive services

Regular models are in stock for a long time, the inventory is stable, welcome to inquire about the price!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the diameter and weight of the 21000 Proximity Probe Housing?
The housing body diameter is 83.3 mm (3.28 in) and the weight is 1.1 kg (2.4 lbs), not including fittings.

What is the operating temperature range for this assembly?
The operating temperature range is -51°C to +177°C (-60°F to +351°F) for compatible probes.

Which probes are supported with this housing assembly?
The assembly supports 3300 XL 8mm, 3300 XL 11mm, and 3300 NSv proximity probes.

Is this housing certified for use in hazardous areas?
Yes, the 21000 housing is CSA certified for explosion-proof use in hazardous areas and is CSA Type 4 rated.

What materials are used in the construction of the 21000 housing?
The 21000 housing uses an aluminum body with a 304 stainless steel sleeve.

What are the mounting thread options for this housing?
Mounting thread options include as cast (no thread), 3/4-14 NPT, 1-11 1/2 NPT, 1/2-14 BSP, and 7/8-14 UNF-2A.

Can the sleeve length be customized?
Yes, the sleeve length is customizable per order. Standard lengths are available up to 304 mm, with longer sleeves requiring additional support.

Does the 21000 housing meet industry standards?
Yes, it is compliant with API 670 for externally mounted proximity probe housings and meets RoHS standards.
