Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

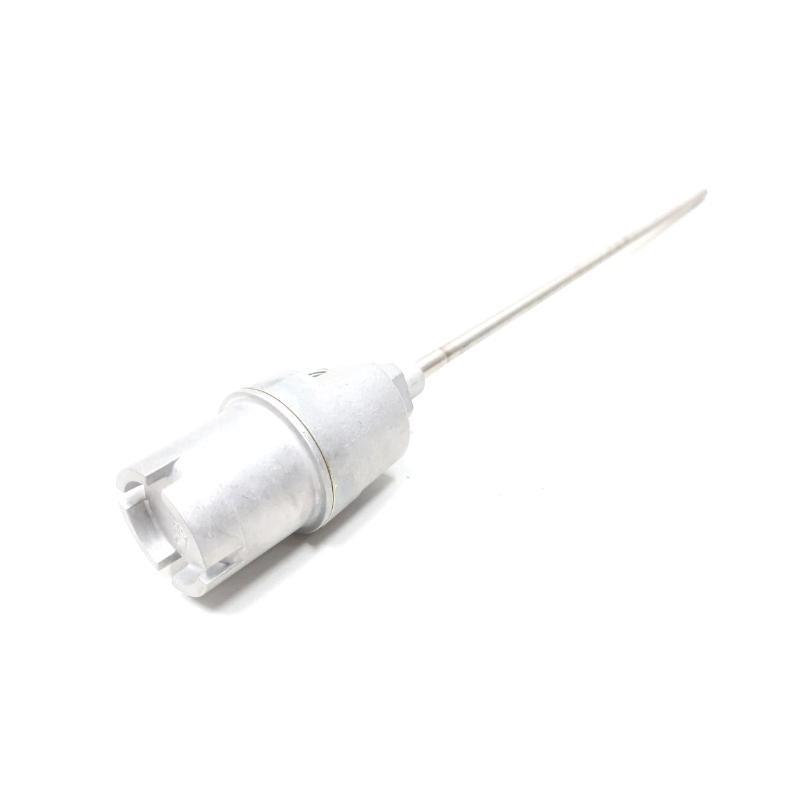

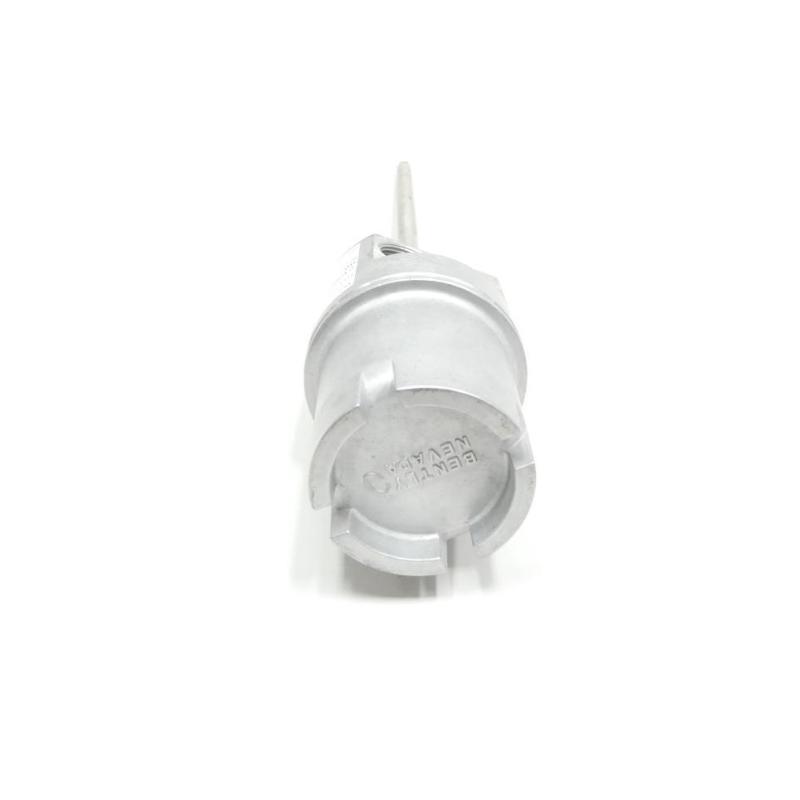

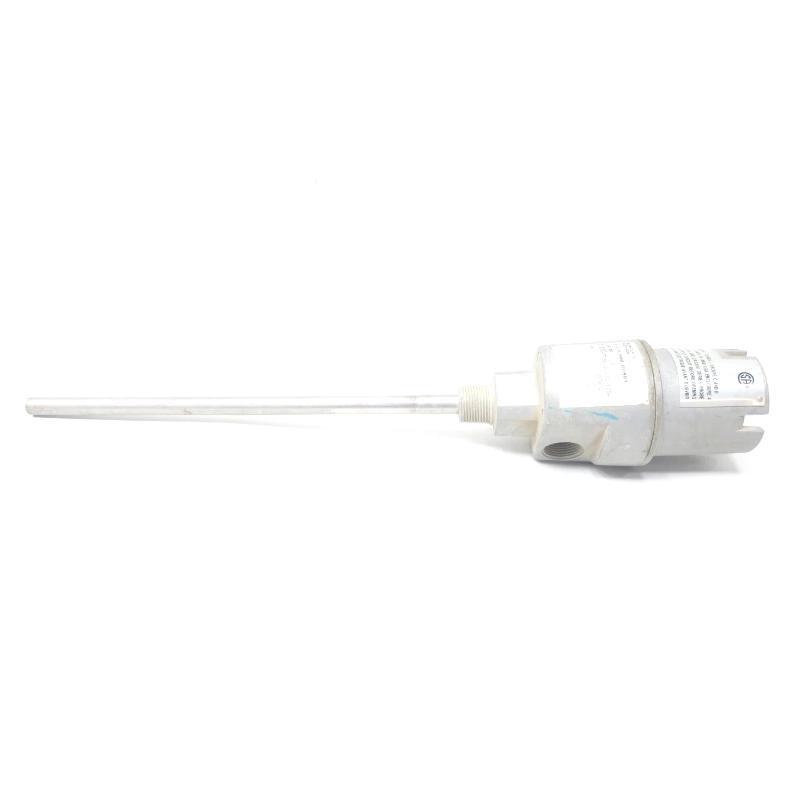

Bently Nevada 21000-34-10-20-058-04-02 Proximity Probe Housing Assemblies Original

Brand：Bently Nevada

Item No.：21000-34-10-20-058-04-02

Product Type：Proximity Probe Housing Assemblies

Product Origin：USA

Dimensions：83.3 mm

Weight：1.1 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Clear and reliable product source, support for third-party testing, complete after-sales support

Rich spot models, support for quick docking of procurement needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What probes are compatible with the 21000 housing?
The 21000 housing is compatible with 3300 XL 8mm, 11mm, and NSv reverse-mount probes.

Is the 21000 housing explosion-proof?
Yes, the 21000 series is CSA certified for Class I Div 1 & 2, Groups C and D hazardous areas.

What is the maximum allowable probe penetration length?
The combined C + D dimension can reach up to 742 mm. For lengths over 304 mm (12 in), sleeve support is required.

Is the housing suitable for corrosive environments?
The aluminum 21000 model offers general protection; for higher corrosion resistance, consider the 24701 stainless steel version.

Are cable seals mandatory?
No, but they are recommended for environmental protection and sealing.

Does this housing comply with API 670 standards?
Yes, it fully meets API 670 requirements for externally mounted proximity probe housings.

Are there orientation restrictions when mounting the probe sleeve?
The probe sleeve is reverse-mounted and should be installed according to machine geometry and design.

Can the probe be replaced in the field?
Yes, probes are threaded and can be easily removed and replaced on site.
