Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

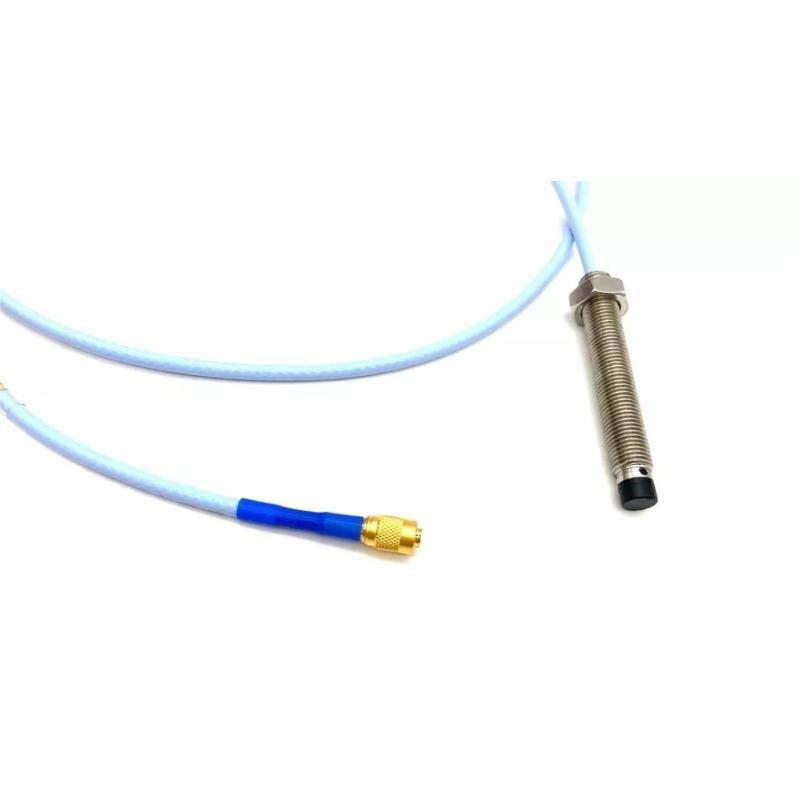

Bently Nevada 330101-00-09-10-02-05 3300 XL 8 mm Proximity Probe 12-Month Warranty

Brand：Bently Nevada

Item No.：330101-00-09-10-02-05

Product Type：3300 XL 8 mm Proximity Probe

Product Origin：USA

Dimensions：1.0 meter

Weight：0.323 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

This product is imported from overseas, supports test report assistance, and smooth after-sales docking

The model covers a wide range and the delivery is efficient. Please contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the primary function of the 330101-00-09-10-02-05 probe?
It measures shaft vibration and position in fluid-film bearing machines using eddy current principles.

Is this probe compatible with older 3300 series systems?
Yes, it’s both electrically and physically compatible with non-XL 3300 5 mm and 8 mm components.

Can this probe be used in high-temperature environments?
Yes, the extended temperature version supports up to +218°C at the probe tip and +260°C on the cable.

What is the recommended gap voltage setting?
The recommended DC gap voltage for radial vibration is -9 VDC, equivalent to ~1.27 mm (50 mils).

Is any calibration required before use?
No. It comes factory calibrated for AISI 4140 steel. Custom calibrations are available upon request.

How should I install the probe for best reliability?
Use the specified torque (11.2 N·m recommended for standard forward mount), observe bend radius, and install connector protectors.

What materials are used for connectors?
Gold-plated brass or gold-plated beryllium copper ensures corrosion resistance.

Can this probe be used in hazardous environments?
Yes, it holds ATEX, CSA, and IECEx certifications and supports intrinsically safe and non-incendive applications.
