Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

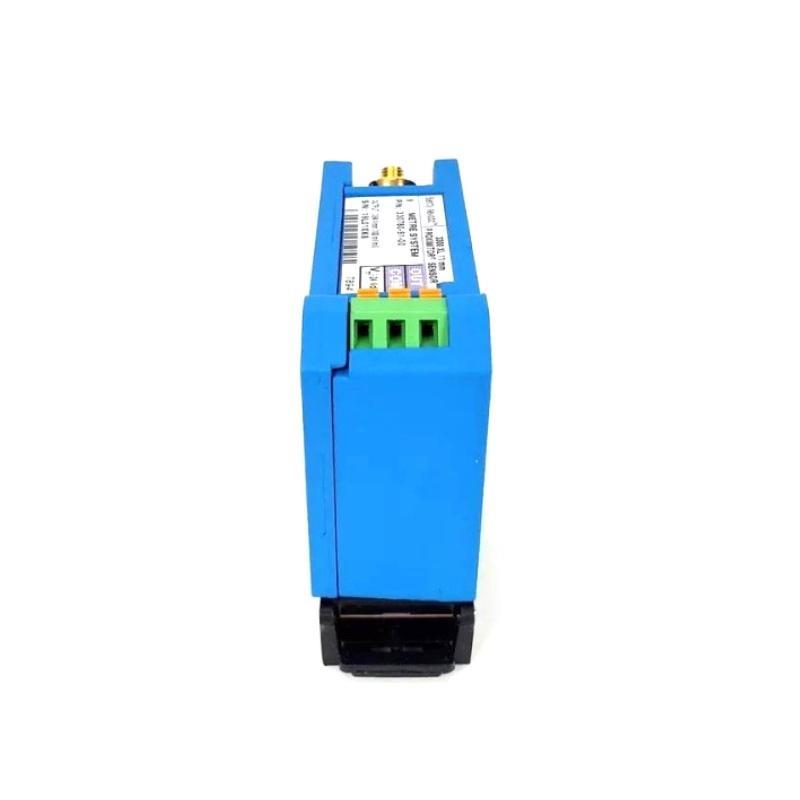

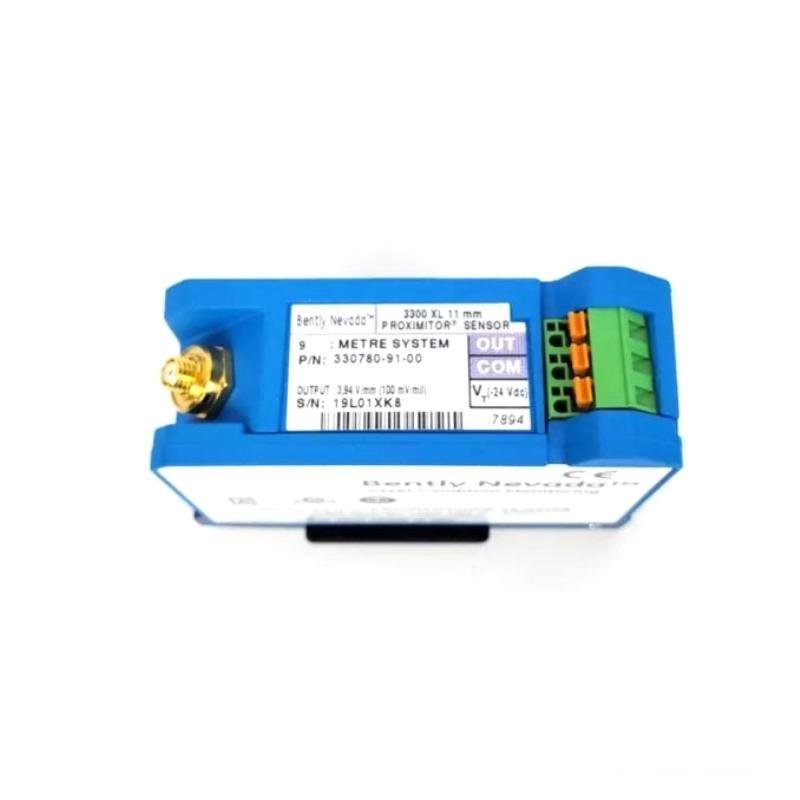

Bently Nevada 330780-91-00 3300 XL 11 mm Proximitor Sensor 12-Month Warranty

Brand：Bently Nevada

Item No.：330780-91-00

Product Type：3300 XL 11 mm Proximitor Sensor

Product Origin：USA

Dimensions：9.0 meters

Weight：0.255 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Compliant import, support for testing, and fast response to after-sales service

Product inventory is continuously updated, and order needs are quickly responded to. Welcome to call for consultation!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary application of this sensor?
It is designed for non-contact vibration and displacement measurements including thrust position, differential expansion, rod drop, tachometer, and Keyphasor signals.

What advantage does the 11 mm system have over the 8 mm system?
The 11 mm system offers a longer linear range (up to 5 mm), making it more suitable for applications like thrust or expansion measurements.

Can this sensor be used interchangeably with the older 7200 series?
No. The 3300 XL 11 mm system components are not compatible with the 7200 series and must be replaced entirely.

Does the sensor support DIN rail mounting?

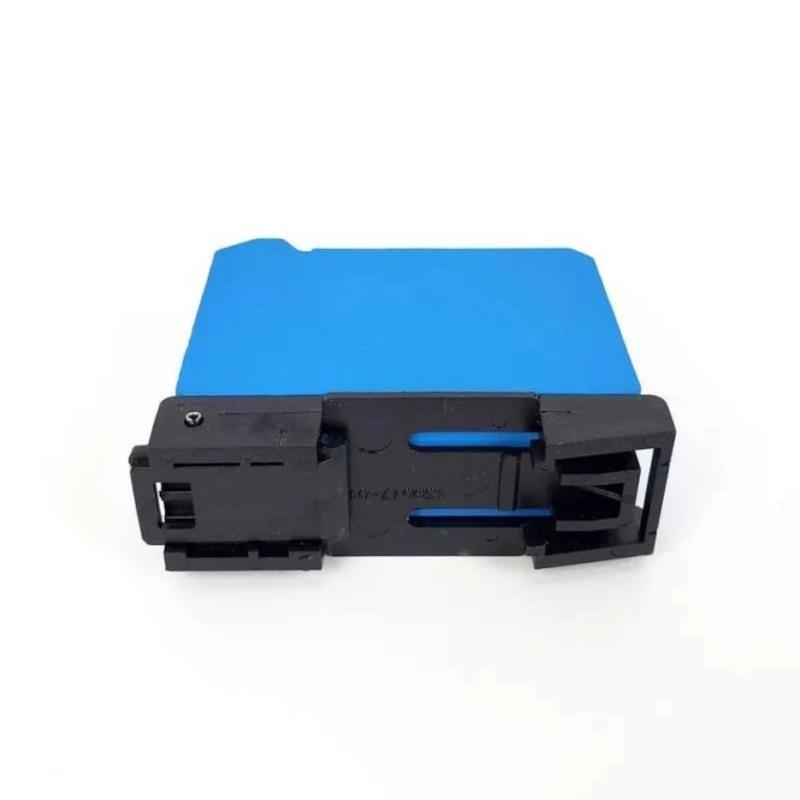

Yes. The 330780-91-00 model is specifically designed for DIN rail installation.

Is the probe suitable for high-temperature environments?
Yes. The probe supports temperatures up to +177°C, ideal for industrial applications.

Does the system have electromagnetic interference resistance?
Yes. It includes enhanced RFI/EMI immunity and meets CE certification requirements.

What is the maximum allowable cable length?
The combined probe and extension cable length must not exceed 9.0 meters. Field wiring to monitor can extend up to 305 meters.

Are there hazardous area certifications available?
Yes. The sensor is certified for intrinsic safety (ia) and non-incendive (nA/ec) operation, supporting Zone 0 and Zone 2 classifications.
