Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

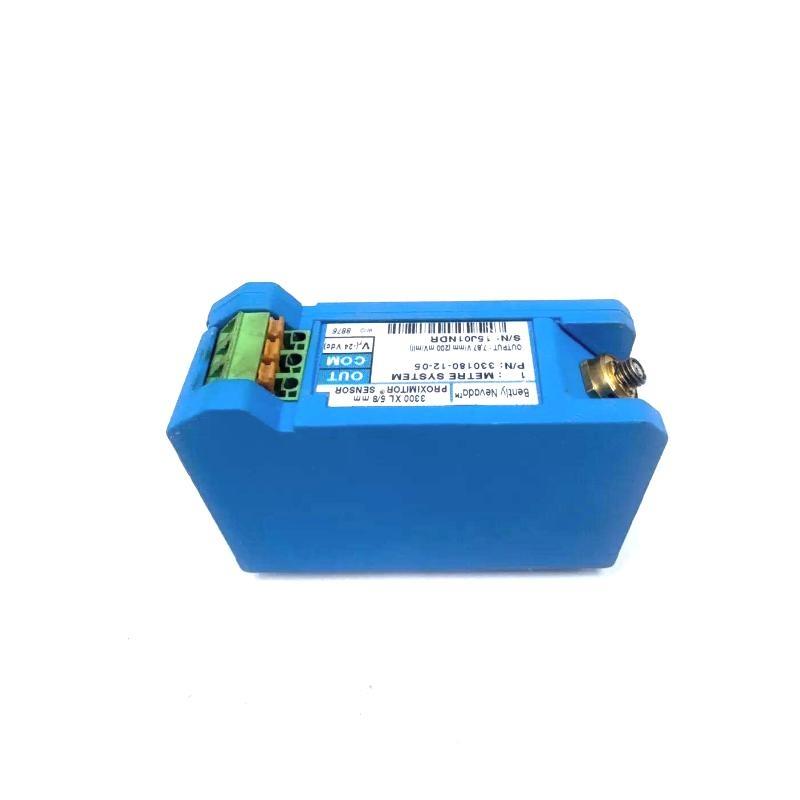

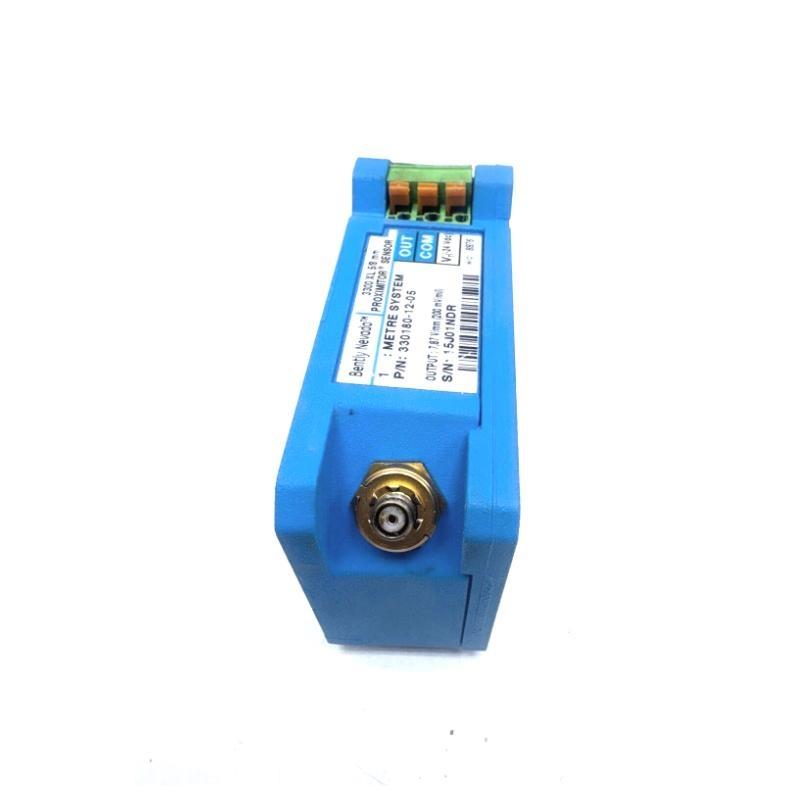

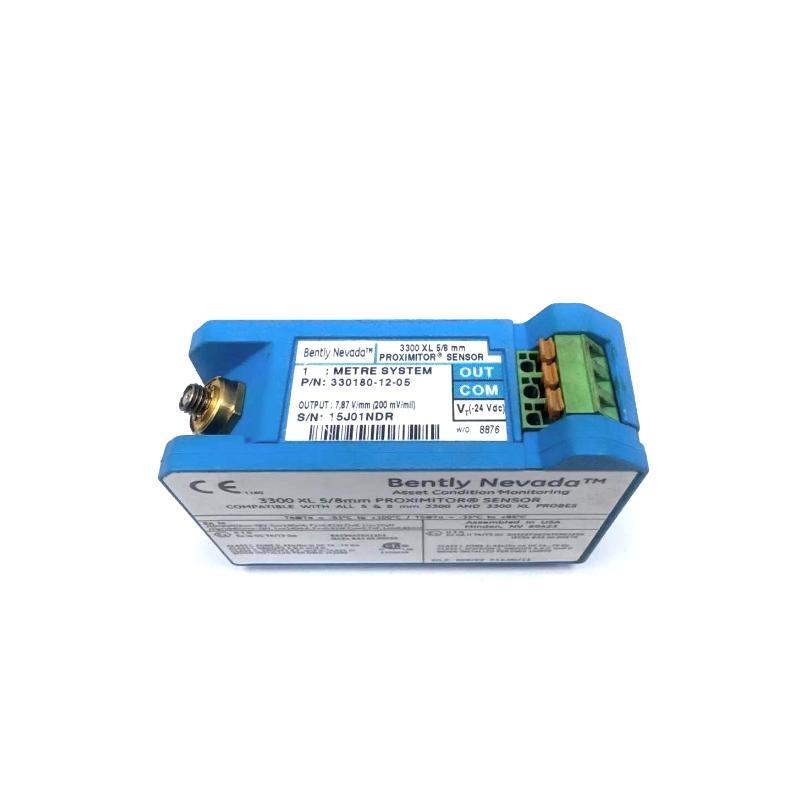

Bently Nevada 330180-12-05 3300 XL Proximitor Sensor Original

Brand：Bently Nevada

Item No.：330180-12-05

Product Type：3300 XL Proximitor Sensor

Product Origin：USA

Dimensions：1.0 meter

Weight：0.246 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Standardized import process, support for testing, and guaranteed after-sales

Complete models, inventory is updated in real time, welcome to get the latest list!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the purpose of the 330180-12-05 Proximitor Sensor?
It provides a voltage output proportional to the distance between the probe tip and a conductive surface, for measuring vibration or shaft position.

What is the system length of the 330180-12-05?
The total length is 1.0 meter, which includes only the probe without an extension cable.

Does the sensor meet API 670 requirements?
Yes, the 3300 XL system meets API 670 standards for linearity, temperature stability, and mechanical configuration.

What is the recommended operating temperature range?
The sensor operates from -52°C to +100°C and can be stored up to +105°C.

What is the recommended gap setting for radial vibration measurements?
1.27 mm (50 mils), corresponding to -9 Vdc.

What type of connector is used?
Gold-plated ClickLoc connectors, designed for secure finger-tight installation.

What is the environmental protection rating?
The sensor supports CE, FCC, ATEX, IECEx, and is designed for use in hazardous areas.

Is the sensor compatible with older 3300 series components?
Yes, it is backward compatible with 3300 5 mm and 8 mm non-XL components.
