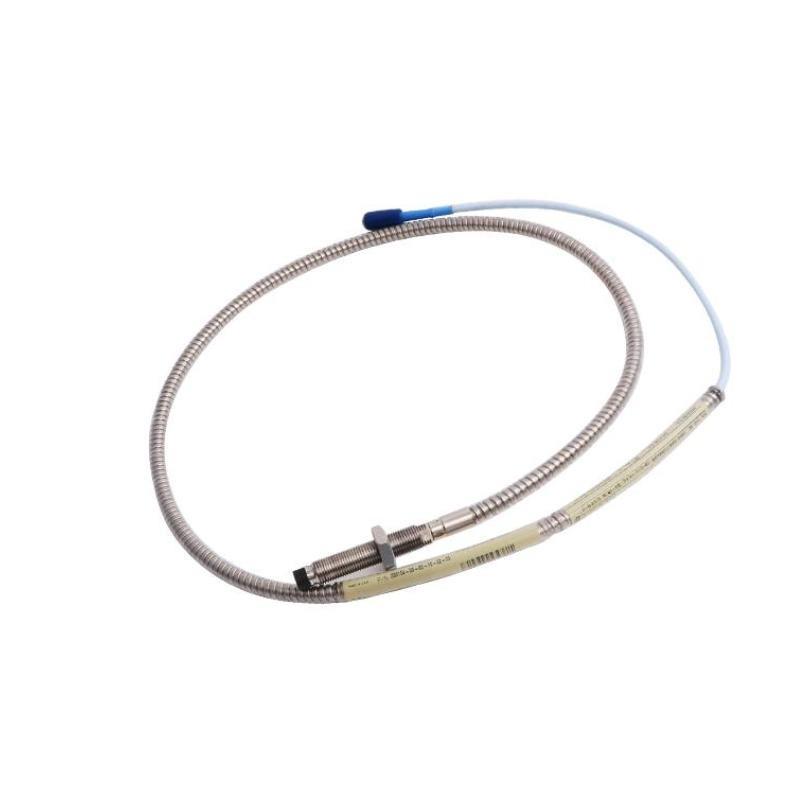

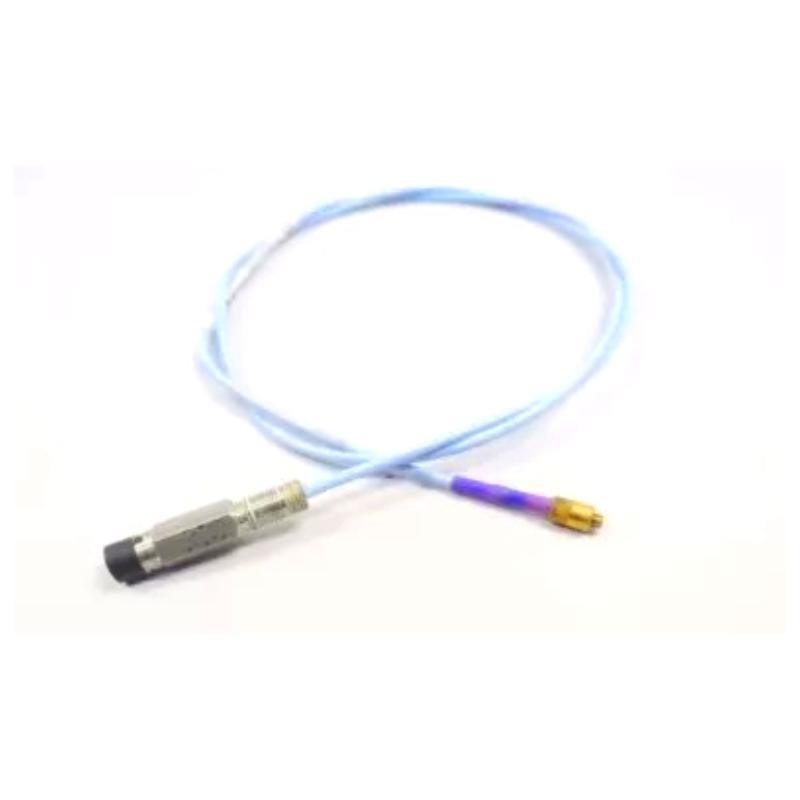

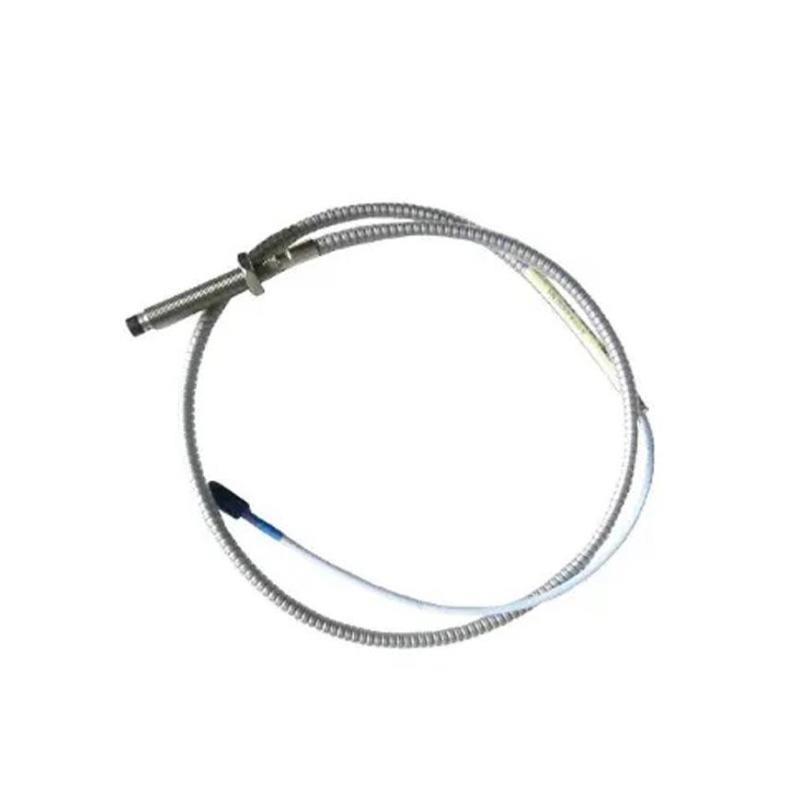

Bently Nevada 330104-00-02-10-02-00 3300 XL 8 mm Proximity Probe Original

Frequently Asked Questions (FAQ)

Does this probe comply with API 670 standard?
Yes. The 3300 XL 8 mm system, including this model, fully complies with API 670 requirements for mechanical design, linear range, accuracy, and temperature stability.

What applications is this probe designed for?
It is primarily used for vibration and position monitoring of fluid-film bearing machinery, Keyphasor reference signals, and speed measurements.

Is the probe compatible with older 3300 series systems?
Yes. It is both electrically and physically compatible with non-XL 3300 5 mm and 8 mm system components.

Do I need to match probes with extension cables and proximitor sensors?
No. All 3300 XL components are fully interchangeable without the need for individual pairing or bench calibration.

What sealing material is used at the probe tip?
A Viton® O-ring is used for differential pressure sealing between the probe tip and case.

Is it suitable for high-temperature applications?
Yes. The ETR version supports temperatures up to +218°C for the probe tip and +260°C for the cable.

Do the connectors require special tools?
No tools are required. The ClickLoc connectors are designed to be finger-tightened and click into place securely.

What is the recommended minimum shaft diameter for installation?
The recommended minimum shaft diameter is 76.2 mm (3 inches) to minimize crosstalk and optimize measurement accuracy.
