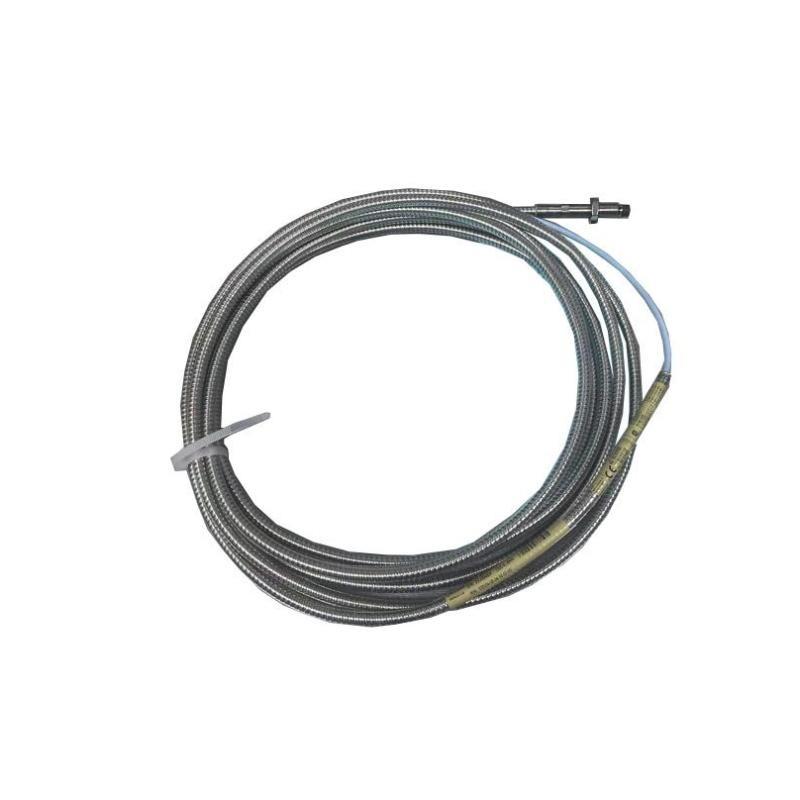

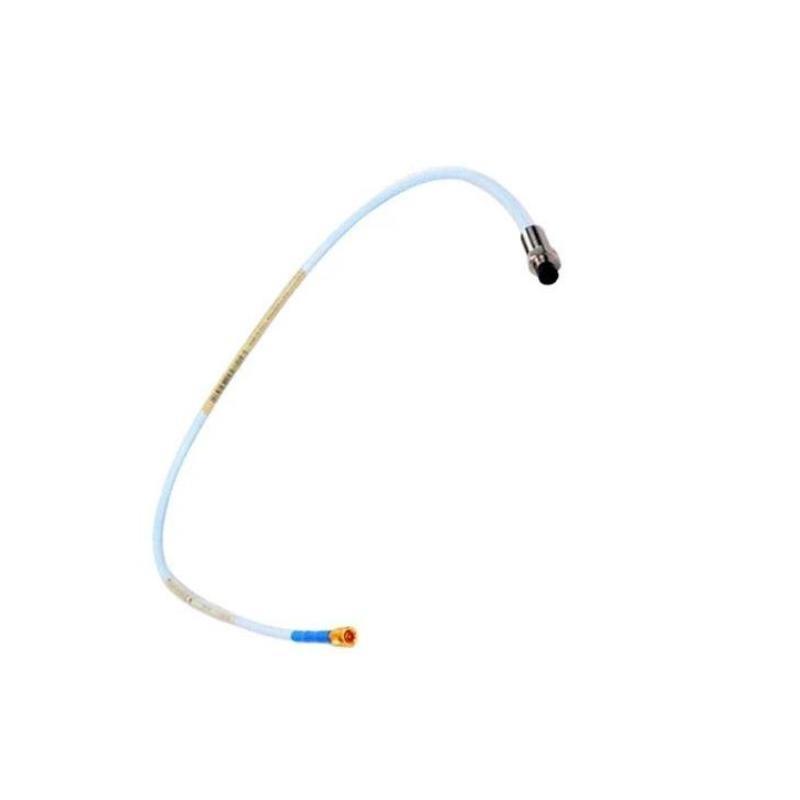

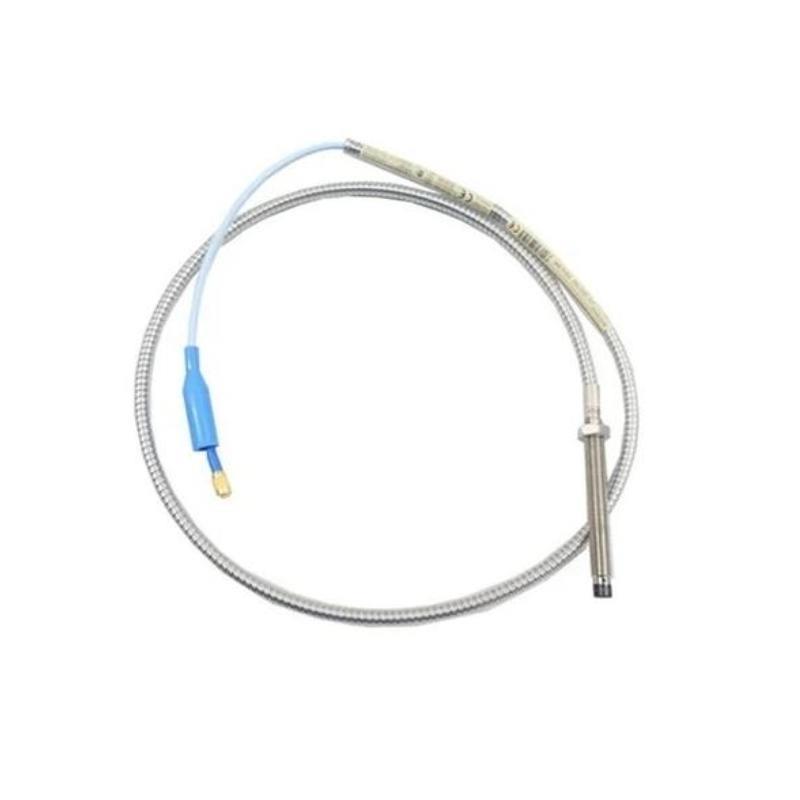

Bently Nevada 330104-00-05-10-02-00 3300 XL 8 mm Proximity Probe 12-Month Warranty

Frequently Asked Questions (FAQ)

What is the primary application for the 330104-00-05-10-02-00 probe?
It is primarily used for vibration and displacement monitoring in fluid-film bearing machines such as turbines, compressors, and motors.

Does this probe comply with API 670 standard?
Yes, the 3300 XL 8 mm system fully complies with API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.

Can this probe be used with non-XL 3300 series components?
Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm series components.

Is there a high-temperature version for extreme environments?
Yes, Extended Temperature Range (ETR) versions support up to 218°C (probe) and 260°C (cable).

Are any special tools required for installation?
No, ClickLoc connectors are tool-free and click-lock into place with finger-tight torque.

What spacing is recommended between probes to avoid interference?
Maintain at least 40 mm (axial) or 38 mm (radial) between probe tips to minimize cross-talk.

What happens if used on shafts smaller than 76.2 mm diameter?
The scale factor may deviate, affecting accuracy. Use on shafts ≥76.2 mm is recommended.

Can the probe be calibrated to materials other than AISI 4140 steel?
Yes, alternative target materials can be specified when ordering.
