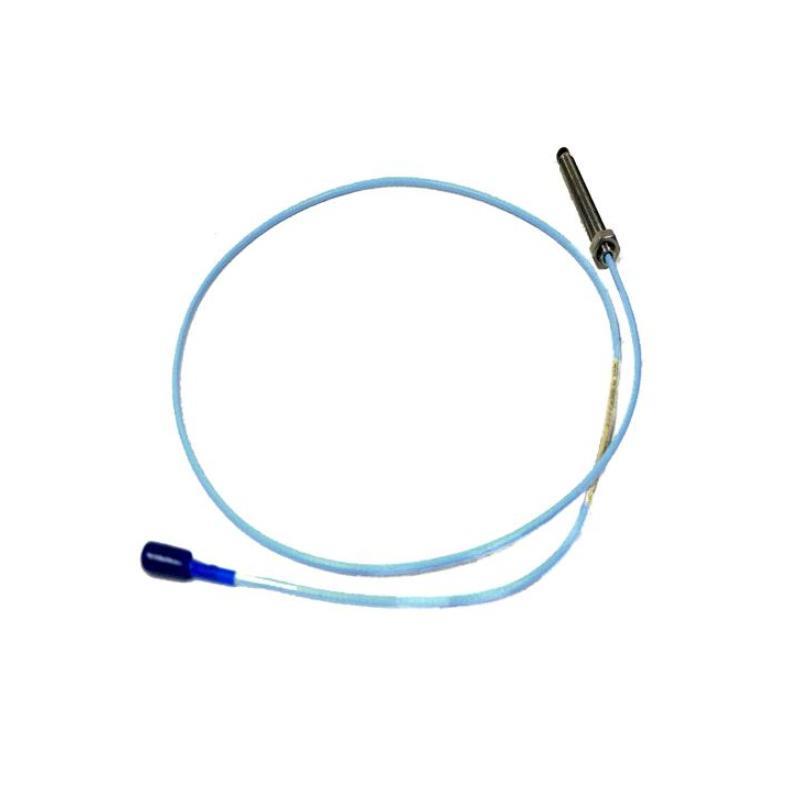

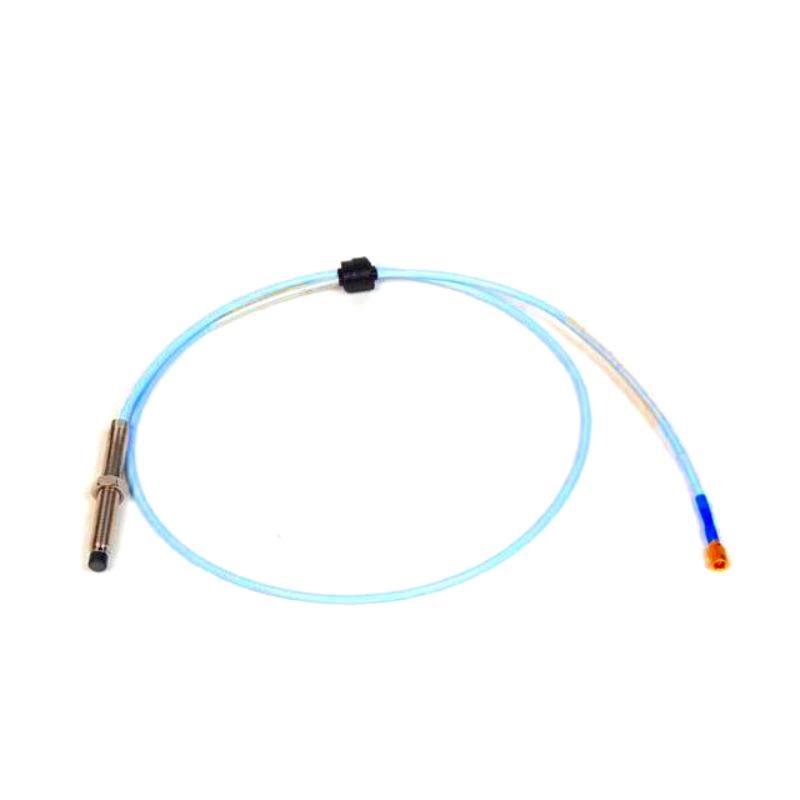

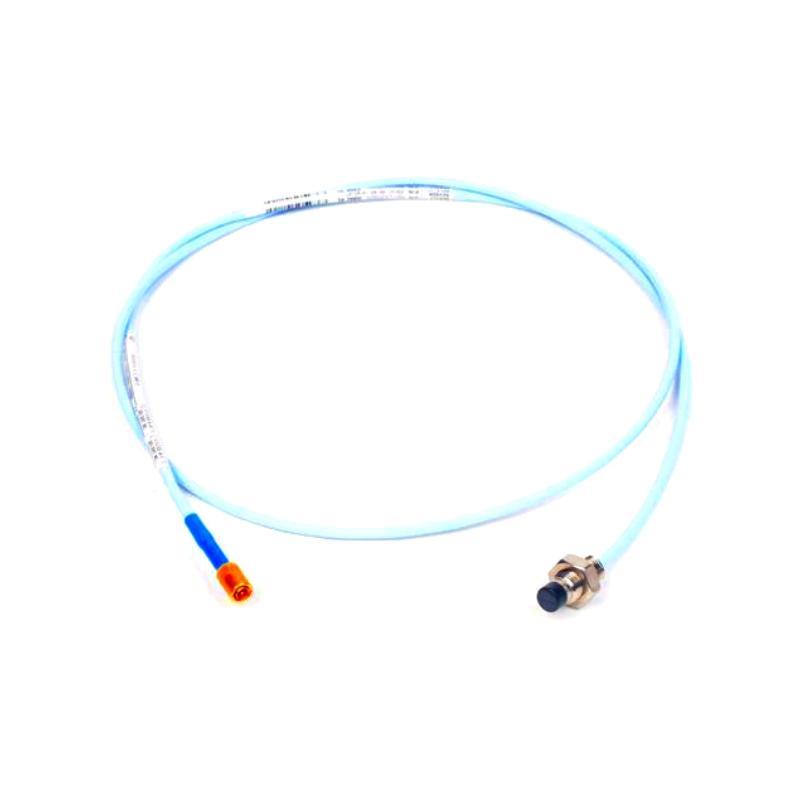

Bently Nevada 330101-00-12-10-02-CN 3300 XL 8 mm Proximity Probe 12-Month Warranty

Frequently Asked Questions (FAQ)

Is this proximity probe compatible with older 3300 series components?
Yes. The 3300 XL 8 mm probe is electrically and physically interchangeable with 3300 5 mm and 8 mm non-XL components.

What are the typical applications of this product?
Primarily used for vibration and position measurements in fluid-film bearing machines. Also suitable for Keyphasor and speed measurements.

Can it be used in high-temperature environments?
Yes. The standard probe supports up to 177°C. For higher temperatures, an Extended Temperature Range (ETR) version is available.

Can I replace the probe or extension cable independently?
Yes. All components are fully interchangeable and do not require matched calibration.

What is the recommended minimum shaft diameter?
The recommended minimum shaft diameter is 76.2 mm (3 inches) to minimize scale factor change and cross-talk.

Is the probe oil-resistant?
Yes, when ordered with the FluidLoc cable option, it prevents oil ingress along the cable.

Do I need tools to install the connectors?
No. The ClickLoc connectors are tool-free and lock automatically when finger-tightened.

Does the 1.0-meter total length system include an extension cable?
No. The 1-meter configuration does not use an extension cable; the probe connects directly to the proximitor sensor.
