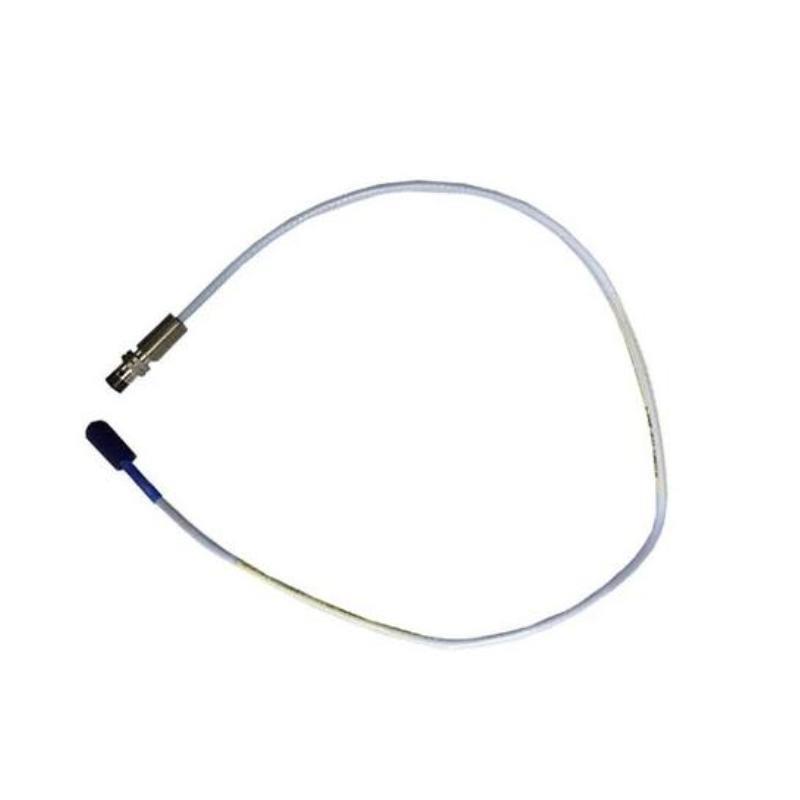

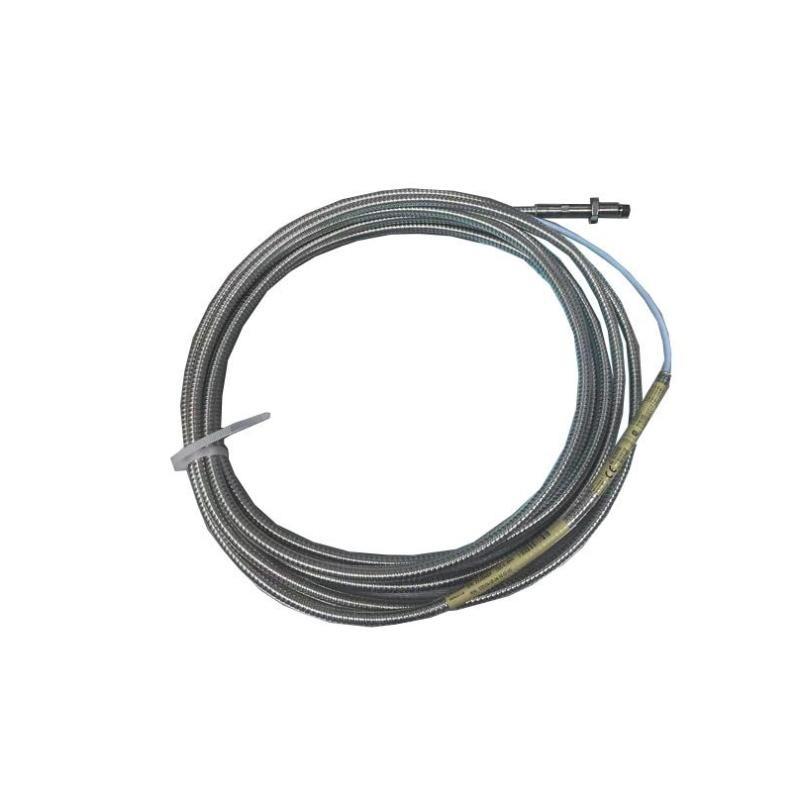

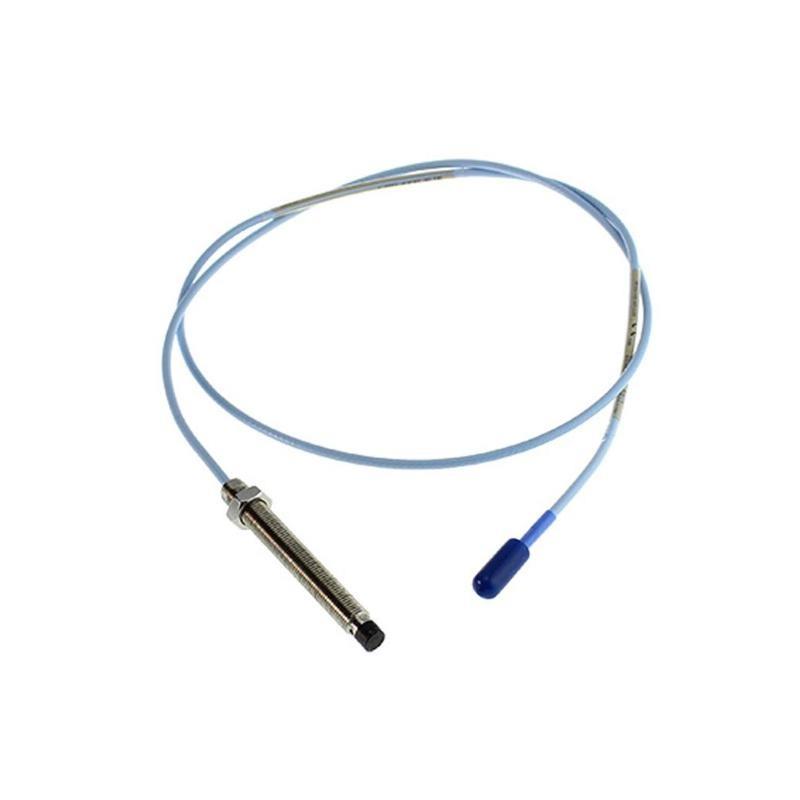

Bently Nevada 330104-00-07-10-01-05 3300 XL 8 mm Proximity Probe 30-Day Returns！

Frequently Asked Questions (FAQ)

What kind of equipment is this probe designed for?
It is primarily used for fluid-film bearing machines to measure vibration, position, and Keyphasor signals.

Can it be used in high-temperature environments?
Yes. The standard version withstands up to 177°C. ETR versions support up to 218°C for the probe and 260°C for cables.

Do I need to calibrate probe, extension cable, and Proximitor sensor as a set?
No, all 3300 XL 8 mm components are fully interchangeable without individual calibration.

What is the minimum shaft diameter supported?
The minimum supported shaft diameter is 50.8 mm; 76.2 mm is recommended to reduce cross-talk.

Is the product compliant with API 670?
Yes, the 5-meter standard system meets API 670 for mechanical configuration, linearity, and accuracy.

What is the linear range of the probe?
The linear response range is from 0.25 mm to 2.3 mm (10 to 90 mils) from the probe tip to the target.

Are any special tools needed to install the connectors?
No, the ClickLoc connectors are finger-tight and provide a “click” when properly secured.

Is this product suitable for hazardous or offshore areas?
Yes, it has CSA, ATEX, and IECEx certifications for Zone 0/1/2 hazardous locations.
