Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

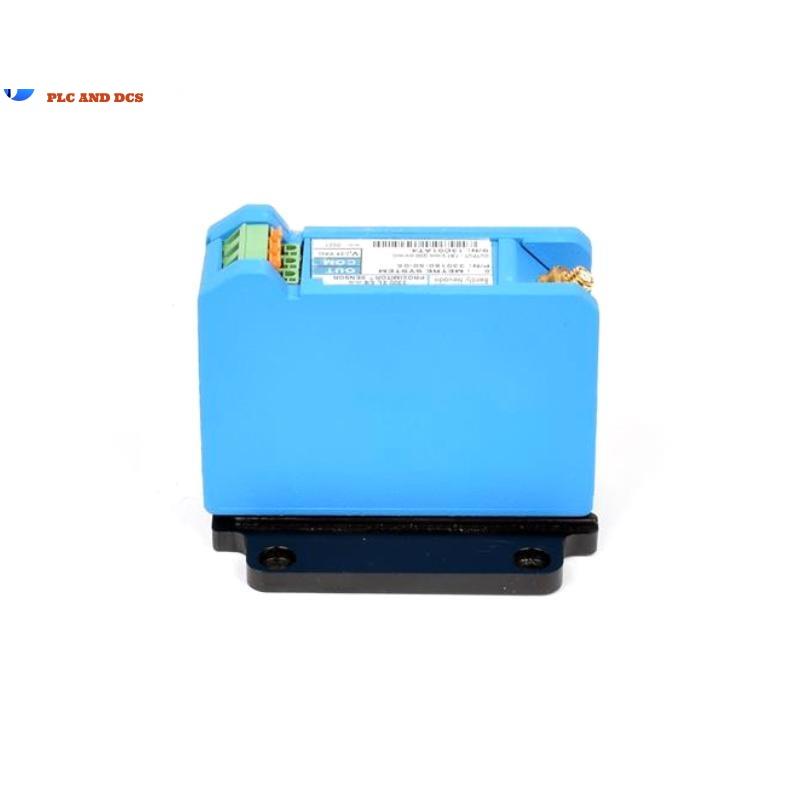

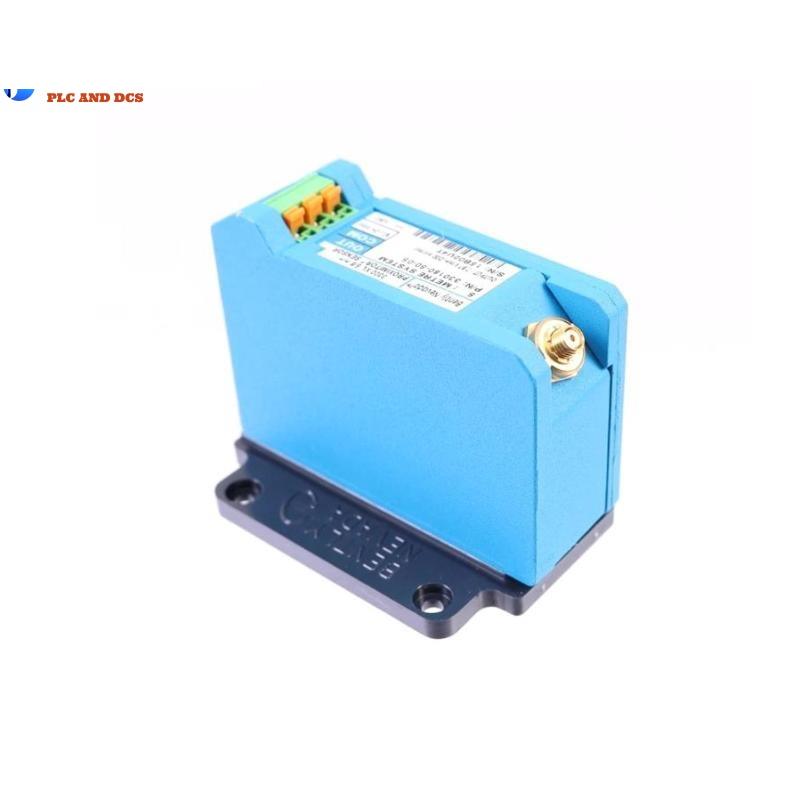

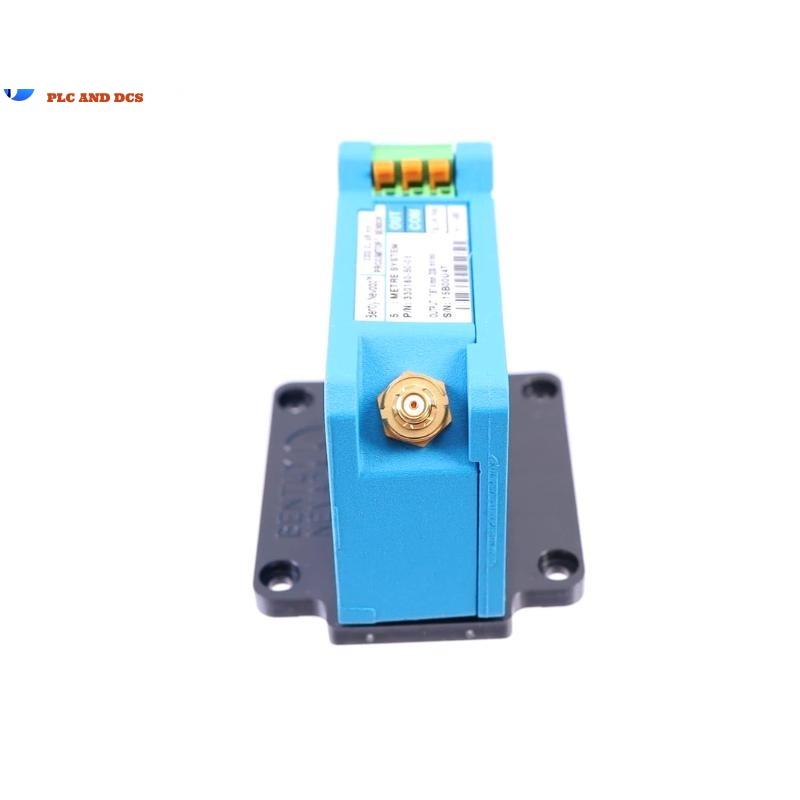

Bently Nevada 330180-50-05 3300 XL Proximitor Sensor Unbelievable Prices!

Brand：Bently Nevada

Item No.：330180-50-05

Product Type：3300 XL Proximitor Sensor

Product Origin：USA

Dimensions：5.0 meters

Weight：0.246 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

The import process is standardized, testing is supported, and after-sales service is guaranteed

The stock volume is large, the series is diverse, and it is suitable for different working conditions. Please consult!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

Which probes and cables are compatible with 330180-50-05?
It supports all Bently Nevada 3300 XL 8 mm probes and extension cables, and is backward compatible with 3300 5 mm and 8 mm non-XL components.

Is this sensor compliant with API 670?
Yes, the 3300 XL 8 mm system fully meets API 670 standards in mechanical configuration, linear range, accuracy, and temperature stability.

Can this sensor operate in high-temperature environments?
Yes, with the Extended Temperature Range (ETR) version, the probe can operate up to +218°C and the cable up to +260°C.

Does power supply fluctuation affect performance?
Output voltage changes less than 2 mV per volt of input voltage change, ensuring power stability.

Is calibration needed before use?
Sensors are factory-calibrated to AISI 4140 steel. Calibration for other target materials is available upon request.

Can this sensor be used in hazardous areas?
Yes, it is certified for use in ATEX and IECEx hazardous areas with intrinsic safety and non-incendive circuit installation options.

What mounting and connector features should be noted?
Compatible with standard 4-hole panel or DIN rail mount. Uses tool-free ClickLoc connectors with optional protectors for environmental sealing.

What are the ideal application scenarios for this sensor?
Best suited for monitoring vibration and shaft position in fluid-film bearing machinery, as well as Keyphasor reference and speed measurements.
