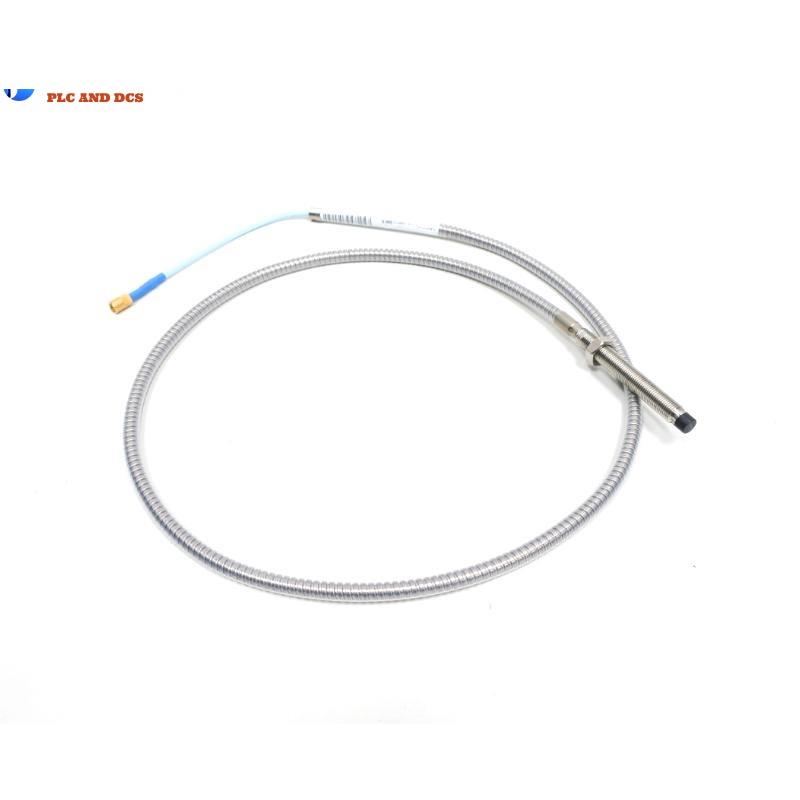

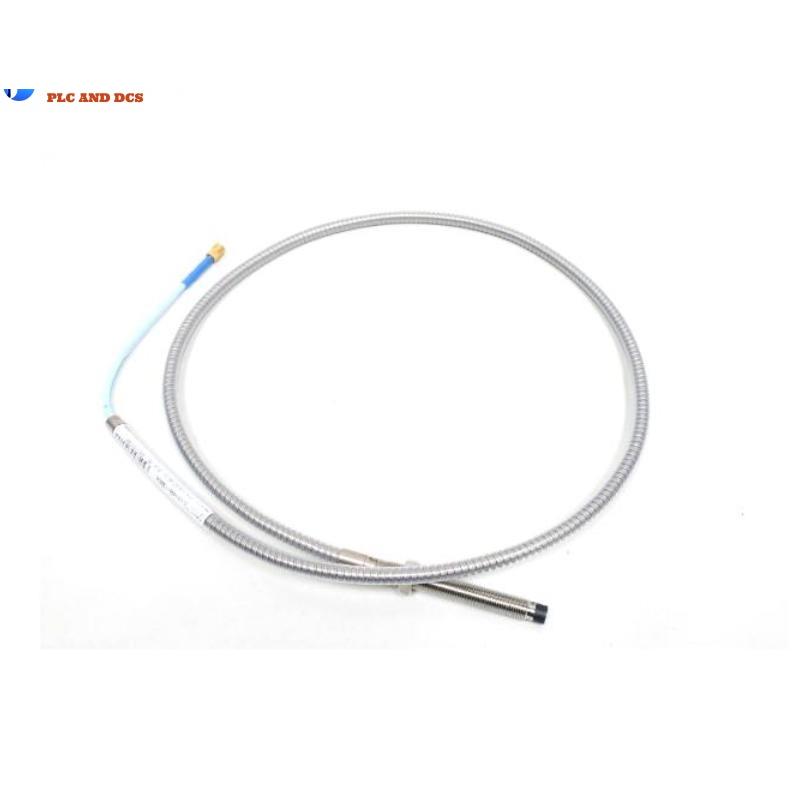

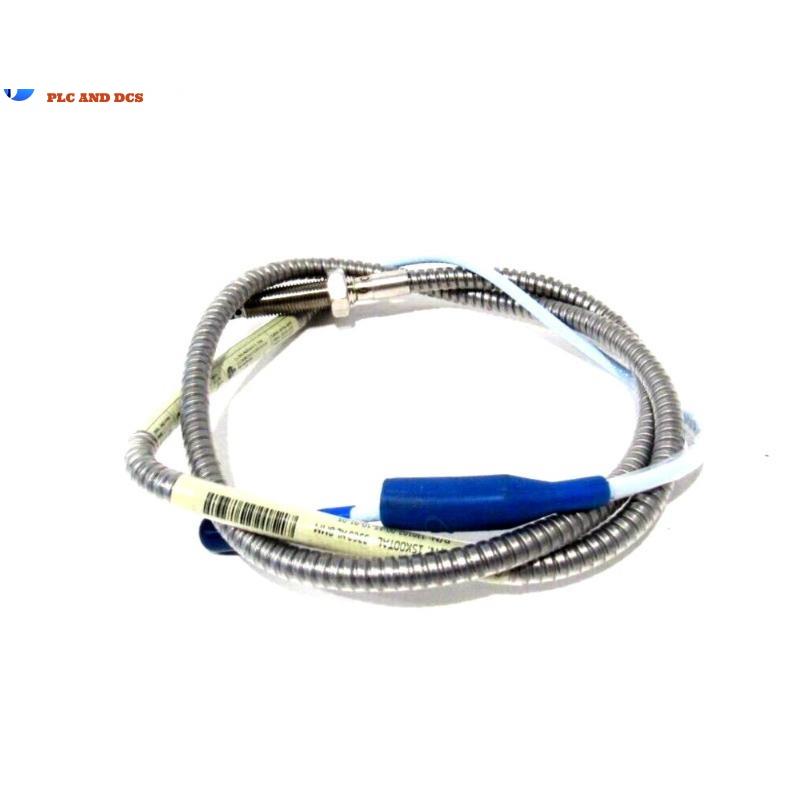

Bently Nevada 330102-00-50-10-02-05 3300 XL 8 mm Proximity Probe 30-Day Returns！

Frequently Asked Questions (FAQ)

What applications is the 330102 probe used for?
It is used for vibration and position monitoring on fluid-film bearing machines, Keyphasor reference, and speed measurements.

Does this model meet the API 670 standard?
Yes, the standard 5-meter system fully complies with API 670 specifications for mechanical design, linear range, accuracy, and thermal stability.

Can I mix different probe and extension cable lengths?
Yes, as long as the combined length matches the Proximitor sensor length and both are XL series components.

Is system-wide calibration necessary?
No. All XL components are fully interchangeable and do not require matched calibration.

Is the extension cable oil-resistant?
Yes, if ordered with the FluidLoc option, which prevents oil ingress through the cable.

Are tools required to install connectors?
No. ClickLoc connectors are finger-tightened and click when properly secured.

Is this system suitable for high-temperature environments?
Yes. The ETR (Extended Temperature Range) version supports up to 218°C for the probe and 260°C for the cable.

Is the probe certified for hazardous areas?
Yes. It has CSA, ATEX, and IECEx approvals for Zone 0, Zone 1, and Zone 2 classified areas.
