Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

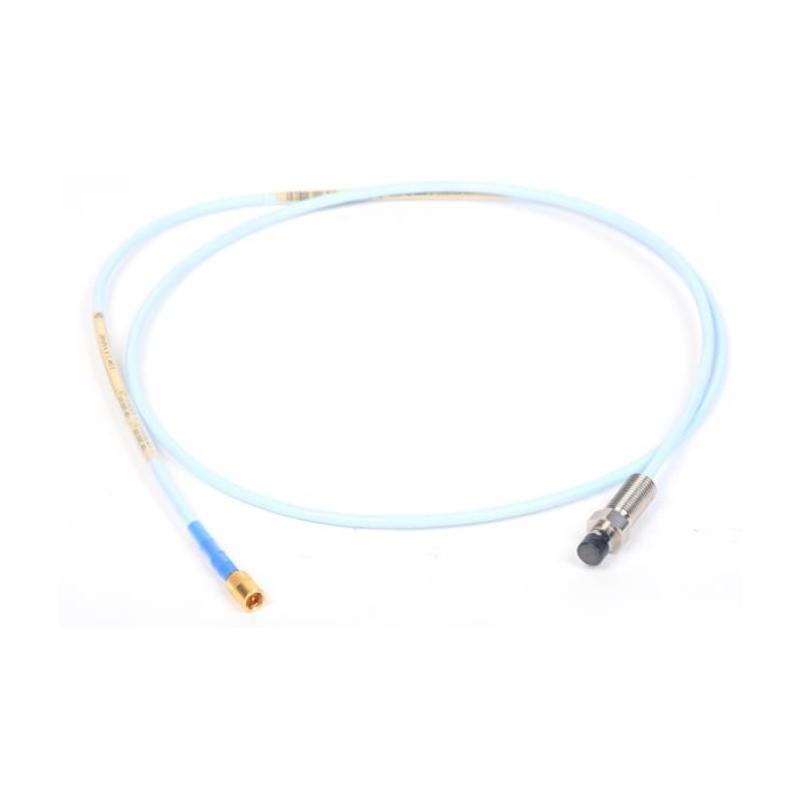

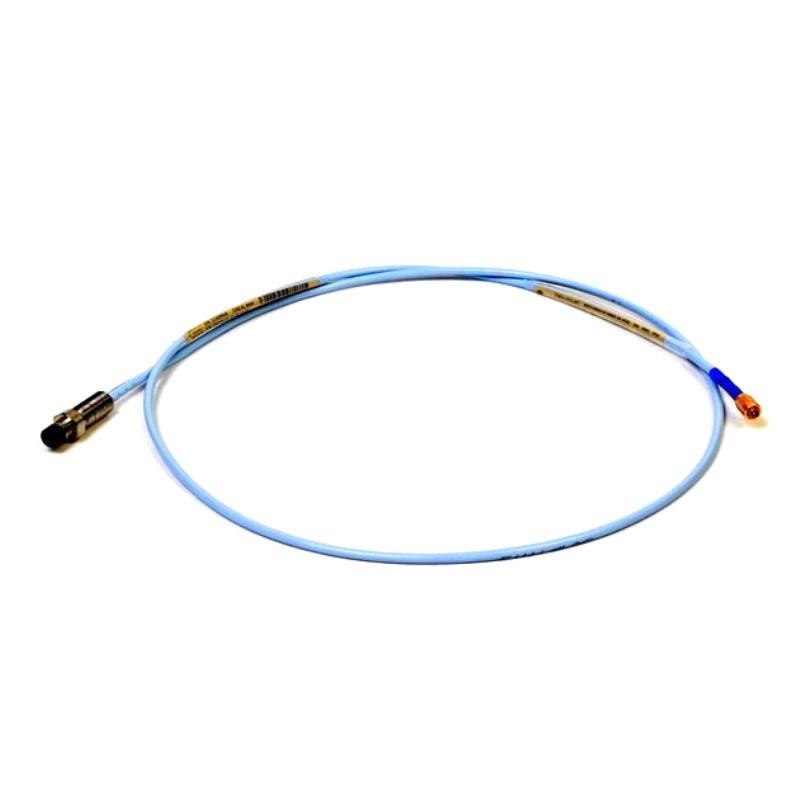

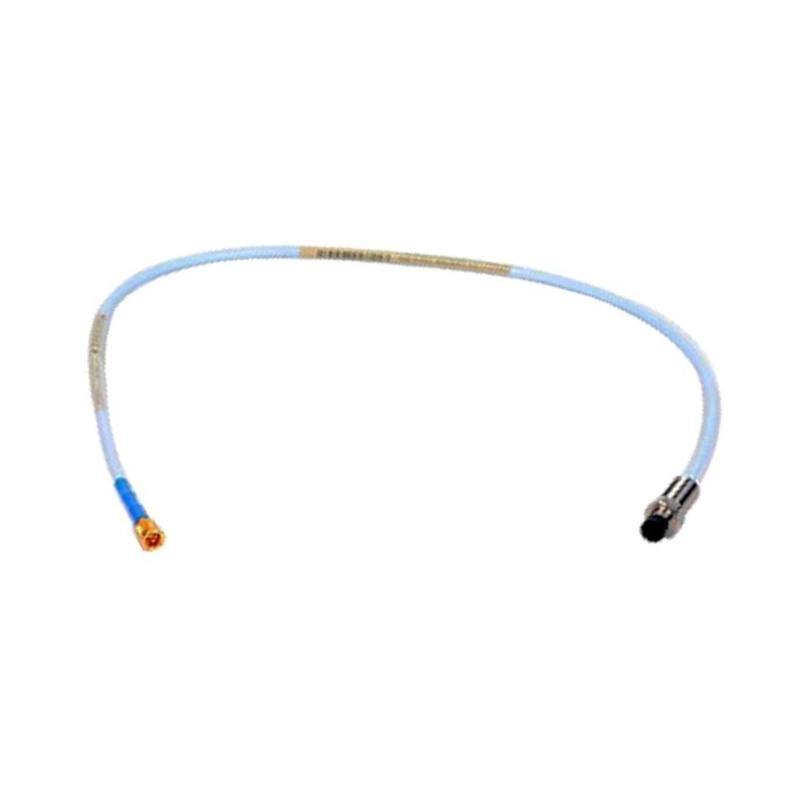

Bently Nevada 330105-02-12-05-02-CN 3300 XL 8 mm Reverse Mount Probe Unbelievable Prices!

Brand：Bently Nevada

Item No.：330105-02-12-05-02-CN

Product Type：3300 XL 8 mm Reverse Mount Probe

Product Origin：USA

Dimensions：0.5 meter

Weight：0.161 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Original import channel supply, support for testing instructions, worry-free after-sales

Wide coverage of models, efficient delivery, welcome to contact us for information!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

FAQ

What is the purpose of the Bently Nevada 3300 XL 8 mm Reverse Mount Probe?
The Bently Nevada 3300 XL 8 mm Reverse Mount Probe is primarily used for vibration and position measurements on fluid-film bearing machines. It is also used for Keyphasor reference and speed measurements.

What materials are used in the construction of the probe?
The probe tip is made of polyphenylene sulfide (PPS), while the case is made of AISI 303 or 304 stainless steel (SST). The cable is a 75Ω triaxial, FEP insulated type.

What is the operating temperature range of the probe?
The standard probe operates in the temperature range of -52°C to +177°C (-62°F to +350°F). There is an extended temperature range version for higher temperatures up to +218°C (+425°F) for the probe tip and +260°C (+500°F) for the probe cable.

Can this probe be used in hazardous environments?
Yes, the 3300 XL 8 mm Reverse Mount Probe has various certifications for hazardous environments, including CSA, ATEX, and IECEx approvals.

What is the frequency response of the probe system?
The system has a frequency response range of 0 to 10 kHz, with a +0, -3 dB response.

What is the minimum target size required for this probe?
The minimum target size for this probe is 15.2 mm (0.6 inches) in diameter for a flat target.

What are the recommended shaft diameters for proper operation?
The minimum recommended shaft diameter is 50.8 mm (2 inches), with the ideal being 76.2 mm (3 inches).

What type of connector is used with the probe?
The probe uses miniature coaxial ClickLoc connectors, which are gold-plated for corrosion resistance and require only finger-tight torque for installation.
