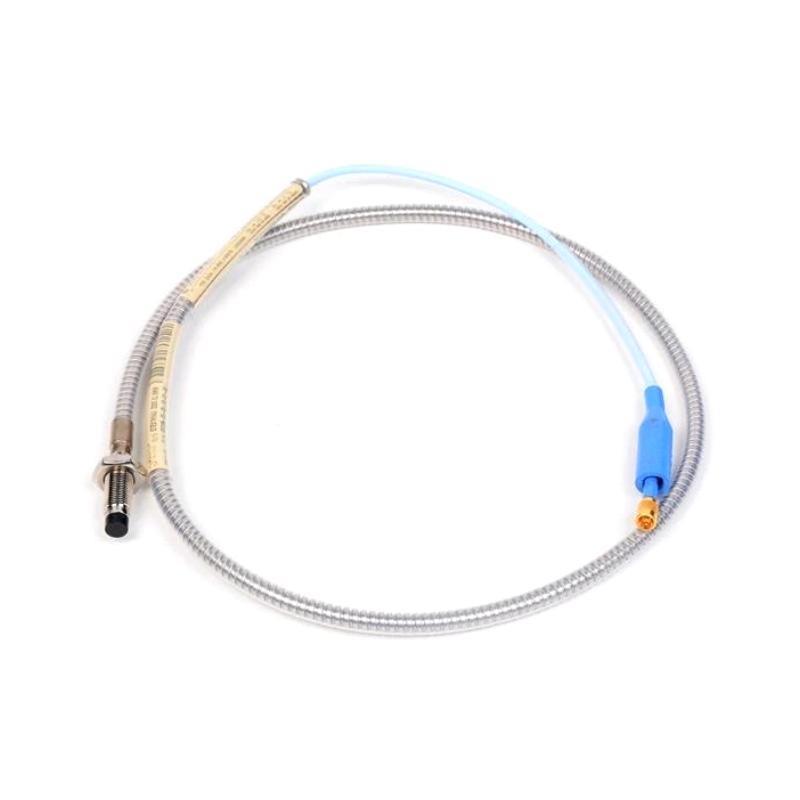

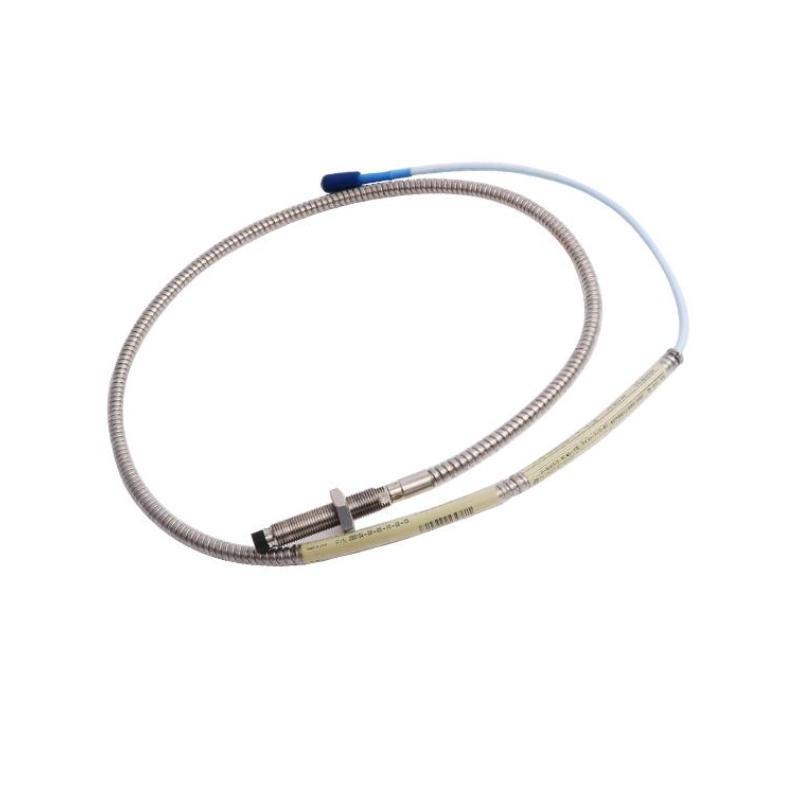

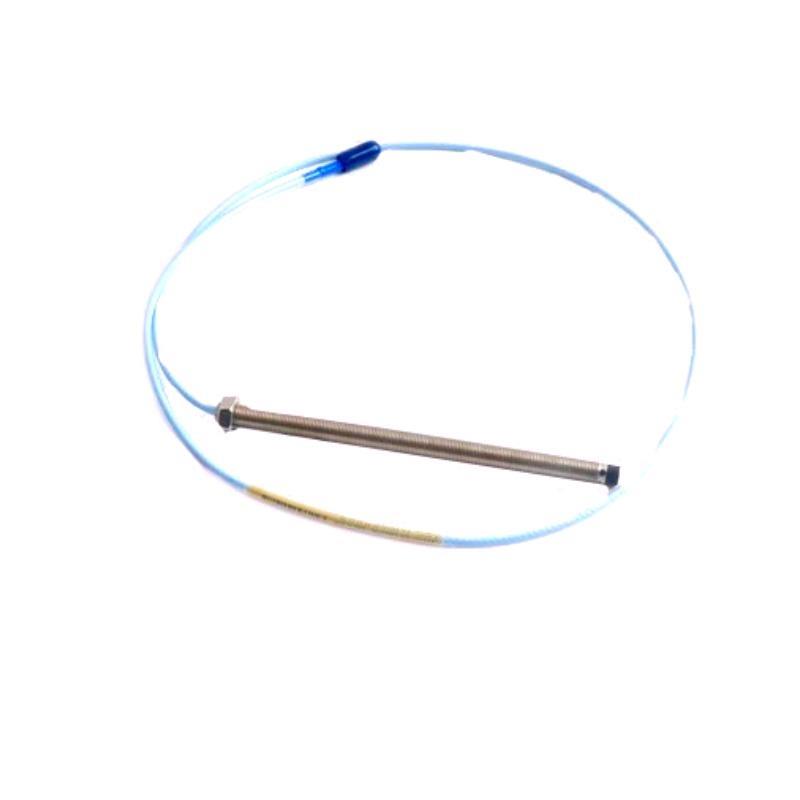

Bently Nevada 330104-00-12-05-02-00 3300 XL 8 mm Proximity Probe Original

FAQs:

What is the maximum operating temperature of the 3300 XL 8 mm Proximity Probe?
The probe can operate within a temperature range of -52°C to +177°C (-62°F to +350°F). For extended temperature range probes, the temperature can go up to +218°C for the probe tip and +260°C for the cable.

What is the linear measurement range for the 3300 XL 8 mm Proximity Probe?
The linear range of the probe is from 0.25 mm to 2.3 mm (10 to 90 mils), which corresponds to an output range of approximately -1 to -17 Vdc.

Can I use the 3300 XL 8 mm Probe for high vibration measurements?
Yes, the 3300 XL 8 mm Probe is designed for both vibration and position measurements, making it ideal for high vibration applications such as fluid-film bearing machines.

What are the recommended gap settings for the probe in radial vibration measurements?
For radial vibration, the recommended gap setting is -9 Vdc, which corresponds to approximately 1.27 mm (50 mils).

What materials can the probe detect?
The probe is calibrated for AISI 4140 steel as the target material by default. Other target material calibrations are available upon request.

How resistant is the probe to environmental conditions?
The 3300 XL 8 mm Proximity Probe is highly resistant to environmental factors, with a robust construction and corrosion-resistant connectors. The probe is sealed against differential pressure with a Viton® O-ring.

Can I use this probe with extension cables?
Yes, the probe is compatible with 3300 XL extension cables and offers different lengths ranging from 0.5 meters to 9.0 meters. The cables are also available with optional FluidLoc cable to prevent leakage.

What is the maximum distance I can run the extension cable?
The maximum recommended length for the extension cable is 305 meters (1000 feet) when used with the 3300 XL Proximitor Sensor.
