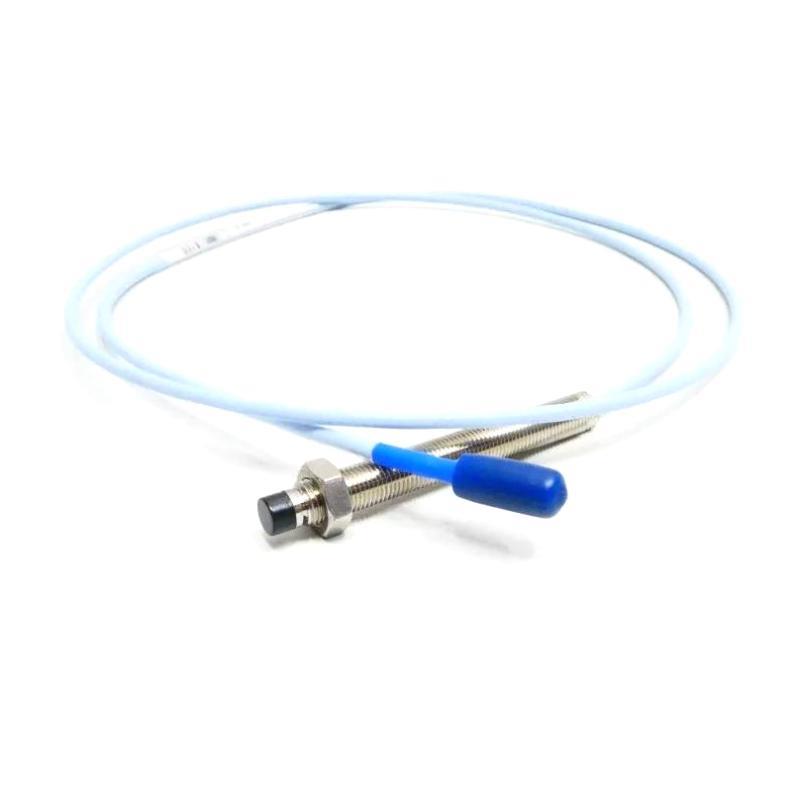

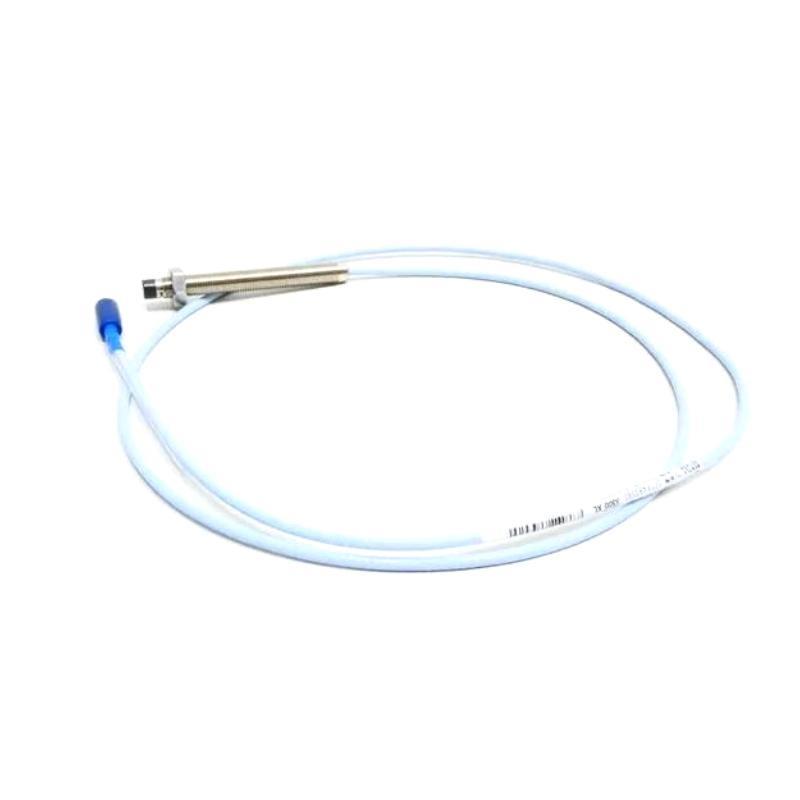

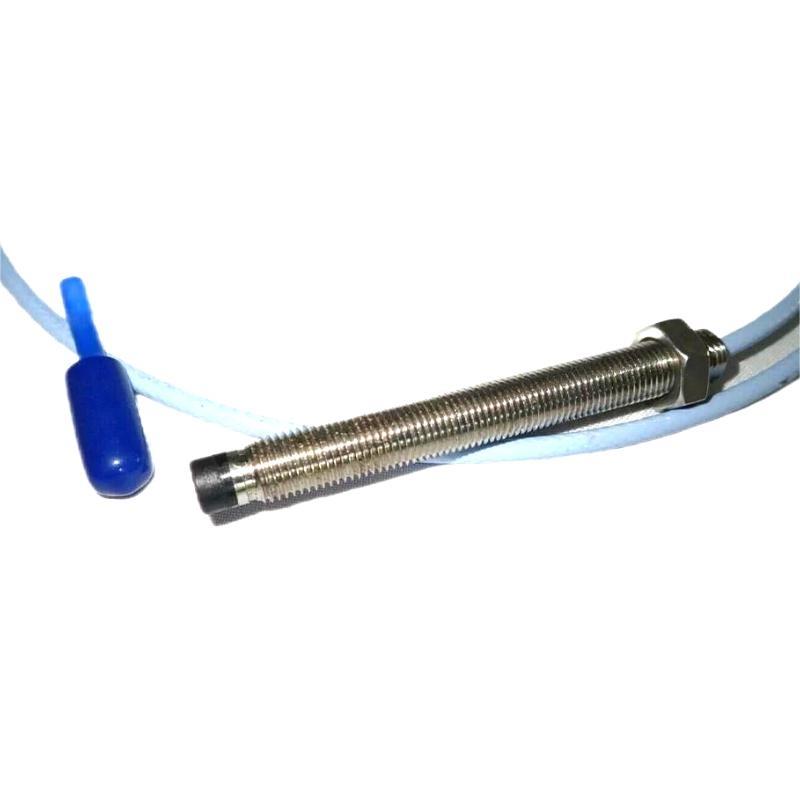

Bently Nevada 330101-00-32-10-02-05 3300 XL 8 mm Proximity Probe Original

Frequently Asked Questions (FAQ)

What is the main application of the 330101-00-32-10-02-05 proximity probe?
It is used primarily for vibration and position measurements in fluid-film bearing machines, and also supports Keyphasor and speed measurements.

Does this model meet API 670 standards?
Yes, the standard 3300 XL 8 mm 5-meter system fully complies with the API 670 mechanical configuration, accuracy, linear range, and temperature stability standards.

Is the 330101 probe compatible with non-XL systems?
Yes, it is electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm systems, though performance is limited by the lowest-spec component.

Can this probe be used in high-temperature environments?
Yes. The standard version supports up to +177°C, and the Extended Temperature Range (ETR) version supports up to +218°C (probe tip) and +260°C (cable).

What environmental sealing does the probe offer?
The probe features a Viton® O-ring pressure seal but is not pressure-tested before shipment. Applications requiring pressure testing should contact Bently Nevada.

How should I mount the probe to ensure proper operation?
Maintain minimum probe-to-probe spacing: 40 mm for axial, 38 mm for radial. Mount with proper torque and ensure alignment with shaft centerline.

Is calibration required before installation?
No. The system components are factory-calibrated and fully interchangeable without the need for bench calibration.

Can the connectors be installed without tools?
Yes. The ClickLoc connectors are finger-tightened and lock with an audible “click”, requiring no special tools for installation or removal.
