Epro PR6424/010-140+CON011 16mm Eddy Current Sensor+Eddy Current Signal Converter Trusted supplier

Frequently Asked Questions (FAQ)

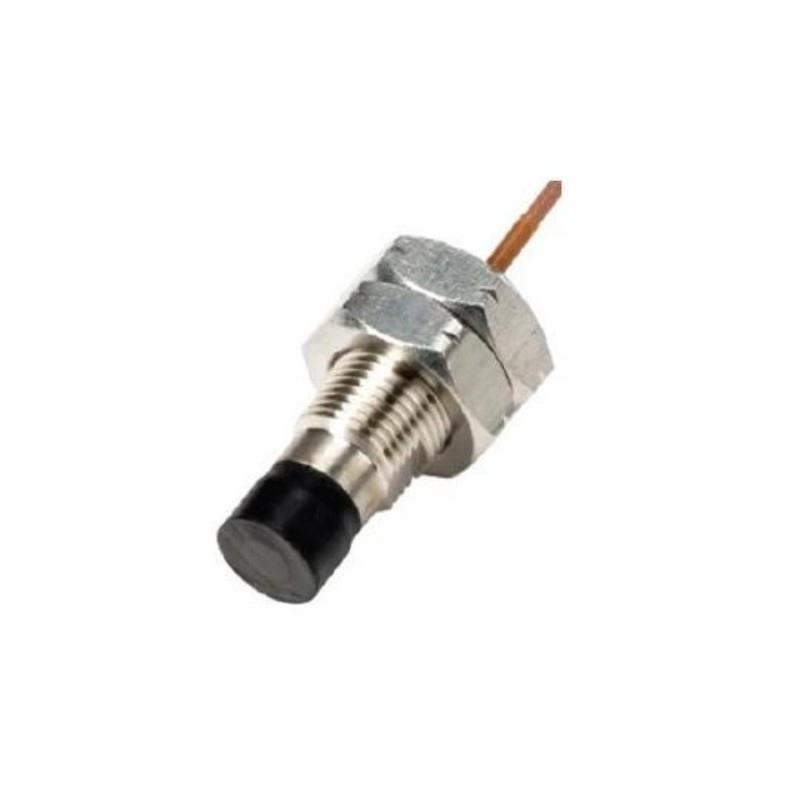

What is the measurement range of the PR6424 sensor?
The PR6424 sensor offers a static measurement range of ±2.0 mm and a dynamic range of 0 to 1,000 μm.

What material is recommended for the shaft target surface?
The sensor is designed to operate with ferromagnetic steel, typically 42CrMo4.

Can the PR6424 sensor operate in high-temperature environments?
Yes, the sensor operates in ambient temperatures ranging from -35°C to 150°C.

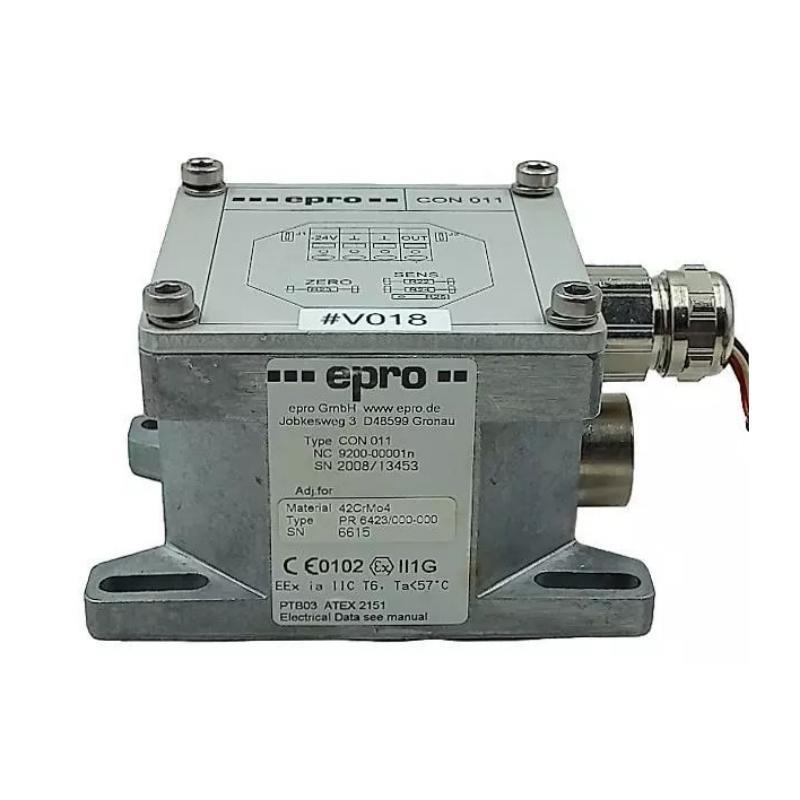

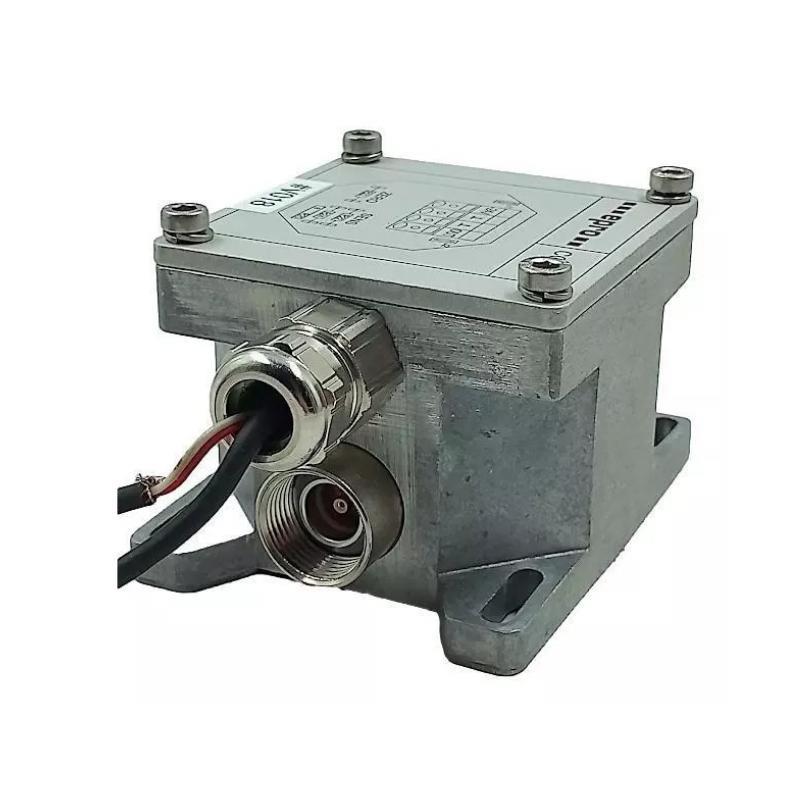

What kind of signal output does the CON011 converter provide?
The converter outputs voltage in the range of -4V to -20V or -2V to -18V depending on the supply voltage.

What is the sensitivity and linearity error of this sensor-converter combination?
The sensitivity is 4 V/mm with a linearity error of ≤ ±1.5%.

Is the system compliant with international hazardous area certifications?
Yes, both sensor and converter are certified under ATEX, IEC-Ex, CSA, and UL standards for hazardous environments.

What is the recommended minimum shaft diameter for accurate measurement?
A shaft diameter of at least 80 mm is recommended for optimal sensor performance.

Is the system resistant to vibration and mechanical shock?
Yes, both components withstand 5g at 60 Hz at room temperature without performance degradation.
