Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

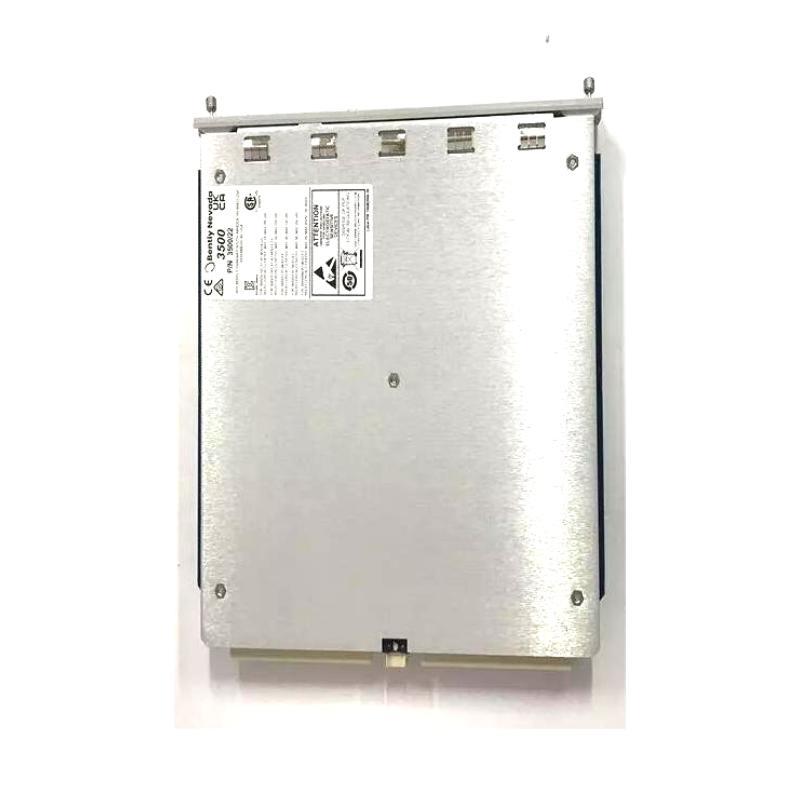

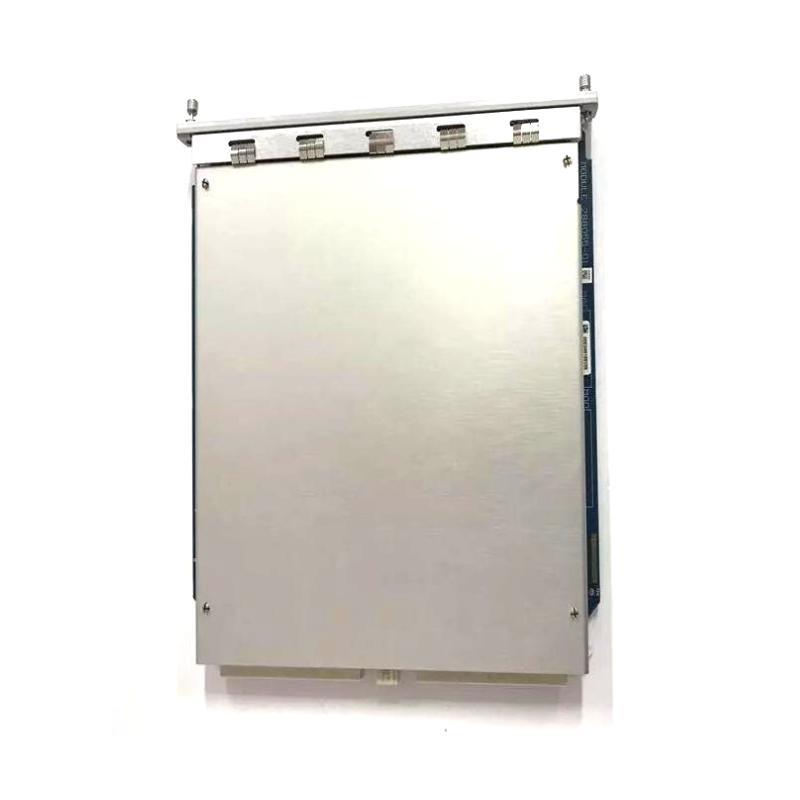

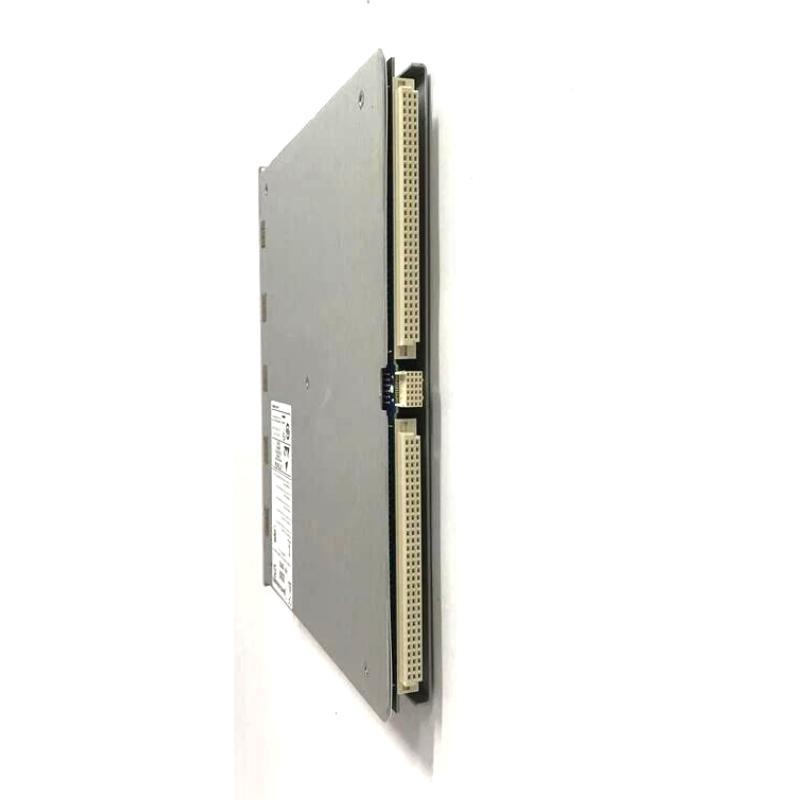

Bently Nevada 3500/22M 288055-01L Transient Data Interface Module 30-Day Returns！

Brand：Bently Nevada

Item No.：3500/22M 288055-01L

Product Type：Transient Data Interface Module

Product Origin：USA

Dimensions：241.3 x 24.4 x 241.8 mm

Weight：0.91 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal channel supply, complete information can be checked, and supporting service guarantee

There are rich models in stock, which support quick docking of procurement needs. Welcome to inquire for details!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the primary role of the 3500/22M TDI module?
It serves as the communication bridge between the 3500 system and condition monitoring/configuration software such as System 1. It combines the functions of a RIM and a communication processor.

Where should the 3500/22M be installed in the rack?
The TDI must be installed in Slot 1, adjacent to the power supply module of the 3500 rack.

Is the 3500/22M part of the critical protection path?
No. While it facilitates data transfer and configuration, it is not part of the primary protection path and does not affect automatic machine protection functions.

Can this module capture transient events like startup and coastdown?
Yes, it supports collection of transient waveform data based on speed and time intervals during startup and coastdown events.

How many waveform channels does the 3500/22M support?
It supports waveform sampling for up to 48 dynamic channels simultaneously.

What kind of network interfaces are available?
It supports both copper (10Base-T/100Base-TX) and fiber-optic (100Base-FX) Ethernet interfaces with RJ-45 or MT-RJ connectors.

What environmental conditions can the module withstand?
It operates in temperatures from -30°C to +65°C and can be stored at -40°C to +85°C. It also tolerates up to 95% non-condensing humidity.

Is special software required to enable full waveform data capture?
Yes. A Channel Enabling Disk must be used to unlock dynamic data features for steady-state and transient waveform collection.
