Product Details

Bently Nevada provides good Condition Monitoring and Machine Asset Protection. Power Supply, CPU, I/O Modules, Proximitor Sensor and Programming cable of 3500/33 are supplied.

Product Introduction

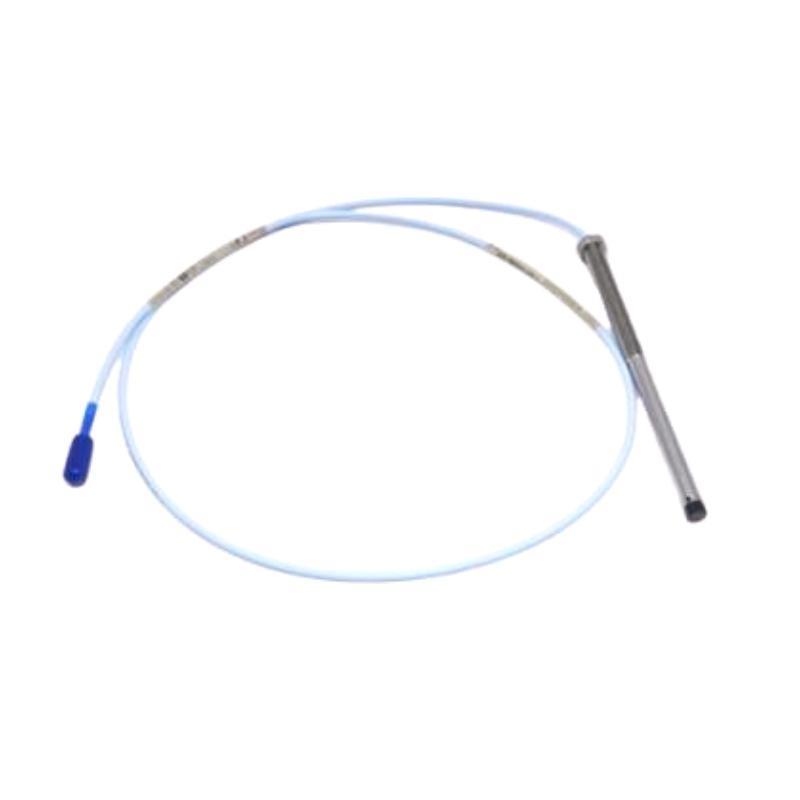

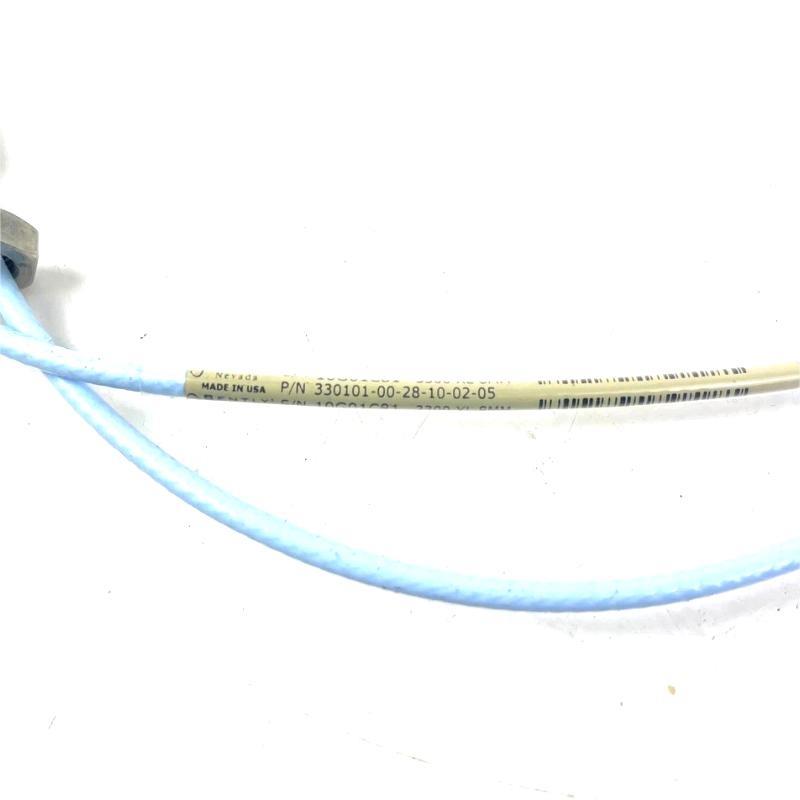

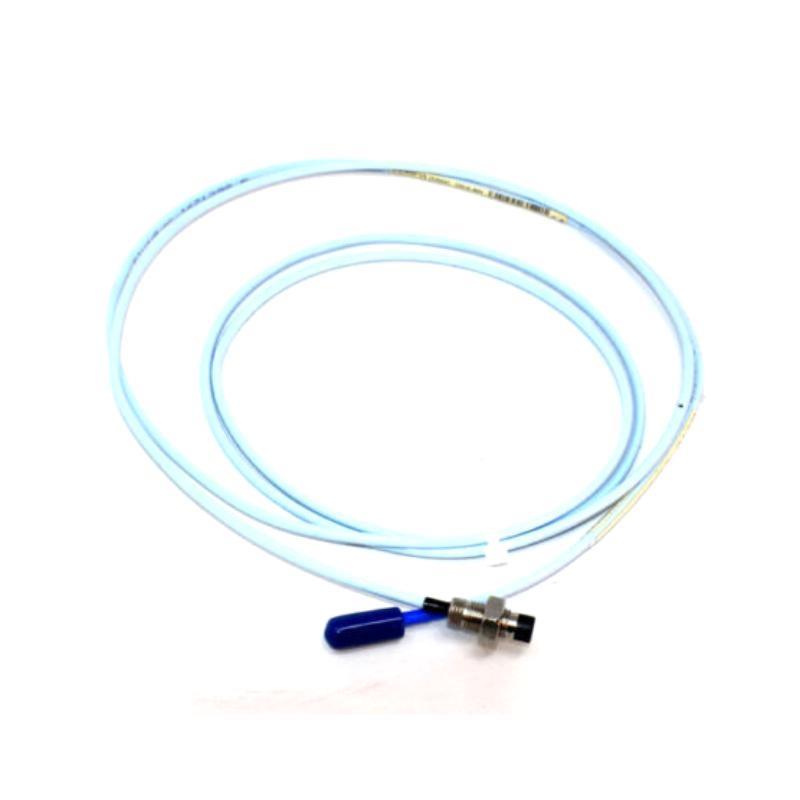

Bently Nevada 330101-00-28-10-02-00 3300 XL 8 mm Proximity Probe 12-Month Warranty

Brand：Bently Nevada

Item No.：330101-00-28-10-02-00

Product Type：3300 XL 8 mm Proximity Probe

Product Origin：USA

Dimensions：1.0 meter

Weight：0.323 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Formal source, test instructions can be coordinated, and after-sales service is continuously followed up

Flexible stock of multiple models, support quick response, welcome to cooperate and exchange!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

What is the total length and weight of the 330101-00-28-10-02-00 proximity probe?
The total length is 1.0 meter and the weight is approximately 0.323 kg.

What is the primary application of the 3300 XL 8 mm proximity probe?
It is used for vibration and position measurements in fluid-film bearing machines and also suitable for Keyphasor reference and speed measurement.

Is this probe compliant with API 670 standards?
Yes, the 3300 XL 8 mm 5-meter system fully meets the API 670 requirements for mechanical configuration, accuracy, linear range, and temperature stability.

What materials are used in the probe construction?
The probe tip is made of PPS (Polyphenylene Sulfide), and the case is constructed from AISI 303 or 304 stainless steel.

Can the probe operate in high-temperature environments?
Yes, the standard version supports up to +177°C, and the extended temperature range (ETR) version supports up to +218°C for the probe tip and +260°C for the cable.

Is the probe interchangeable with older 3300-series components?
Yes, it is fully interchangeable with non-XL 3300 5 mm and 8 mm system components, both electrically and mechanically.

What is the recommended gap for radial vibration monitoring?
The recommended gap setting is approximately 1.27 mm (50 mils), which corresponds to -9 Vdc output.

Are special tools required for installation?
No special tools are needed. The ClickLoc connectors are designed for finger-tight installation and “click” to indicate secure engagement.
