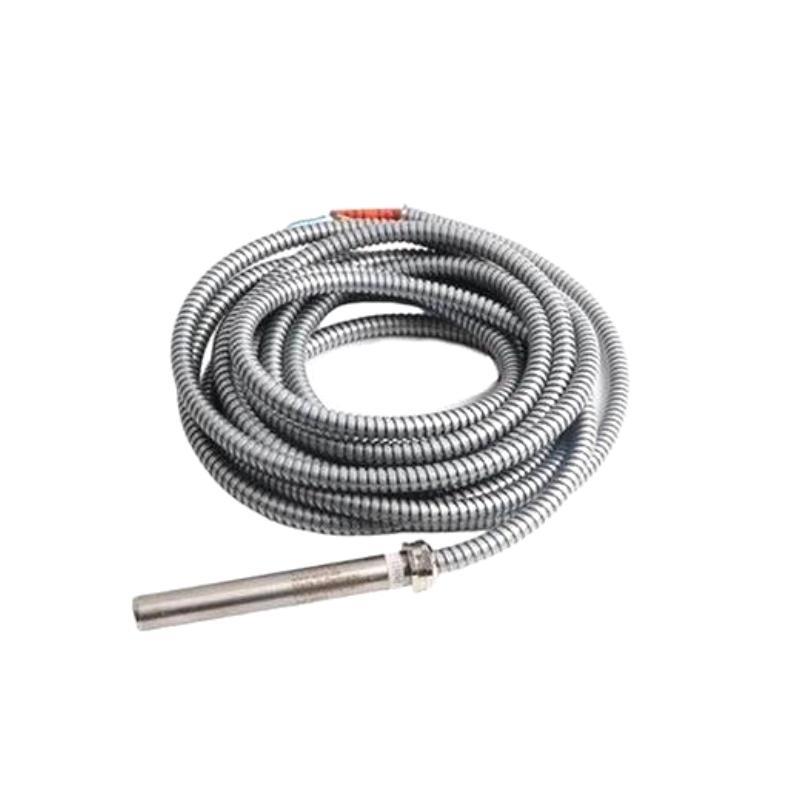

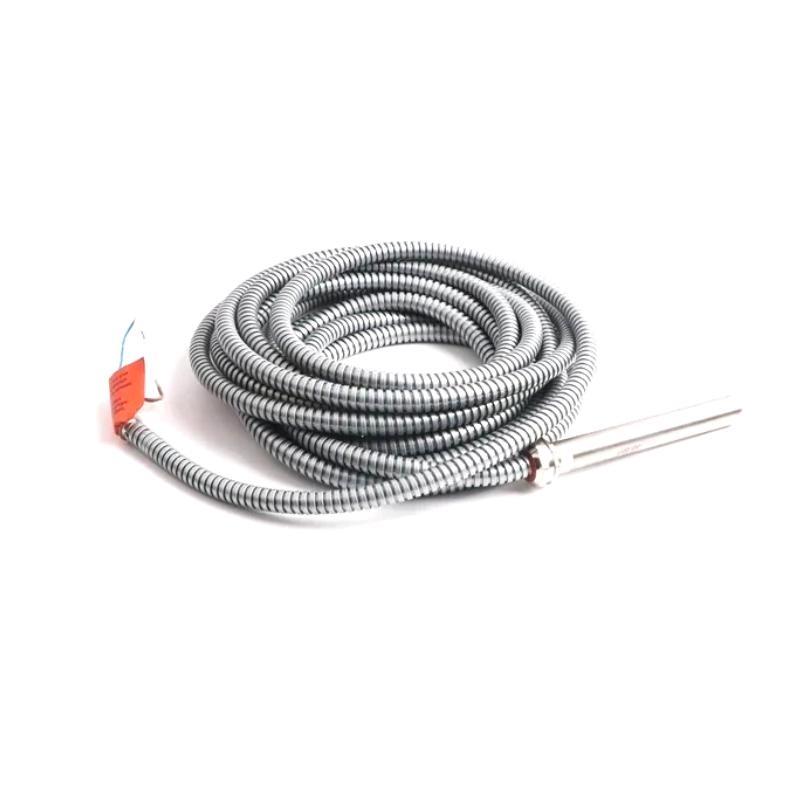

Epro PR6453/110-101 12.5mm Eddy Current Sensor 12-Month Warranty

Frequently Asked Questions (FAQ)

What type of applications is the PR6453/110-101 sensor suitable for?
The PR6453/110-101 is designed for vibration and position measurement in rotating machinery, especially for medium-sized shafts (≥25 mm diameter).

What is the measurement range of the sensor?
It can measure positional displacement up to ±1.0 mm and vibration in the range of 50 to 500 µm peak-to-peak.

What kind of thread connections does the PR6453 support?
It supports multiple thread sizes including M18x1, M20x1, M20x1.5, and M24x1 to accommodate diverse mounting requirements.

What is the sensitivity specification for this model?
The sensor features a sensitivity of 8 V/mm (or 203.2 mV/mil) with a tolerance of ±1.5%.

Can the PR6453 operate in high-temperature environments?
Yes, it can operate reliably in environments ranging from -35°C to +180°C.

Is this sensor certified for hazardous area use?
Yes, it complies with CE, CSA, and ATEX standards when used with compatible certified converters.

What is the weight and size of the sensing element?
The sensing tip is 12.5 mm in diameter and the total sensor weight is 0.8 kg.

Does the PR6453/110-101 support proximity to other sensors in dense installations?
Yes, Emerson’s eddy current sensors, including the PR6453, use flexible excitation frequencies to prevent cross-talk, enabling close proximity installation (as tight as 12 mm center-to-center).
