Product Details

Honeywell Experion PKS ( C200, C300 ) is one of the most important DCS system. Original New Control processor, Control Interface, Redundancy Module, I/O Link Interface Module, PM I/O, FTA, FSC Module, UCN Board are provided

Product Introduction

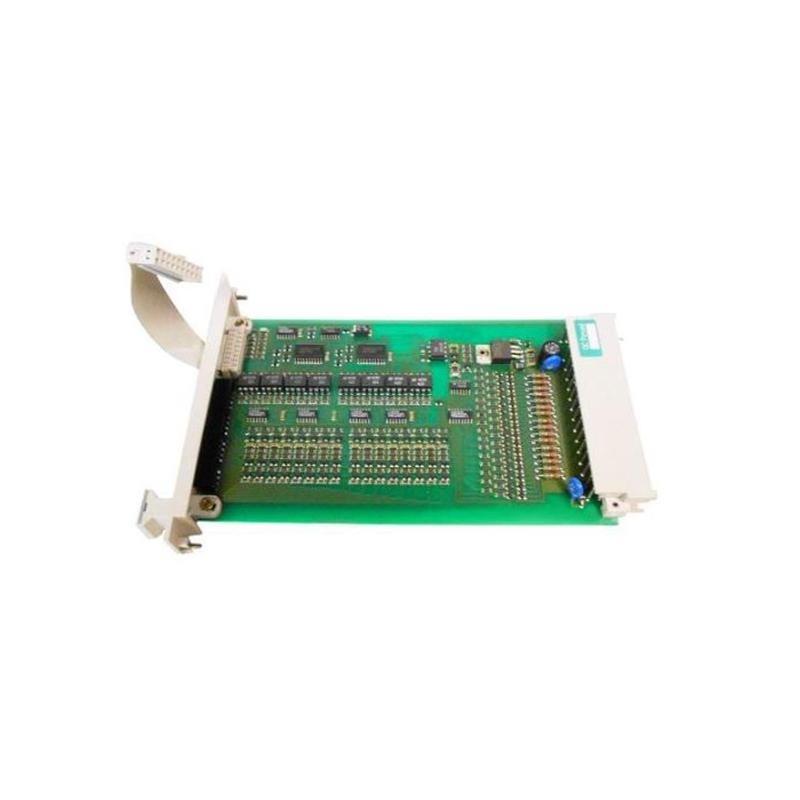

Honeywell 10209/2/1 Digital Output Module 12-Month Warranty

Brand：Honeywell

Item No.：10209/2/1

Product Type：Digital Output Module

Product Origin：USA

Dimensions：130 x 40 x 180 mm

Weight：0.65 kg

Payment：T/T, Western Union, Credit Card

Shipping Port：Xiamen, China

Lead Time：1-3 Days

Condition：Brand New And Original

Warranty：1 Year

Clear and reliable product source, support for third-party testing, complete after-sales support

Rich spot models, support for quick docking of procurement needs, welcome to inquire!

Product FAQs

We've listed some product-related issues below. If you need further information or technical support, please contact us via email or by submitting a form. We'll get back to you as soon as possible!

Frequently Asked Questions (FAQ)

How many output channels are available in the 10209/2/1 module?
The module provides 16 digital output channels.

Are the outputs protected against short circuits?
Yes, all outputs are solid-state source type and are short-circuit proof.

What is the maximum current each output can handle?
Each output can drive up to 100 mA.

Can inductive loads be connected directly to the outputs?
Yes, inductive loads such as relays can be connected. Each output includes a suppression diode for protection.

Does the module support fail-safe operation?
No, the outputs are not tested and therefore should not be used in fail-safe applications.

What happens to the outputs if the system watchdog is triggered?
All outputs are de-energized when the watchdog is activated or if the system shuts down.

What is the maximum allowable load capacitance per channel?
Each channel supports a maximum load capacitance of 1 microfarad (µF).

What are the required supply voltages for the module to operate?
The module requires 5 Vdc at 35 mA and 24 Vdc at 85 mA (excluding output load).
